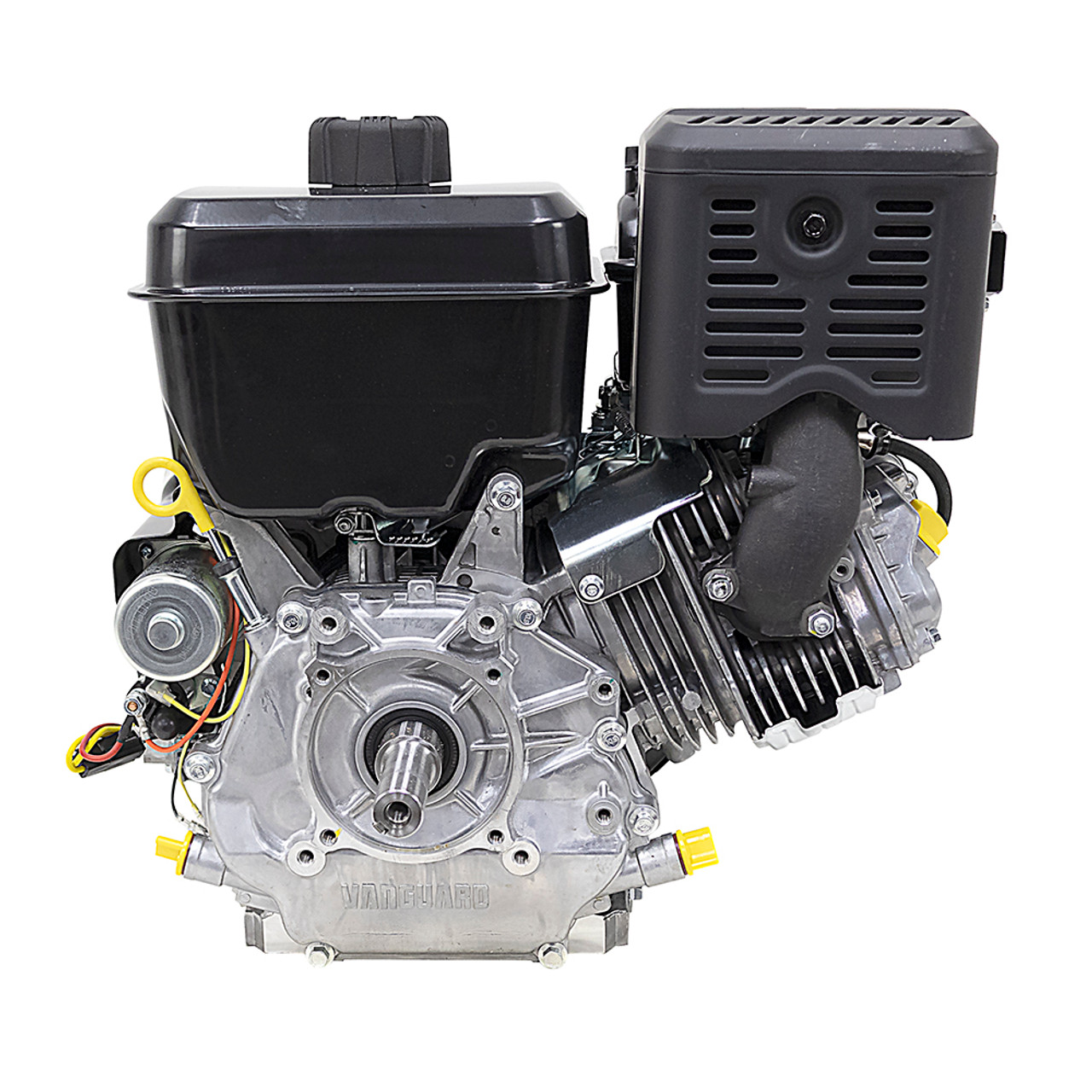

14 HP Briggs & Stratton Vanguard Series 25V3370012F1EG0001 Horizontal Shaft Electric and Recoil Start Engine [300363]

Product Description

14 HP HORIZONTAL SHAFT BRIGGS & STRATTON VANGUARD SERIES ELECTRIC/RECOIL START ENGINE
New. Briggs & Stratton Vanguard Series horizontal shaft engine. Features overhead valve, dual ball bearings, cyclonic air filter and flush mount muffle. When the throttle control is in the OFF or STOP position, the fuel valve is in the OFF position. Always move the throttle control to the OFF or STOP position when transporting equipment. The key does not stop the engine, the key only starts the engine.

SPECIFICATIONS

• Brand Briggs & Stratton
• Model 25V3370012F1EG0001
• Engine Family Vanguard Series
• Power 14 HP
• Bore/Stroke 88mm/67mm
• Disp. 408 cc
• Speed 3600 RPM
• Start Electric Start and Recoil
• Charging System 20 amp Alternator
• Fuel Tank 5.7 Liter
• Shaft 1" dia. x 3-21/32" long
• Base Mount Four hole on 4" x 7-3/4" centers
• Accessory Mount
   Inner 4 bolt on 5" B.C.
   Outer 4 bolt on 6.5" B.C.
• Size 14.3" x 18.1" x 17.9"
• Shpg. 144 lbs.
