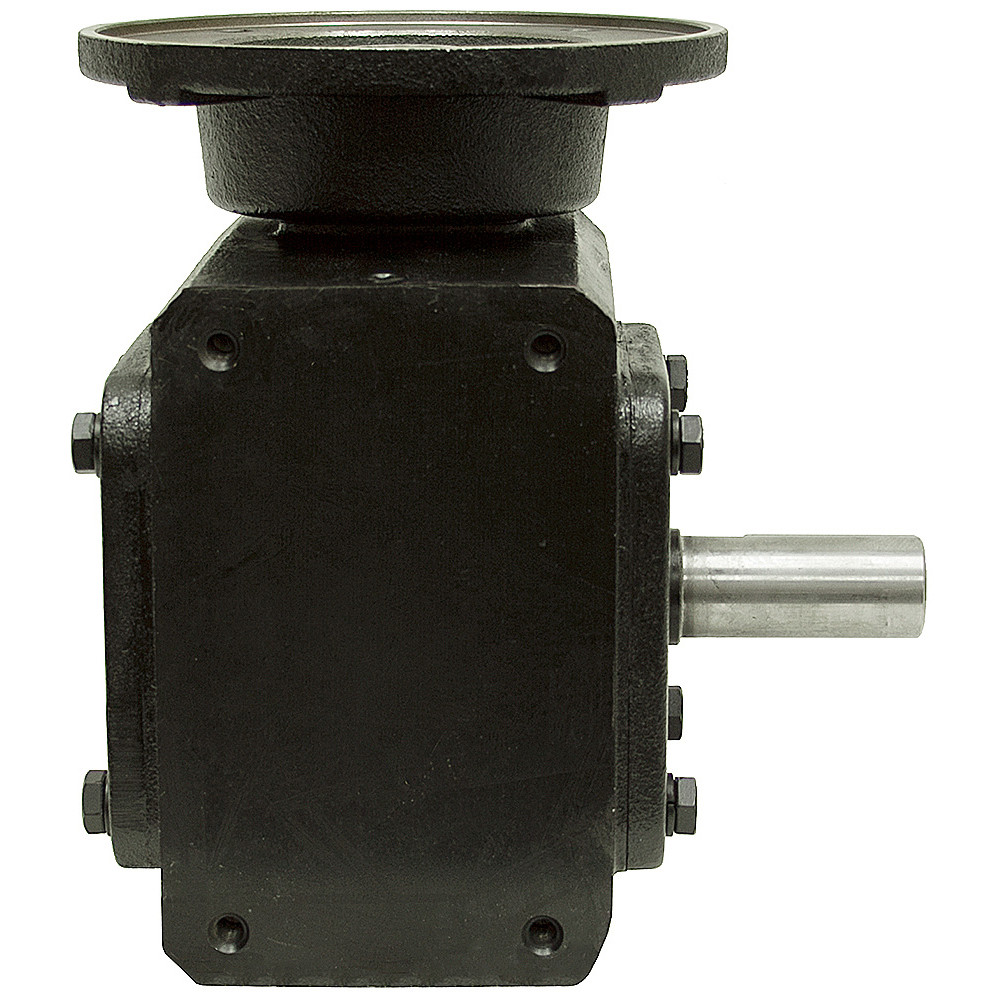

15:1 Right Angle Cast Iron Worm Gear Reducer 5.45 HP 182TC Right Output Worldwide HDRF-325-15-R-182TC [602156]

Product Description

15:1 RIGHT ANGLE WORM GEAR REDUCER
Brand new, WorldWide Electric right-angle worm gear reducer. Standard NEMA-C motor mounting flange. Cast iron housing. Interior oil channel directly guides and constantly lube bearings. Embedded double-lip oil seals. Tapered roller bearings on output and input shafts. Double bearings used on both shafts. A set of four tapped mounting holes on top and bottom of housing. Shipped filled with Mobil #SHC632 synthetic oil for the "A" position. (Refer to installation and maintenance manual for oil capacity for different mounting positions)

SPECIFICATIONS

• Brand WorldWide Electric
• Model Number HDRF-325-15-R-182TC
• Box Size 325 (3.25" Center of Input Shaft to Center of Output Shaft)
• Ratio 15:1
• Input Speed 1750 RPM max.
• Output Speed 120 RPM max.
• Mechanical HP (1.0 SF) Ratings
    Input HP 5.45 HP
    Output Torque 2611 in-lb.
    Output HP 4.65 HP
• Thermal Capacity Ratings
    Input HP 3.19 HP
    Output Torque 1527 in-lb.
    Output HP 2.72 HP
• Efficiency 85%
• Overhung Load 1200 lbs.
• Output Shaft Thrust Load 1100 lbs.
• Output Shaft Centerline Height 3.5"
• Motor Mount NEMA 182TC w/ four 0.551" dia. holes on 8.5" dia. B.C.
• Input Bore 1-1/8" keyed bore
• Output Type Right Hand Shaft
• Output Shaft 1-3/8" dia. x 3-1/4" keyed
• Mount Two sets of four 7/16"-14 tapped holes on 7-1/2" x 4" centers
• Size 12-9/16" x 9" x 11-1/4"
• Shpg. 89 lbs.
