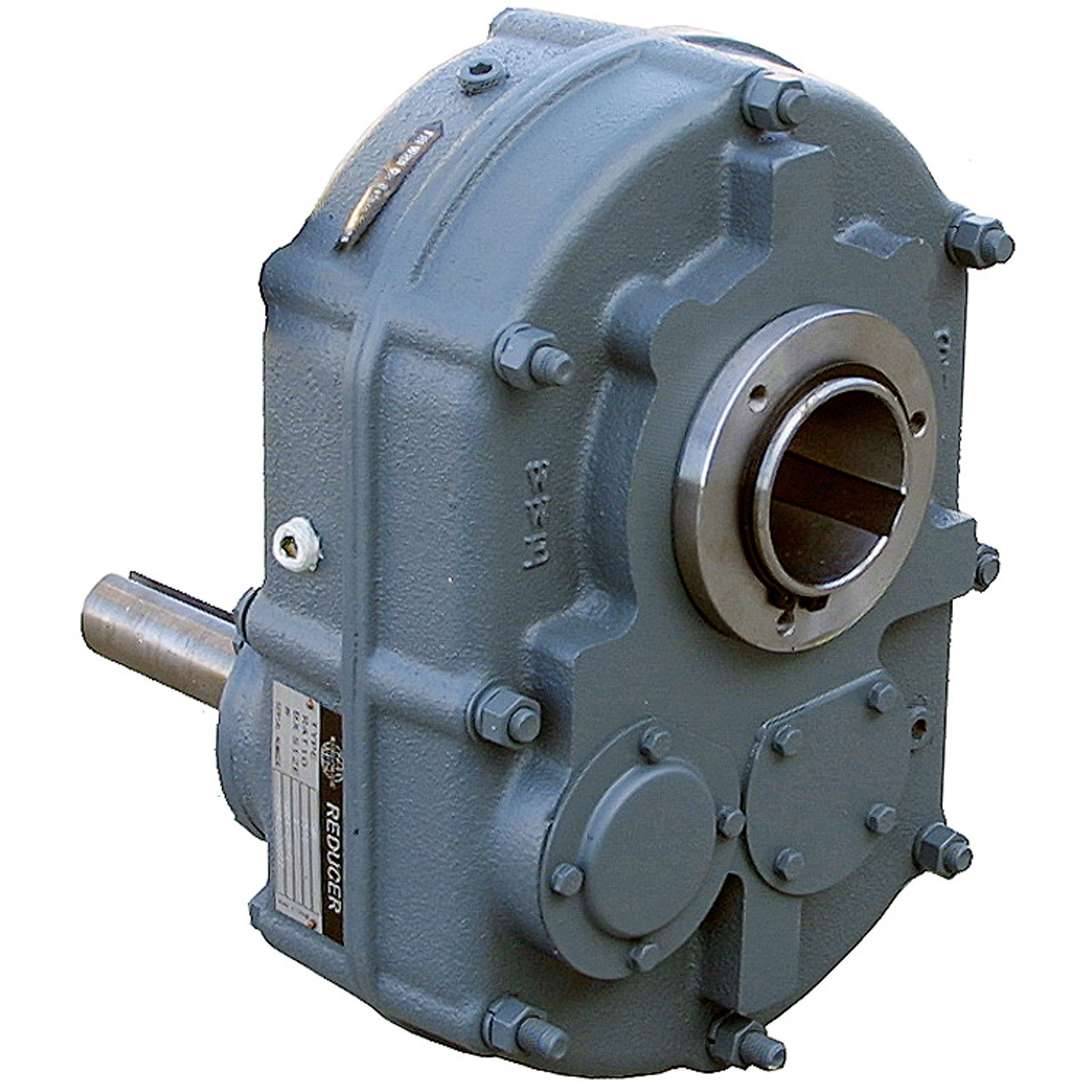

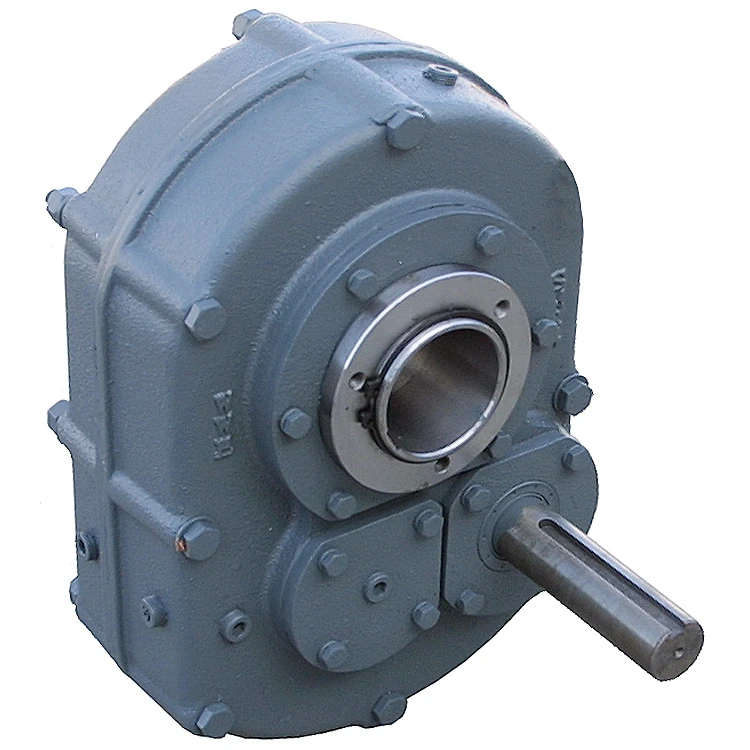

15:1 SHAFT MOUNT REDUCER
Brand new, WORLDWIDE ELECTRIC CORP shaft mount reducers. Cast iron housing, high grade case hardened steel gears and shafts. Double lip seals. Metal reinforced double lips, spring loaded oil seals. Premium quality ball and tapered bearings. Tapered bushing output (bushing not included). Torque arm included. Interchangeable with DODGE, HUB CITY, EDISON and BROWNING shaft mount reducers.
SPECIFICATIONS
- Brand WORLDWIDE ELECTRIC CORP
- Model SMR4-15/1
- Ratio 15:1
- Input Power see table below
- Output see table below
- Torque see table below
- Input Shaft 1-7/16" diam. x 5-9/16" w/ 3/8" keyway
- Output Bore see table below
- Size 10-3/8" x 15-1/8" x 8-3/16"
- Shpg. 175 lbs.
| Service Class I | Service Class II | Service Class III | ||||||
|---|---|---|---|---|---|---|---|---|
| HP | RPM | Torque | HP | RPM | Torque | HP | RPM | Torque |
| 5 | 18-26 | 16750-11596 in-lbs | 3 | 15-22 | 12060-8223 in-lbs | 3 | 21-32 | 8615-5653 in-lbs |
| 7.5 | 27-40 | 16750-11307 in-lbs | 5 | 25-37 | 12060-8149 in-lbs | 5 | 37-56 | 8149-5384 in-lbs |
| 10 | 37-56 | 16298-10768 in-lbs | 7.5 | 39-59 | 11596-7665 in-lbs | 7.5 | 57-93 | 7943-4863 in-lbs |
| 15 | 57-93 | 15869-9726 in-lbs | 10 | 53-84 | 11378-7179 in-lbs | 10 | 79-141 | 7633-4277 in-lbs |
| 20 | 79-140 | 15266-8615 in-lbs | 15 | 83-140 | 1098-6461 in-lbs | - | - | - |
| 25 | 102-140 | 14780-10768 in-lbs | - | - | - | - | - | - |
| BORE | ITEM # | BORE | ITEM # |
| 1-15/16" | 602633 | 2" | 602634 |
| 2-3/16" | 602635 | 2-1/4" | 602636 |
| 2-7/16" | 602637 |
| MOTOR MOUNT | 602611 |
| BACKSTOP ASSEMBLY | 602616 |
| BELT GUARD | 602653 |
