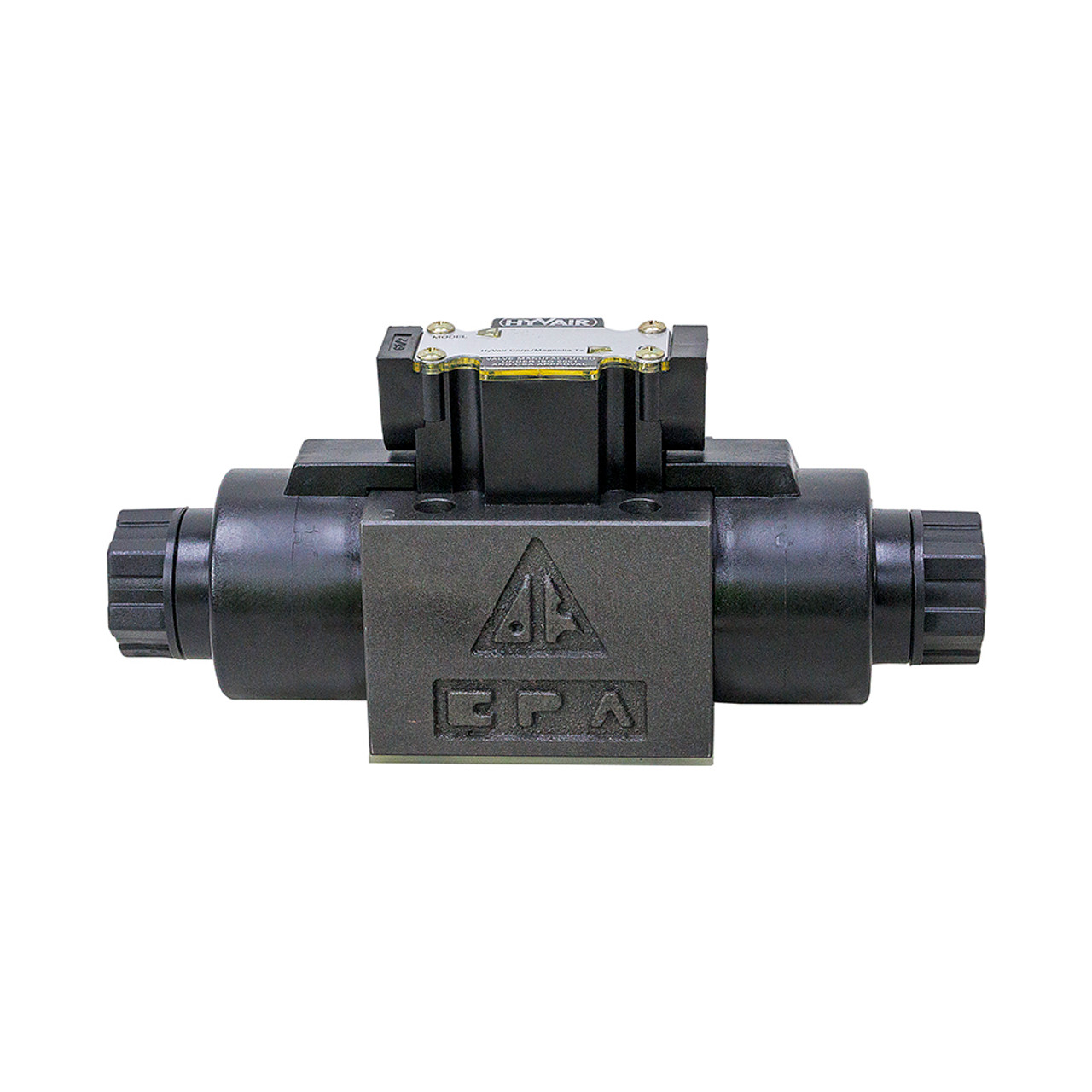

230 Volt AC 18.5 GPM Double-Acting Double Solenoid Valve Hyvair D05S-2C-230A-35 [904466]

Product Description

230 VOLT AC HYDRAULIC DOUBLE SOLENOID VALVE
New Hyvair D05S-2C-230A-35 230 volt AC, electrical box type with indicator lights, 3 position spring center, double solenoid hydraulic valve. Ports A & B blocked in neutral, P to T open in neutral. Four 1/4"-20 x 1-1/2" socket head screws included for mounting.

SPECIFICATIONS

• Brand Hyvair
• Model Number D05S-2C-230A-35
• Series 35
• Open Center
• Voltage 230 Volt AC
• Starting Current 2.7 Amps @ 50 Hz, 2.5 Amps @ 60 Hz
• Holding Current 0.52 Amps @ 50 Hz, 0.48 Amps @ 60 Hz
• Holding Power 36 W @ 50 Hz, 32 W @ 60 Hz
• Flow 18.5 GPM
• Pressure 3600 PSI
• Mounting D05 Subplate
• Size 9-1/4" x 3" x 4-1/4"
• Shpg 13 lbs.
