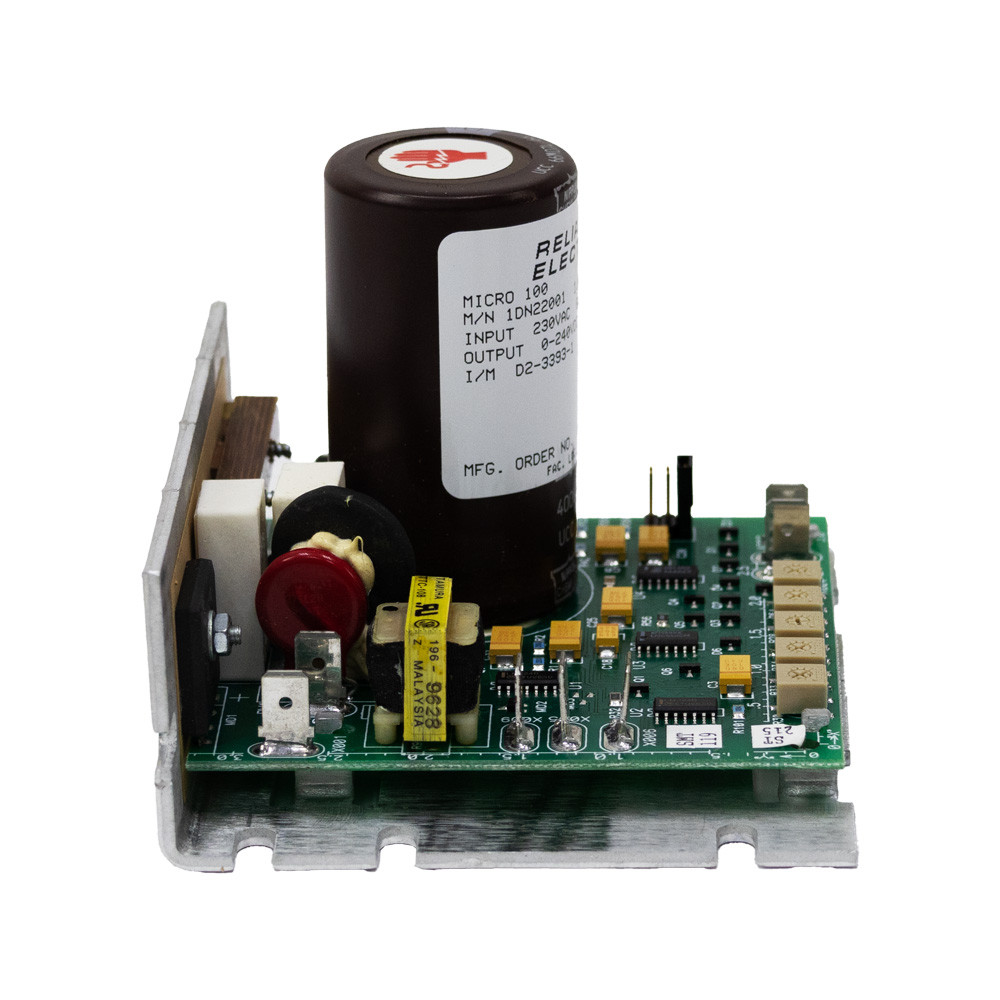

3/4 to 1 HP Motor Drive Speed Control Reliance Electric 1DN22001 [500230]

Product Description

3/4 TO 1 HP DC MOTOR DRIVE SPEED CONTROL
New, Reliance Electric 1DN22001 Micro 100, 3/4 to 1 HP @ 230 Volt AC open chassis motor drive. Needs to be mounted in a protective enclosure. Converts 230 Volt AC power to adjustable DC power for controlling the speed of DC motors. Designed for use with an external 0 to 10 Volt DC speed reference, may also be operated with a user-supplied potentiometer.

SPECIFICATIONS

• Brand Reliance Electric
• Model Number 1DN22001
• Series Micro 100
• Rated Horsepower 3/4 to 1 HP
• Input Voltage 230 Volt AC 1PH 50/60 Hz
• Input Amperage 6.5 Amps
• Output Voltage 240 Volt DC
• Output Amperage 4.5 Amps
• Size 3.02" x 4.29" x 3.62"
• Shpg 2 lbs.
