Product Description

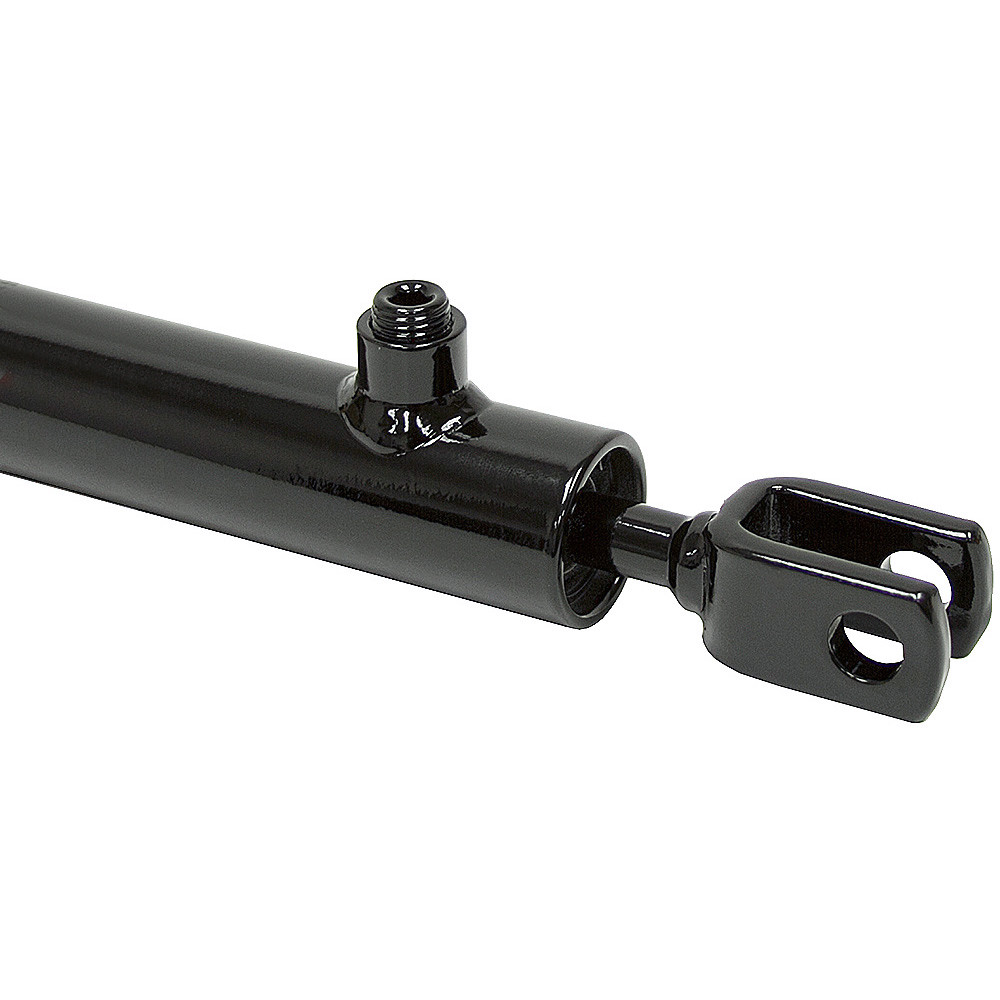

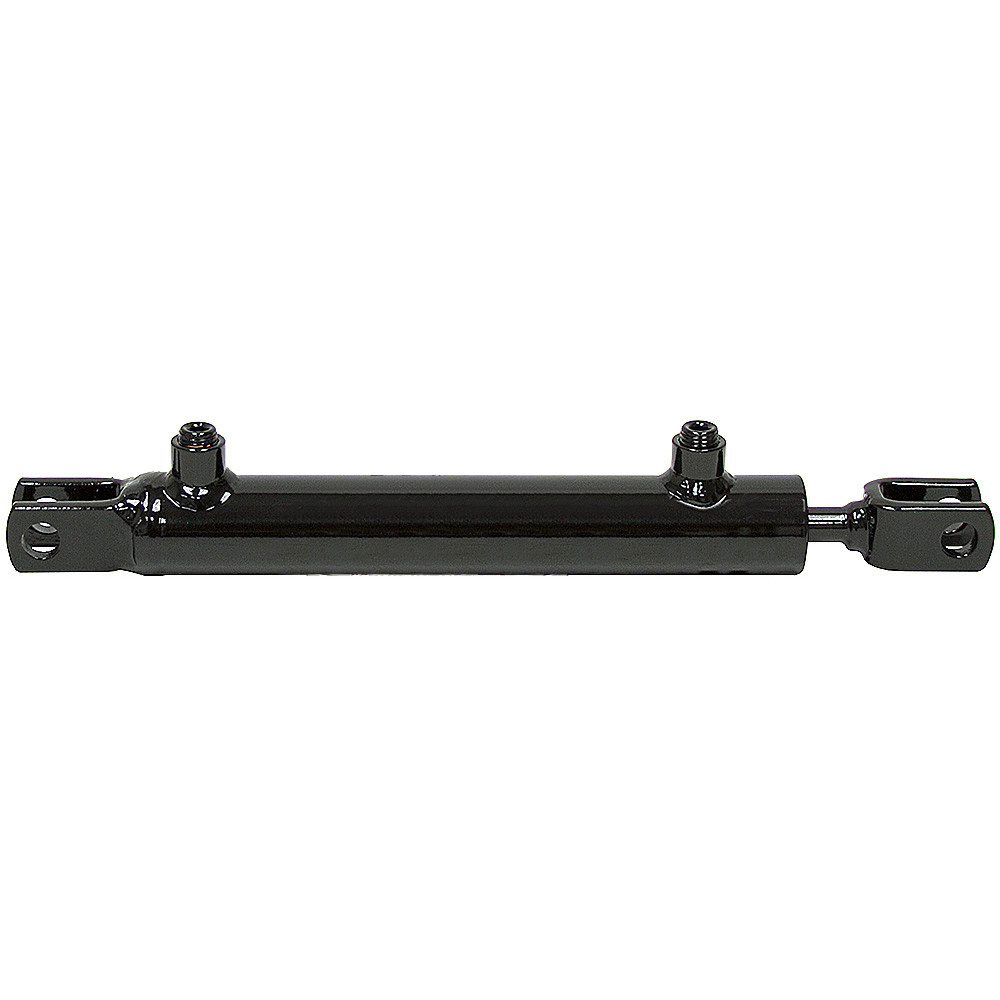

1" x 12" x 0.5" DOUBLE ACTING HYDRAULIC CYLINDER
Brand new. Welded cylinders with wire-lock gland retainer. For agricultural and industrial applications. Small sizes are ideal for remote control of valves, spouts, etc.
| SPECIFICATIONS | |
|
|
| END MOUNTINGS | |
|
|
| California Residents |
|
WARNING: Cancer and Reproductive Harm www.P65Warnings.ca.gov |
Product Videos
Custom Field
Prop65 true
Legacy Part Number 9-1649-12
PDF Page Catalog298-57.pdf
Dimensional Diagram dr9-1649-12.pdf
Badges made-in-usa,regular-stock
Base End Clevis
Base End Pin Size 1/2"
Bore Range1 Up to 1.9"
Construction Type Welded
Max PSI Up to 2500 PSI
Ports NPT
Retracted Length 18" - 23.9"
Rod Dia 0.5"
Rod End Clevis
Rod End Pin Size 1/2"
Stroke 12
Stroke Range1 12" - 17.9"
