  • 1x8x0.75 Single Acting Hydraulic Cylinder with Hand/Foot Pump Parker P/N BB269147A0 [902427]
  • 1x8x0.75 Single Acting Hydraulic Cylinder with Hand/Foot Pump Parker P/N BB269147A0 [902427]
  • 1x8x0.75 Single Acting Hydraulic Cylinder with Hand/Foot Pump Parker P/N BB269147A0 [902427]
  • 1x8x0.75 Single Acting Hydraulic Cylinder with Hand/Foot Pump Parker P/N BB269147A0 [902427]
  • 1x8x0.75 Single Acting Hydraulic Cylinder with Hand/Foot Pump Parker P/N BB269147A0 [902427]

    • 1x8x0.75 Single Acting Hydraulic Cylinder with Hand/Foot Pump Parker P/N BB269147A0 [902427]

    Item Number: 902427

    Legacy Part Number: 9-8026

    (No reviews yet) Write a Review

    In Stock

    Surplus Item
    $89.99
    Adding to cart… category.add_cart_announcement
    Catalog Page This item is on page 63 of our current catalog

    Product Description

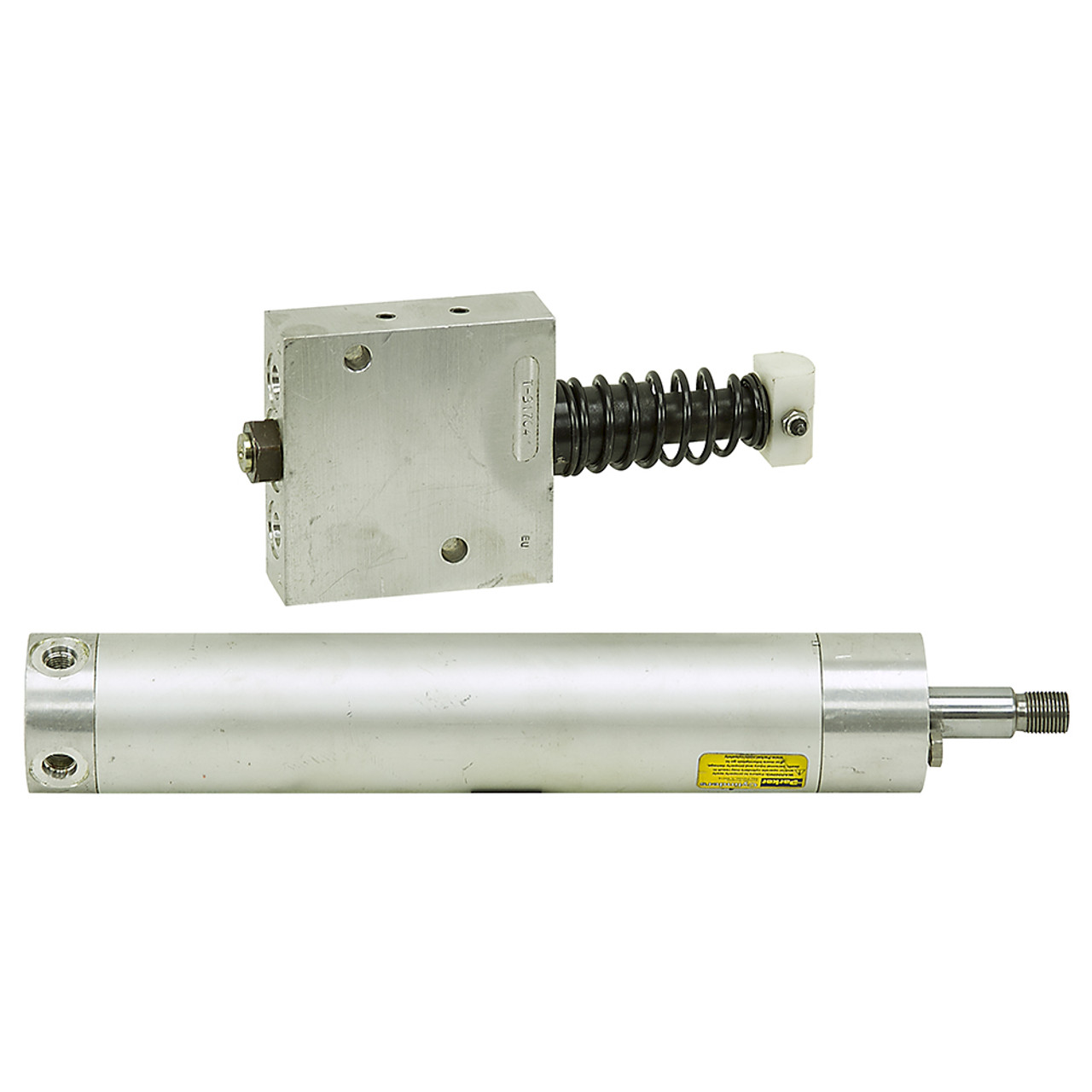

    1" x 8" x 0.75" SA HYDRAULIC CYLINDER W/ PUMP
    New. PARKER CYLINDER DIVISION P/N BB269147AO custom, welded cylinder with thread-in gland cap. Originally intended for use in barber and hairdressing chairs. Both ports at base end of cylinder. Extend port has cartridge valve marked "Parker Mexico KR CV081P65," not common with retract port. 1/8" NPT breather in rod end gland.

    Spring assembly mounted to cartridge block acts as pump to extend and retract cylinder. Full extension can be achieved in 15 pumps. Retract stroke is achieved by pumping spring assembly past its detented position and applying pressure to rod, can occur at any point along extension.

    Note: Customer must fill reservoir with good quality hydraulic fluid via the 1/8" NPT breather orifice, and bleed the system of air, before operation.

    CYLINDER SPECIFICATIONS
    • Single Acting
    • Bore x Stroke 1" x 8"
    • Barrel Thickness 1/8"
    • Pressure 925 PSI max.
    • Rod Dia. 3/4"
    • Ports SAE 4
    • Retracted Length 14-1/2"
    • Shpg. 12 lbs.
    END MOUNTINGS
    • Rod End Threaded
    • Thread size-Pitch 5/8"-18
    • Thread Length 5/8"
    • Base End Four Tapped Mounting Holes
    • Thread size-Pitch 5/16"-18"
    • Thread Depth 3/4"
    • Bolt circle 5/8" B.C.

    PUMP SPECIFICATIONS
    • Manifold Block and Pump Assembly
    • Block Dimensions 3" x 3" x 1-1/4"
    • Spring Assembly Dimensions 3-1/4" x 1-1/2" x 1-3/8"
    • Mount Two 3/8"-16 tapped holes on 3-3/16" centers
    • Ball Checks Two in SAE 6 cavities, Spring-loaded
    • Ports SAE 4
    • Check Valve PARKER Mexico KR CV081P65
    • Ball Checks Two in SAE 6 cavities, Spring-loaded
    • End Attachment 1" wide tang w/ 1/4" pin holes

    Product Videos

    Custom Field

    Prop65 true
    Legacy Part Number 9-8026
    PDF Page Catalog298-63.pdf
    Badges surplus-item,last-one
    Base End Other
    Bore Range1 Up to 1.9''
    Construction Type Welded
    Max PSI Up to 2500 PSI
    Ports SAE
    Retracted Length 12'' - 17.9''
    Rod Dia 0.75''
    Rod End Threaded
    Stroke 9
    Stroke Range1 6'' - 11.9''
