Product Description

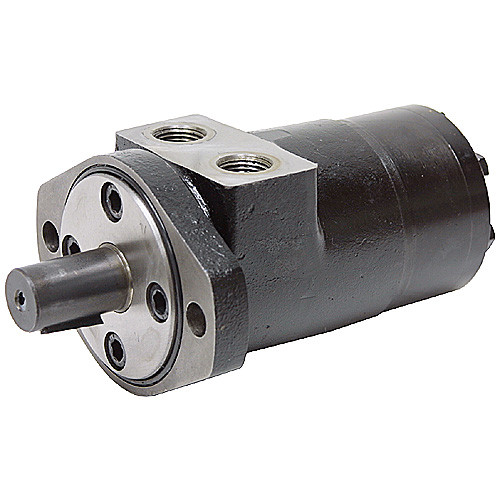

2.2 cu in DYNAMIC BMPH36H2KP HYD MOTORBrand new DYNAMIC BMPH series hydraulic motor. Gerotor power element. Interchangeable with the following motor lines: Dynamic BMPH, Danfoss DH, White RS, Parker/Ross MG/TB.
SPECIFICATIONS
- Disp. 2.2 cu. in. / rev.
- Motor Type Gerotor
- Pressure:
1813 PSI cont.
2393 PSI int. - Torque:
487 in-lbs. cont.
673 in-lbs. int. - Speed:
1500 RPM cont.
1650 RPM int. - Flow:
14.5 GPM cont.
15.8 GPM int. - Rotation Reversible
- Mount 2 bolt SAE A
- Shaft 1" dia. x 1.57" w/ 1/4" woodruff key, tapped 1/4"-20
- Ports 1/2" NPT
- Case Drain SAE 4
- Size 5-1/2" x 5-1/12" x 3-1/4"
- Shpg. 15 lbs.
Product Videos
Custom Field
Legacy Part Number 9-7077-36
PDF Page Catalog298-76.pdf
Badges regular-stock
Displacement 2.2
Displacement Range Up to 4.9 cu in/rev
Mount1 2 bolt SAE A
Ports NPT
Shaft Keyed
