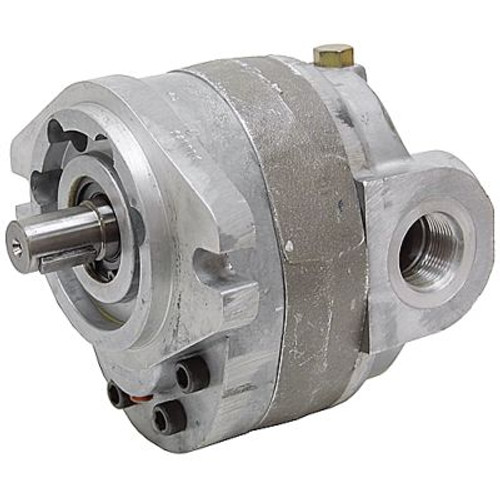

2.74 cu in Cross Hydraulic Motor 50MH27DBCSC 300093 [901479]

Product Description

CROSS HIGH SPEED HYDRAULIC MOTOR

Brand new, Cross hydraulic gear motor. Model 50MH27DBCSC. Pressure balanced loading plates for high efficiency. Aluminum body for good heat dissipation. Pressure lubricated Teflon impregnated sleeve bearings. Internal check valves eliminate need for case drain at shaft seal pressures under 250 PSI.

SPECIFICATIONS

• Brand Cross Mfg.
• Model 50MH27DBCSC
• Cross Item # 300093
• Displacment 2.74 cu. in. / rev.
• Pressure 3000 PSI max.
• Speed 3000 RPM max. continuous
• Flow 23.75 GPM for 1800 RPM
• Power 28 HP at 1800 RPM, 2500 PSI
• Torque 1050 in-lbs. at 2500 PSI
• Rotation Reversible
• Mount SAE B 2 bolt
• Shaft 7/8" dia. x 1-5/8" long with 1/4" wide keyway
• Ports SAE 16
• Drain Port SAE 5
• Size 6-3/16" x 6-7/8" x 6-1/2"
• Shpg. 19 lbs.
