Product Description

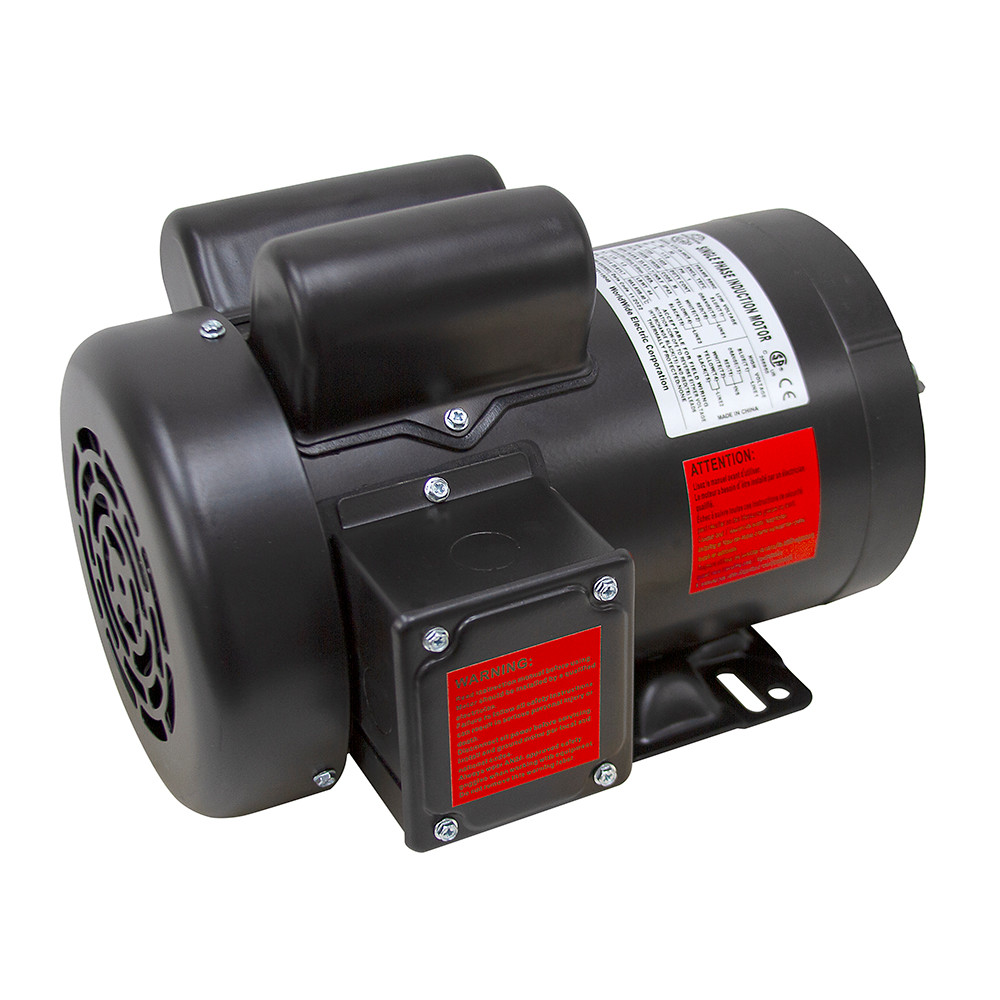

2 HP 1725 RPM 115/230 VAC BASE AND FACE MOUNT MOTORBrand new, WORLDWIDE NT2-18-56CB, general purpose motor for use in blowers, pumps, conveyors, and many other diverse applications. Totally Enclosed Fan Cooled (TEFC) enclosures. Capacitor start/Capcitor run motor for reduced amperage and high torque.
SPECIFICATIONS
- Power 2 HP
- Voltage 115/230 AC
- Phase 1
- Frequency 60 Hz
- Amperage 19.6/9.8 Amps
- Speed 1725 RPM
- Rotation Reversible
- Service Factor 1.15
- Bearings Ball
- Thermal Overload Protection None
- Enclosure TEFC
- Duty Continuous
- Frame 56HC
- Base Mount Six 1-1/4" x 5/16" elliptical slots on 2" to 5" x 4-7/8" to 5-7/8" centers
- Face Mount Four 3/8"-16 threaded holes on 5-7/8" B.C., 4-1/2" pilot
- Shaft 5/8" dia. x 1-7/8" overall length w/ 3/16" wide x 1-3/4" long keyway
- Size 13-1/2" x 8-3/4" x 8-3/4"
- Shpg. 50 lbs.
| California Residents |
|
WARNING: Cancer and Reproductive Harm www.P65Warnings.ca.gov |
Product Videos
Custom Field
Prop65 true
Legacy Part Number 10-3452
PDF Page Catalog298-135.pdf
Badges regular-stock
Enclosure TEFC
Frame 56HC
HP 2
RPM 1725
Rotation Reversible
Voltage 115/230 Volt AC
