Product Description
2 HP 3520 RPM 3PH MOTORNew, WEG electric motor model# W01-TE01C0X0X.
SPECIFICATIONS
- Power 2 HP
- Voltage 230/460 AC
- Phase 3
- Frequency 60 Hz
- Amperage 4.94/2.47 Amps
- Speed 3520 RPM
- Rotation Reversible
- Service Factor 1.15
- Enclosure TEFC
- Duty Continuous
- Frame 56J
- Face Mount
Four 3/8"-16 holes on 5-7/8" Bolt Circle - Rigid Base Mount
Four 0.34" diam. holes on 4-7/8" x 3" centers - Shaft 5/8" dia. x 1-3/4" w/ 7/16-20 thread 11/16" long
- Size 14-1/4" x 9" x 7-1/4"
- Shpg. 43 lbs.
Product Videos
Custom Field
Legacy Part Number 10-3307
Badges surplus-item,last-one
Enclosure TEFC
Frame 56J
HP 2
RPM 3450
Voltage 230/460 Volt AC
![2 HP 3520 RPM 230/460 Volt AC 3Ph WEG Motor W01-TE01C0X0X [501406]](https://cdn11.bigcommerce.com/s-3nwcvn3gzw/images/stencil/500x659/products/10412/98583/10-3307__59115.1762805962.jpg?c=1 "2 HP 3520 RPM 230/460 Volt AC 3Ph WEG Motor W01-TE01C0X0X [501406]")
![1 HP 3510 RPM 230/460 Volt AC 3Ph WEG Motor W01-TE01C0X0X [501404]](https://cdn11.bigcommerce.com/s-3nwcvn3gzw/images/stencil/500x659/products/10852/98577/10-3305__82093.1762805960.jpg?c=1 "1 HP 3510 RPM 230/460 Volt AC 3Ph WEG Motor W01-TE01C0X0X [501404]")
![1 HP 3510 RPM 230/460 Volt AC 3Ph WEG Motor W01-TE01C0X0X [501404]](https://cdn11.bigcommerce.com/s-3nwcvn3gzw/images/stencil/500x659/products/10852/98578/10-3305_1__55170.1762805960.jpg?c=1 "1 HP 3510 RPM 230/460 Volt AC 3Ph WEG Motor W01-TE01C0X0X [501404]")
![1.5 HP 3520 RPM 230/460 Volt AC 3Ph WEG Motor [501405]](https://cdn11.bigcommerce.com/s-3nwcvn3gzw/images/stencil/500x659/products/10871/98580/10-3306__77981.1762805961.jpg?c=1 "1.5 HP 3520 RPM 230/460 Volt AC 3Ph WEG Motor [501405]")
![1.5 HP 3520 RPM 230/460 Volt AC 3Ph WEG Motor [501405]](https://cdn11.bigcommerce.com/s-3nwcvn3gzw/images/stencil/500x659/products/10871/98581/10-3306_1__88023.1762805961.jpg?c=1 "1.5 HP 3520 RPM 230/460 Volt AC 3Ph WEG Motor [501405]")
![3/4 HP 3455 RPM 208-230/460 Volt AC 3PH WEG W01.TO01C0X0X Motor [501495]](https://cdn11.bigcommerce.com/s-3nwcvn3gzw/images/stencil/500x659/products/12462/98770/10-3397__75480.1762806008.jpg?c=1 "3/4 HP 3455 RPM 208-230/460 Volt AC 3PH WEG W01.TO01C0X0X Motor [501495]")
![3/4 HP 3455 RPM 208-230/460 Volt AC 3PH WEG W01.TO01C0X0X Motor [501495]](https://cdn11.bigcommerce.com/s-3nwcvn3gzw/images/stencil/500x659/products/12462/98771/10-3397_1__05951.1762806008.jpg?c=1 "3/4 HP 3455 RPM 208-230/460 Volt AC 3PH WEG W01.TO01C0X0X Motor [501495]")

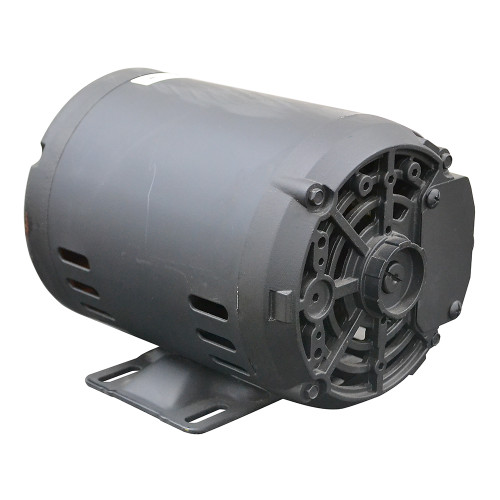

![1/2 HP 3475 RPM 208-230/460 Volt AC 3Ph WEG Motor TO0C040J0000100734 [501401]](https://cdn11.bigcommerce.com/s-3nwcvn3gzw/images/stencil/500x659/products/10738/98568/10-3292__72968.1762805958.jpg?c=1 "1/2 HP 3475 RPM 208-230/460 Volt AC 3Ph WEG Motor TO0C040J0000100734 [501401]")
