Product Description

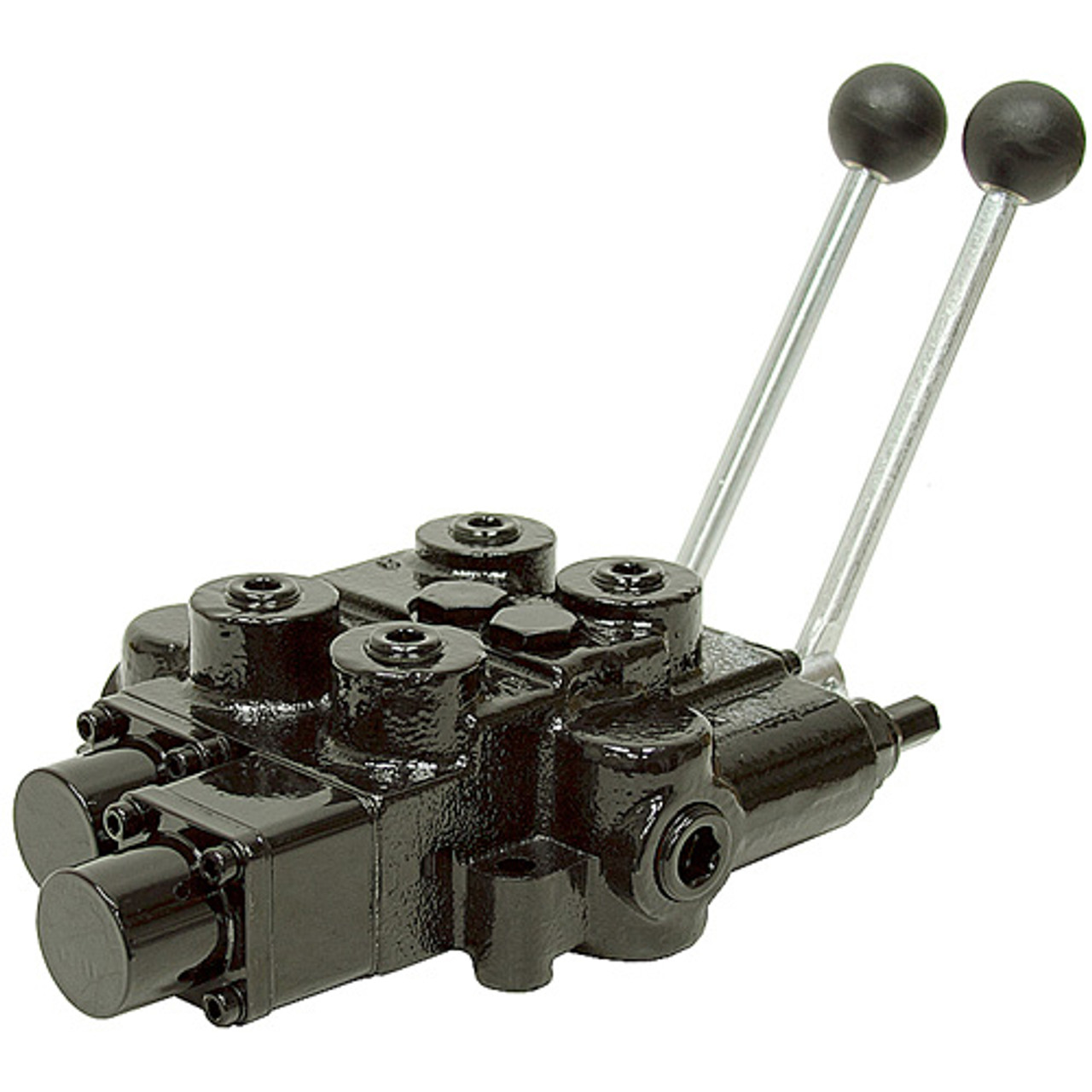

2 SPOOL 25 GPM PRINCE RD526GCGA5A4B1 OC VALVE W/FLOATBrand new PRINCE. Hydraulic control valve for operating double acting cylinders. Monoblock gray cast iron body. Hard chrome plated spools. Load checks. Convertible to power beyond or closed center by changing conversion plug (see related items above).(click here to see the same valve with NPT ports)
SPECIFICATIONS
- Open Center
- Spools Two
- Flow 25 GPM max.
- Pressure 3000 PSI max.
- Relief Valve factory set at 2000 PSI Adjustable 1500-3000 PSI
- In/Out Ports SAE 12
- Work Ports SAE 10
- Mount 3 holes thru body
- Size 11" x 7-1/2" x 3-1/4"
- Shpg. 25 lbs.
Spool 1 Double acting spring centered with detented float position.
Spool 2 Double acting spring centered
| California Residents |
|
WARNING: Cancer and Reproductive Harm www.P65Warnings.ca.gov |
Product Videos
Custom Field
Prop65 true
Legacy Part Number 9-7875-F
PDF Page Catalog298-30.pdf
Badges made-in-usa,regular-stock
Max Flow 17 to 30 GPM
Spool Type Cylinder
Spools 2
Valve Type Open Center
