20:1 Right Angle Cast Iron Worm Gear Reducer 1.57 HP Right Output Worldwide HDRS-206-20-R [601939]

Product Description

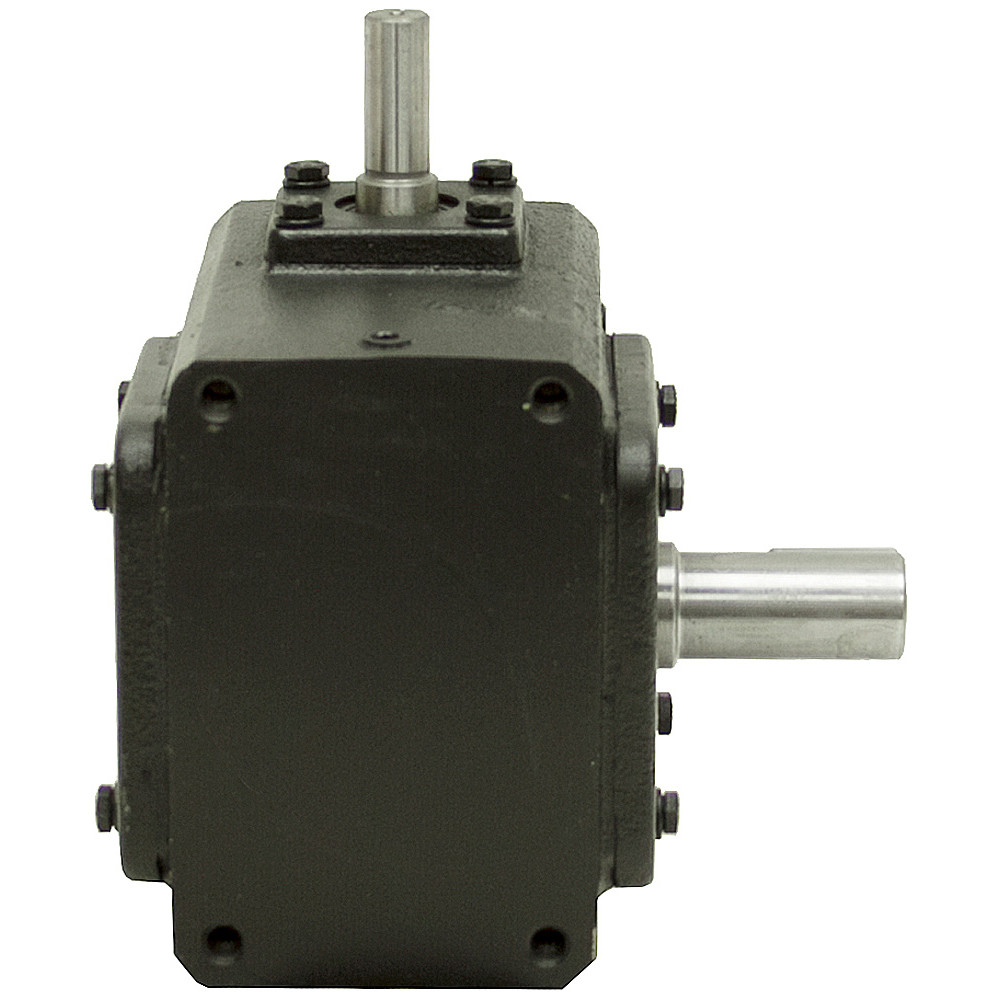

20:1 RIGHT ANGLE WORM GEAR REDUCER
Brand new, WorldWide Electric right-angle worm gear reducer. Cast iron housing. Interior oil channel directly guides and constantly lube bearings. Embedded double-lip oil seals. Tapered roller bearings on output and input shafts. Double bearings used on both shafts. A set of four tapped mounting holes on top and bottom of housing. Shipped filled with Mobil #SHC632 synthetic oil for the "A" position.(Refer to installation and maintenance manual for oil capacity for different mounting positions)

SPECIFICATIONS

• Brand WorldWide Electric
• Model Number HDRS-206-20-R
• Box Size 206 (2.06" Center of Input Shaft to Center of Output Shaft)
• Ratio 20:1
• Input Speed 1750 RPM max.
• Output Speed 87 RPM max.
• Mechanical HP (1.0 SF) Ratings
    Input HP 1.57 HP
    Output Torque 914 in-lb.
    Output HP 1.29 HP
• Thermal Capacity Ratings
    Input HP 1.17 HP
    Output Torque 681 in-lb.
    Output HP 0.96 HP
• Efficiency 82%
• Overhung Load 700 lbs.
• Output Shaft Thrust Load 750 lbs.
• Output Centerline Height 2.281"
• Input Shaft 5/8" dia. x 1-9/16" keyed
• Output Type Right Hand Shaft
• Output Shaft 1" dia. x 2-3/32" keyed
• Mount Two sets of four 3/8"-16 tapped holes on 5" x 2-7/8" centers
• Size 7-1/8" x 5-3/16" x 6-3/8"
• Shpg. 28 lbs.
