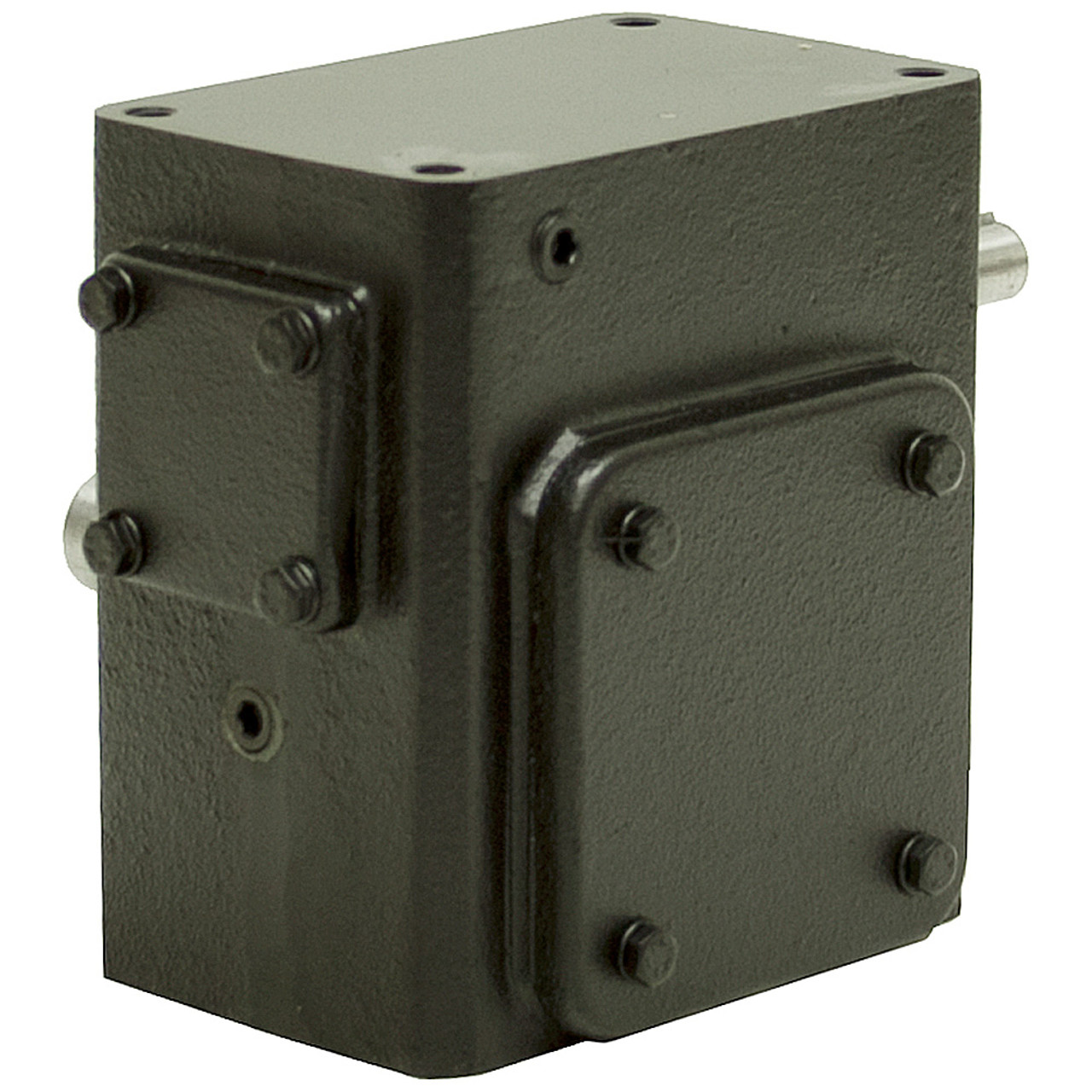

20:1 Right Angle Cast Iron Worm Gear Reducer 2.06 HP Right Output Worldwide HDRS-237-20-R [601966]

Product Description

20:1 RIGHT ANGLE WORM GEAR REDUCER
Brand new, WorldWide Electric right-angle worm gear reducer. Cast iron housing. Interior oil channel directly guides and constantly lube bearings. Embedded double-lip oil seals. Tapered roller bearings on output and input shafts. Double bearings used on both shafts. A set of four tapped mounting holes on top and bottom of housing. Shipped filled with Mobil #SHC632 synthetic oil for the "A" position.(Refer to installation and maintenance manual for oil capacity for different mounting positions)

SPECIFICATIONS

• Brand WorldWide Electric
• Model Number HDRS-237-20-R
• Box Size 237 (2.37" Center of Input Shaft to Center of Output Shaft)
• Ratio 20:1
• Input Speed 1750 RPM max.
• Output Speed 87 RPM max.
• Mechanical HP (1.0 SF) Ratings
    Input HP 2.06 HP
    Output Torque 1195 in-lb.
    Output HP 1.69 HP
• Thermal Capacity Ratings
    Input HP 1.36 HP
    Output Torque 791 in-lb.
    Output HP 1.12 HP
• Efficiency 82%
• Overhung Load 900 lbs.
• Output Shaft Thrust Load 900 lbs.
• Output Centerline Height 2.5"
• Input Shaft 3/4" dia. x 2" keyed
• Output Type Right Hand Shaft
• Output Shaft 1-1/8" dia. x 2-3/8" keyed
• Mount Two sets of four 3/8"-16 tapped holes on 5" x 2-7/8" centers
• Size 7-11/16" x 5-5/8" x 7"
• Shpg. 37 lbs.
