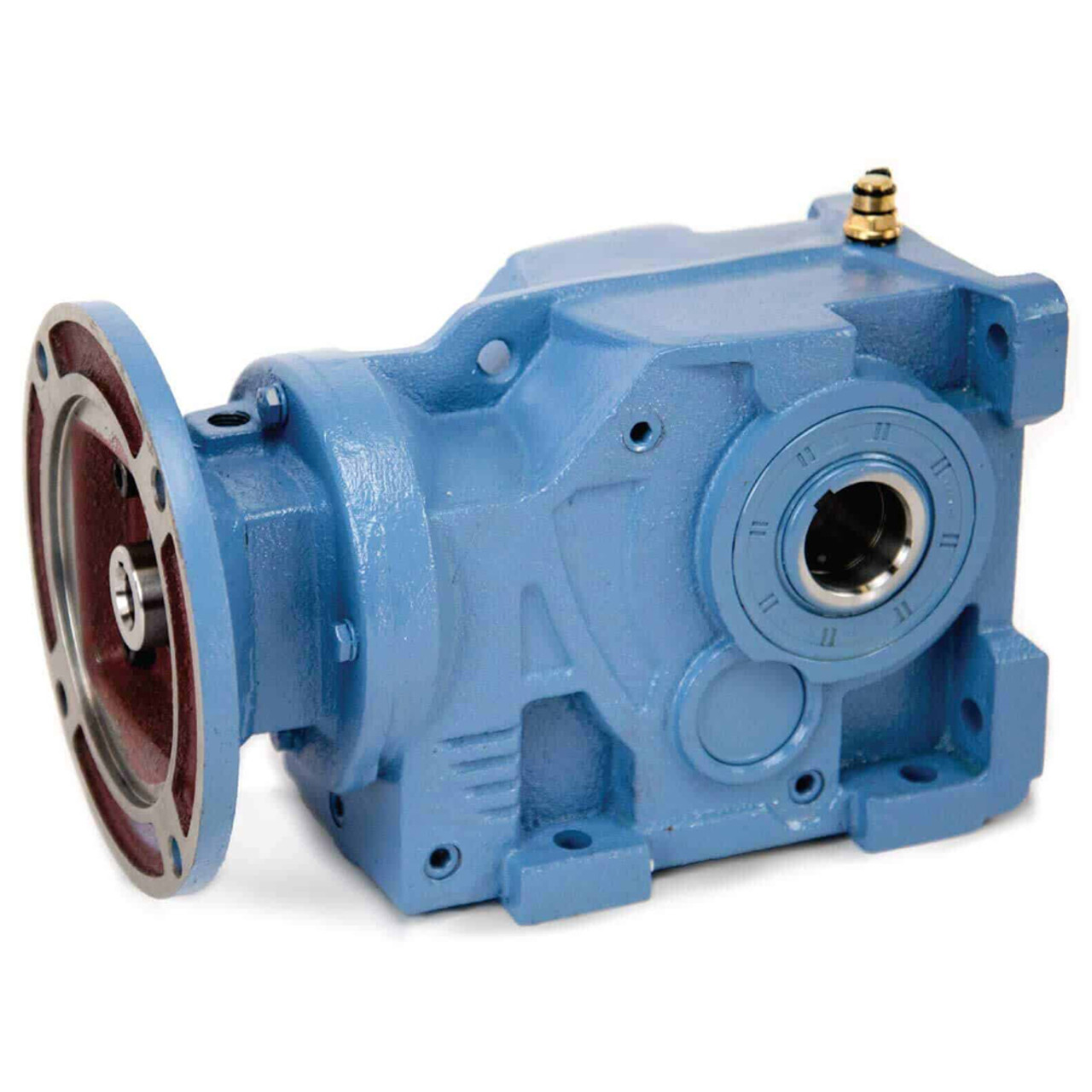

20.65:1 Size 47 3.97 HP Helical Bevel Gear Reducer Worldwide KHN47-20/1-H-143/145TC [603377]

Product Description

20.65:1 Size 47 3.97 HP Helical Bevel Gear Reducer WWE KHN47-20/1-H-143/5TC
Brand new, World Wide Electric helical bevel gear reducer. Cast iron housing. Gearbox flanges are designed to accept NEMA C-Face electric motors. Foot mounts for horizontal or vertical mounting, hollow output bore. Ball bearings on the input and output shafts and precision ground gears for better rotation and quieter operation. Pre-filled with HD320 mineral oil. Single shaft and double shaft output kits available (sold separately).

SPECIFICATIONS

• Manufacturer World Wide Electric
• Model Number KHN47-20/1-H-143/5TC
• Box Size 47
• Gear Stages 3
• Nominal Ratio 20:1
• Actual Ratio 20.65:1
• Output RPM @ 1750 RPM Input 85 RPM
• Input HP 3.97 HP max.
• Output Torque 2675 in.-lbs. max.
• Over-Hung Load 690 lbs. max.
• Motor Mount 143/5TC
• Output Bore 1-3/8" Hollow Keyed, 1/4" Keyway
• Horizontal Foot Mount Four 0.43" holes on 5.12" x 4.72" centers
• Vertical Foot Mount Four 0.43" holes on 5.12" x 4.72" centers
• Cross Reference SEW K47
• Size 11.95" x 6.5" x 7.45"
• Shpg. 53 lbs.
