Product Description

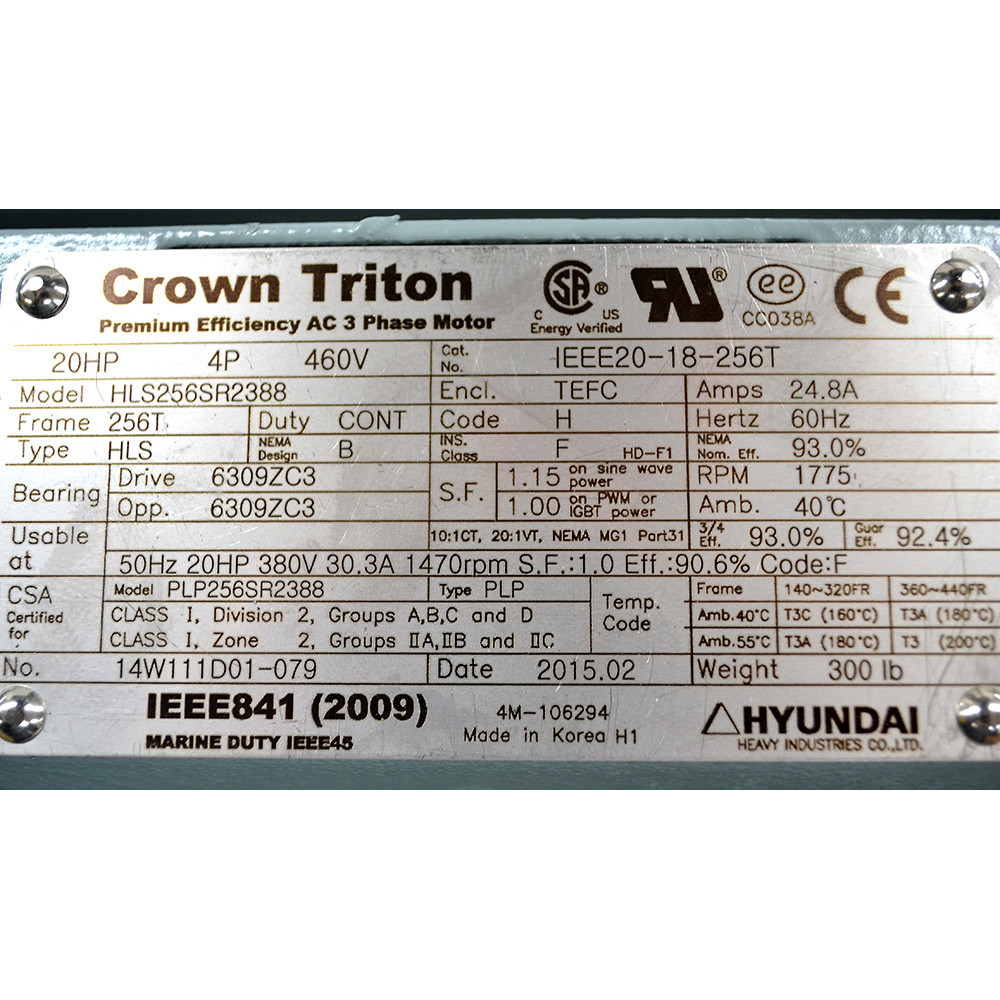

20 HP 1775 RPM 3PH MOTORNew, HYUNDAI Crown Triton™ model HLS256SR2388 three phase premium efficient motor. Ideal for use in many industrial applications including marine use. Designed and field tested for use in some of the harshest industrial environments. Motor is fully compliant to IEEE-841(2009) standard for use as a chemical and process motor. Catalog number IEEE20-18-256T.
SPECIFICATIONS
- Power 20 HP
- Voltage 460 AC
- Phase 3
- Frequency 60 Hz
- Amperage 24.8 Amps
- Speed 1775 RPM
- Rotation Reversible
- Service Factor 1.15
- Inverter Rating 10:1 CT / 1000:1 VT
- Bearings 6309ZC3
- Bearing Seal ProTech IP66 labyrinth on DE and ODE
- Enclosure TEFC
- Degree of Protection IP56
- Duty Continuous
- Frame 256T
- Base Mount Four bolt holes on 10" x 9-3/4" centers
- Shaft 1-5/8" dia. x 4" length w/ 3/8" keyway
- Size 20-3/4" x 17" x 15"
- Shpg. 356 lbs.
| California Residents |
|
WARNING: Cancer and Reproductive Harm www.P65Warnings.ca.gov |
Product Videos
Custom Field
Truck true
Prop65 true
Legacy Part Number 10-3373
PDF Page Catalog298-131.pdf
Additional Information as10-3373.pdf
Badges surplus-item,last-one
Enclosure TEFC
Frame 256T
HP 20
RPM 1775
Voltage 460 Volt AC
