Product Description

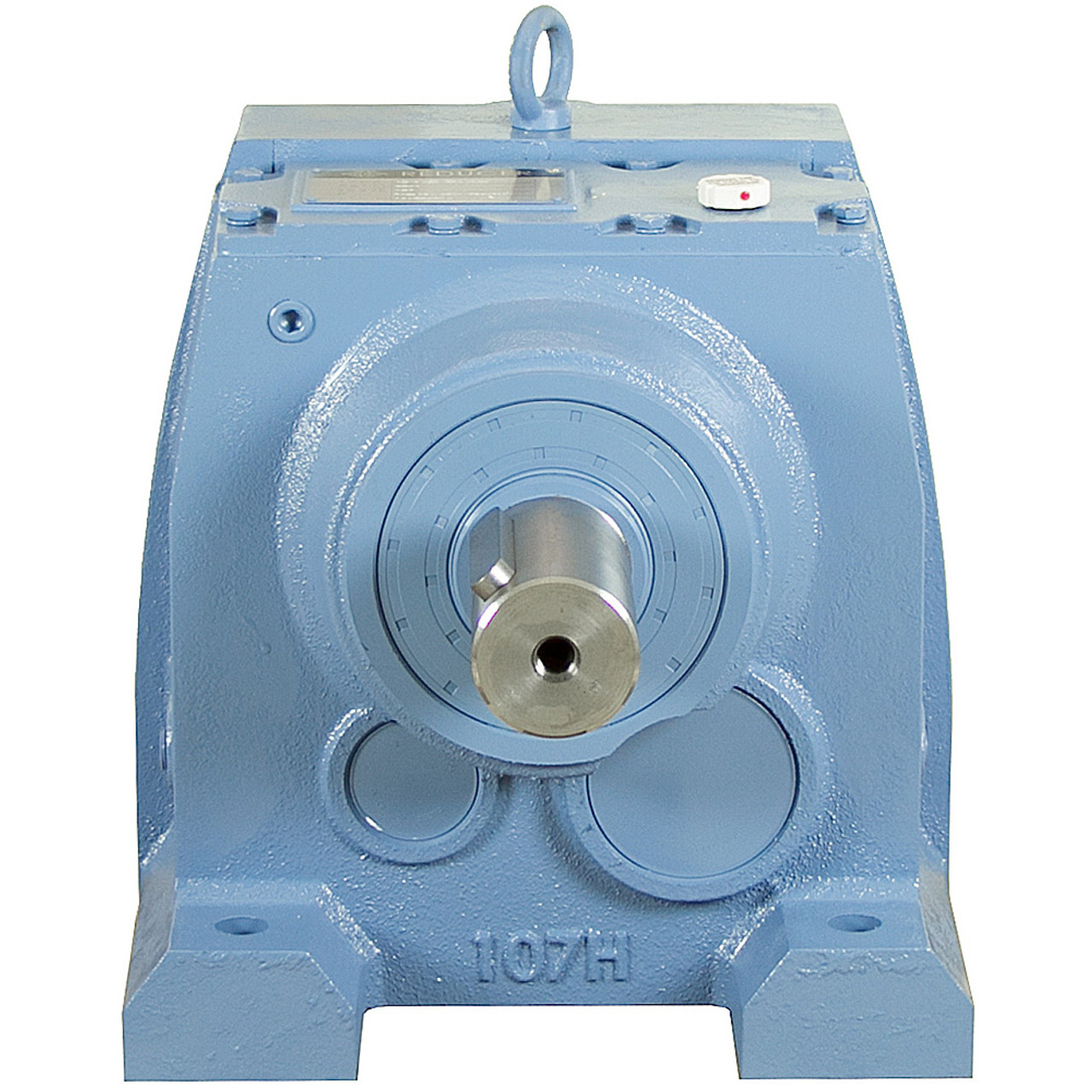

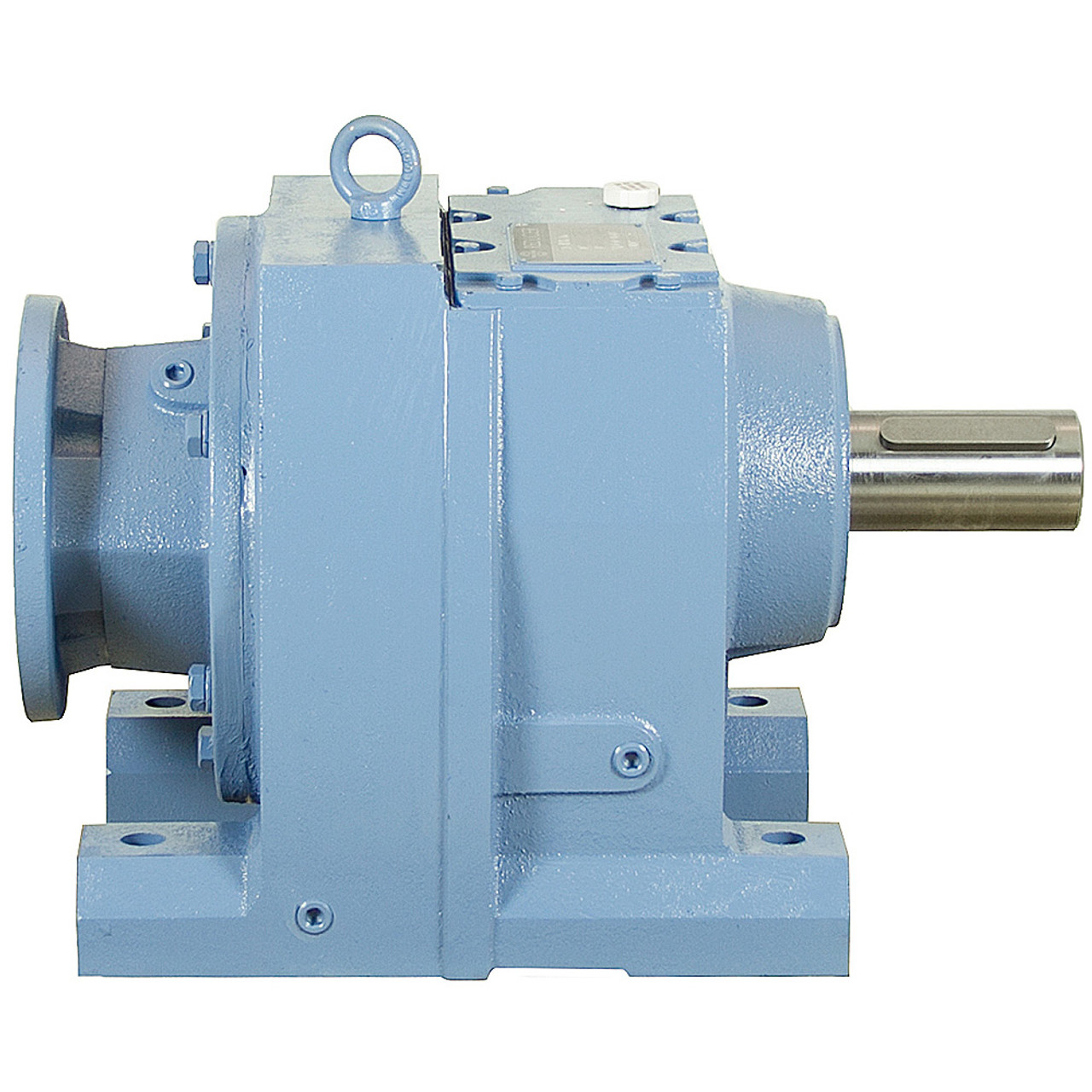

21.79:1 SIZE 107 30 HP INLINE GEAR REDUCERBrand new, World Wide Electric helical inline speed reducer. Cast iron housings. Drop-in replacement for most major inline reducer brands. Gearbox flanges are designed to accept NEMA C-Face electric motors.
SPECIFICATIONS
- Model Number WINL107-20/1-284/6TC
- Box Size 107
- Stages 3
- Nominal Ratio 20:1
- Actual Ratio 21.79:1
- Input Rotation Reversible, see shaft relation in above photo
- Output RPM @ 1800 RPM Input 86 RPM
- Input Hp 30 Hp Max
- Output Torque 20072 in.-lbs. Max
- Over-Hung Load 3054 lbs. Max
- Service Class I
- Motor Mount 286TC
- Output Shaft 2.875" dia. x 5.51" long keyed, 3/4" wide keyway, shaft end tapped 3/4"-10
- Base Mount Four 1.02" holes on 17.32" x 11.42" centers
- Shpg. 477 lbs.
