Product Description

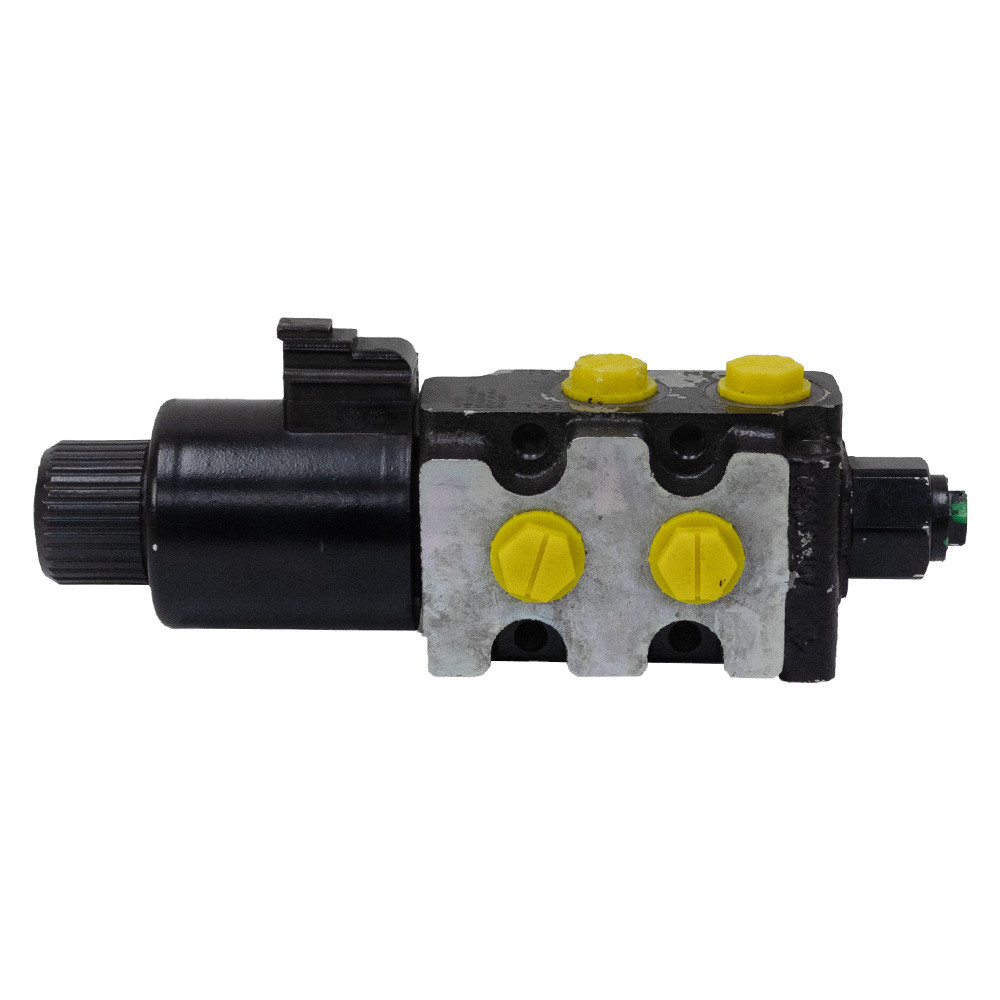

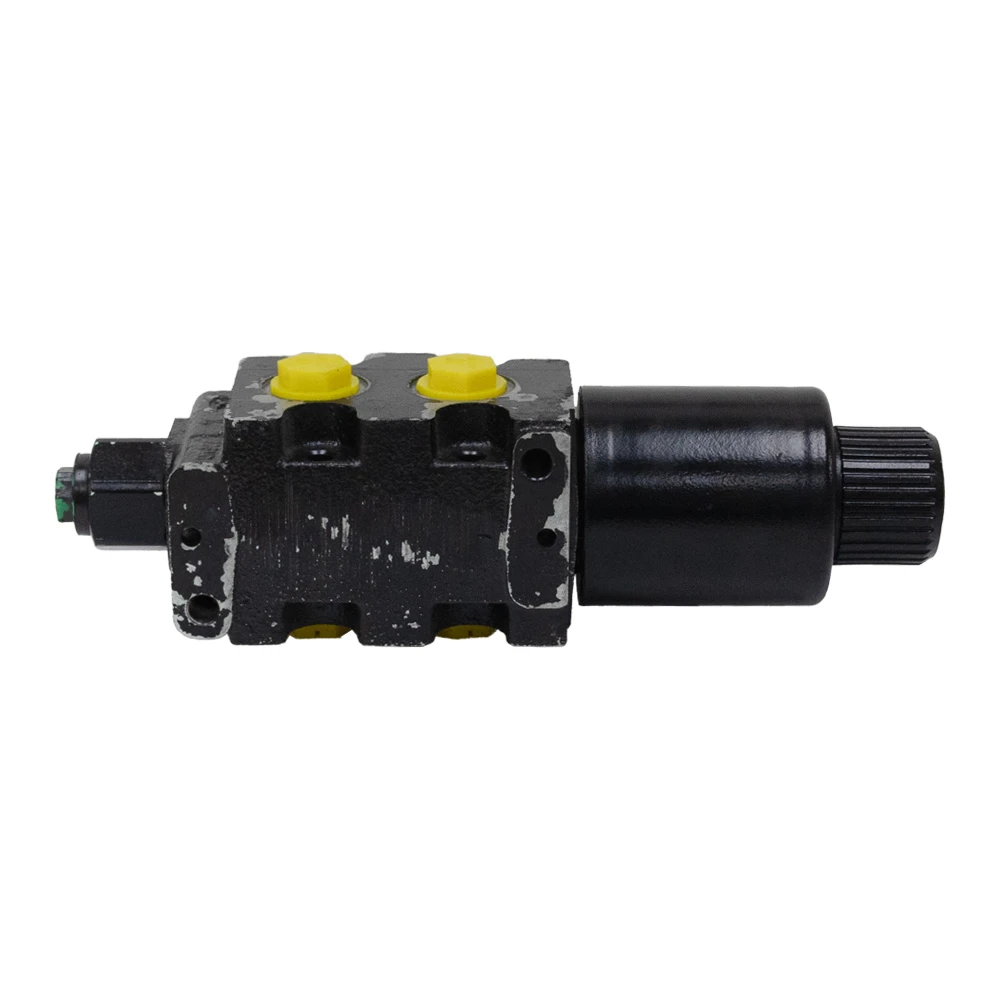

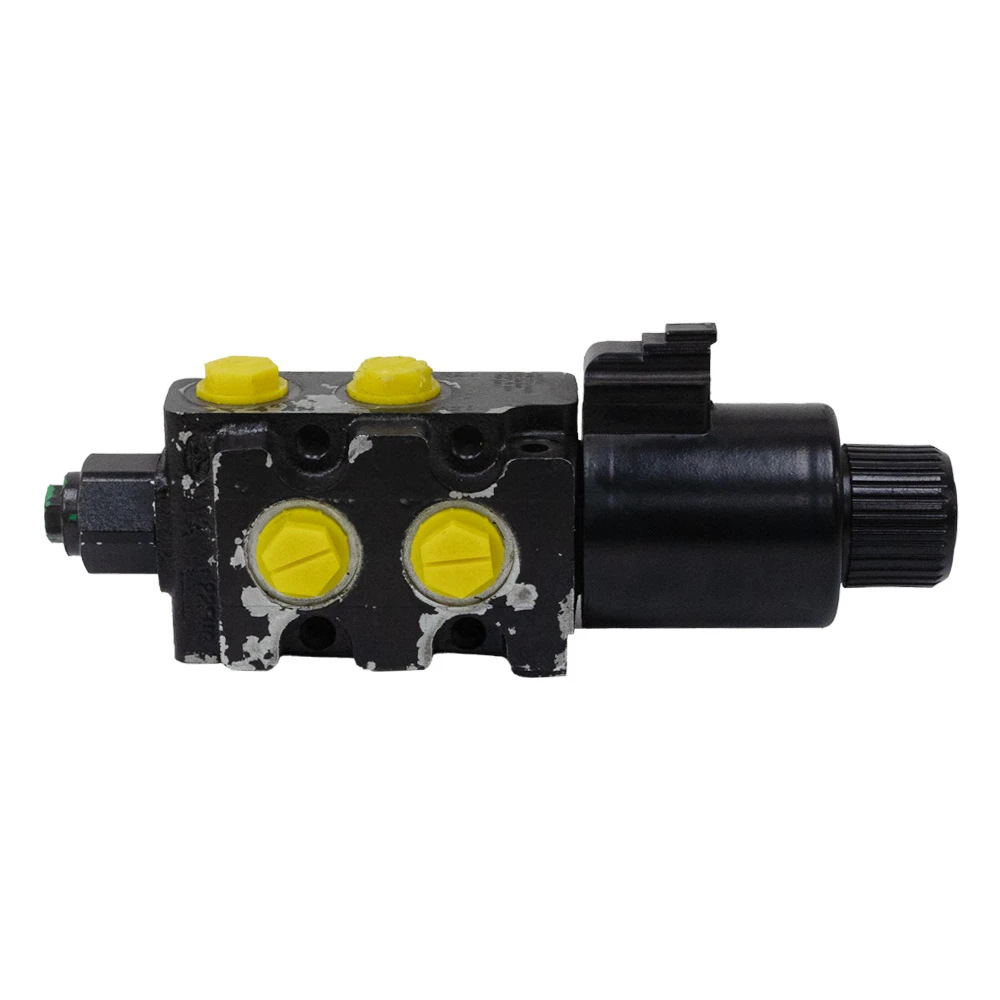

21 GPM 12 VOLT DC HYDRAULIC 6-WAY DIVERTER VALVE

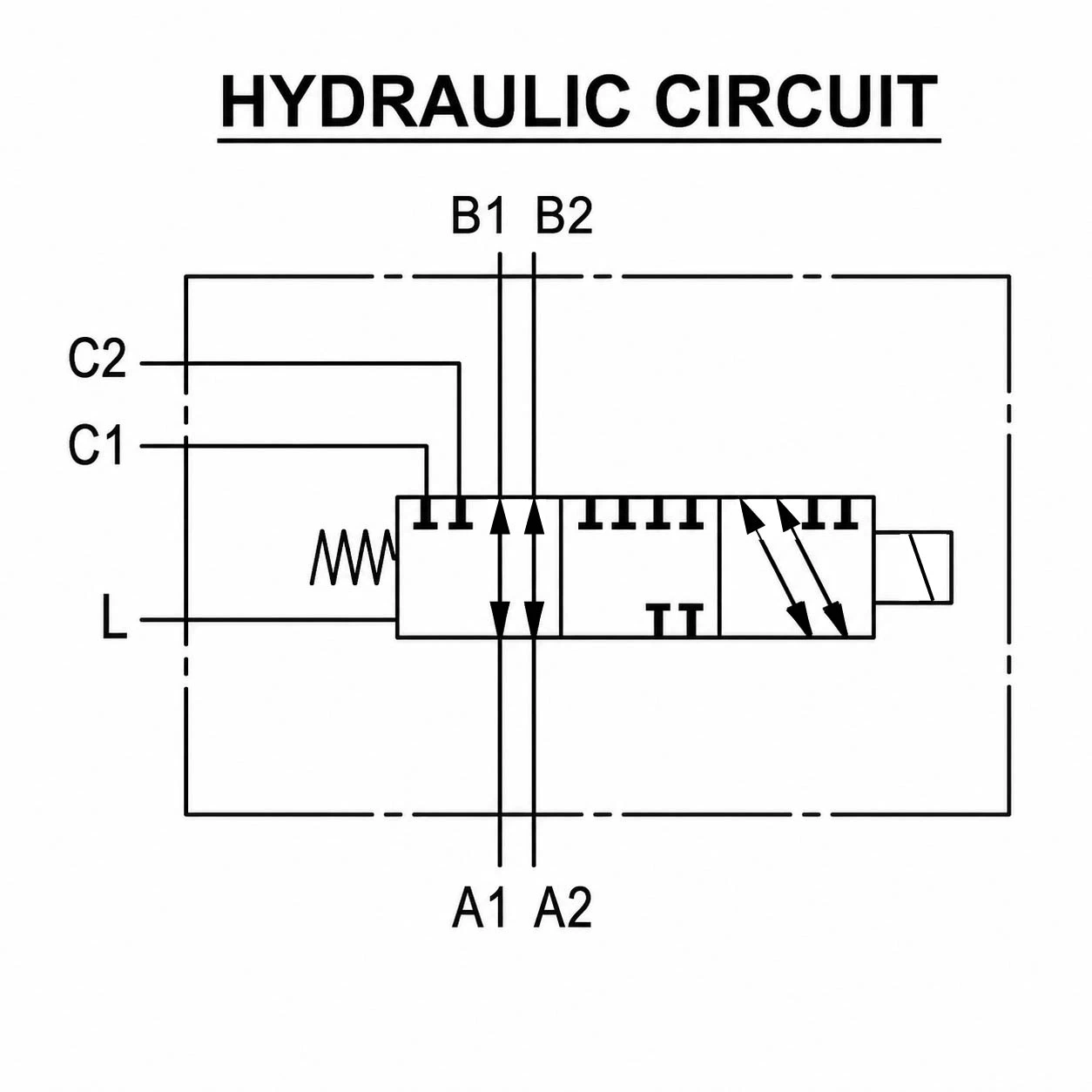

New Walvoil 12C060040 2-position, 6-way, 12 volt DC solenoid control monoblock diverter valve with manual override. Used to divert hydraulic fluid flow between two separate double-acting circuits using a single control supply source such as switching a tractor loader's oil lines between a bucket tilt function and a 3rd-function attachment like a grapple.
SPECIFICATIONS
- Brand Walvoil
- Model Number 12C060040
- Flow Rate 21 GPM
- Pressure 4568 PSI max
- Coil Voltage 12 Volt DC
- Current 5 amps
- Connector Deutsh connector (DT04-2P)
- Ports Six SAE 10
- Drain Port SAE 6
- Top Mounting Two 0.33" thru holes
- Side Mounting Four 0.33" thru holes on 1.75" x 2.25" centers
- Size 9.83" x 3.70" x 2.67"
- Shpg. 11.5 lbs.
