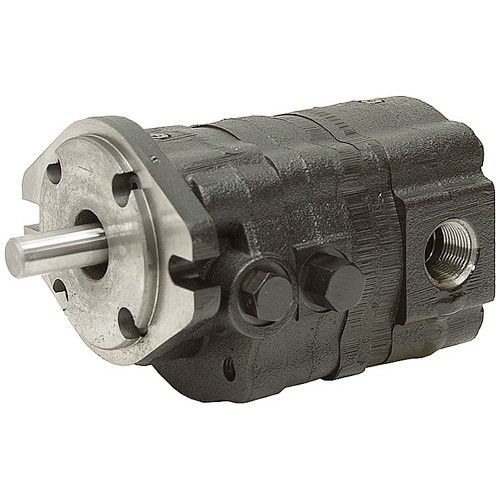

22 GPM 2 Stage Hydraulic Pump MTE Hydraulics S31004-5278 [902391]

Product Description

22 GPM 2 STAGE HYD PUMP
Brand new, MTE HYDRAULICS two stage HI/LO pressure hydraulic gear pump. Ideal for applications such as log splitters, presses and other equipment where rapid movement of the cylinder at low pressure is required prior to automatically switching to the high pressure mode to meet load requirements. The change from LO to HI pressure is automatic with the LO stage pressure preset at 500 PSI.  Cast iron construction.  Minimum of 12 HP required for gas engine use.

SPECIFICATIONS

• Displacement:
    0.408 cu. in. / rev. HI press. stage
    1.384 cu. in. / rev. LO press. stage
• Pump Type Gear
• Rotation CW
• Orientation Horizontal or Vertical
• Pressure: 3000 PSI max.
• Speed: 3600 RPM max.
• Flow:
    6.3 GPM HI press. stage
    22 GPM LO press. stage
• Unloading Pressure 500 PSI
• Mount 2 bolt SAE A
• Shaft 5/8" dia. x 1-1/2" long keyed
• Rqd. Filtration 25 micron
• Inlet Port 1-1/4" Hosebarb
• Outlet Port 3/4" NPT
• Size 6-1/4" x 6-1/4" x 4-5/8"
• Shpg. 22 lbs.
