Product Description

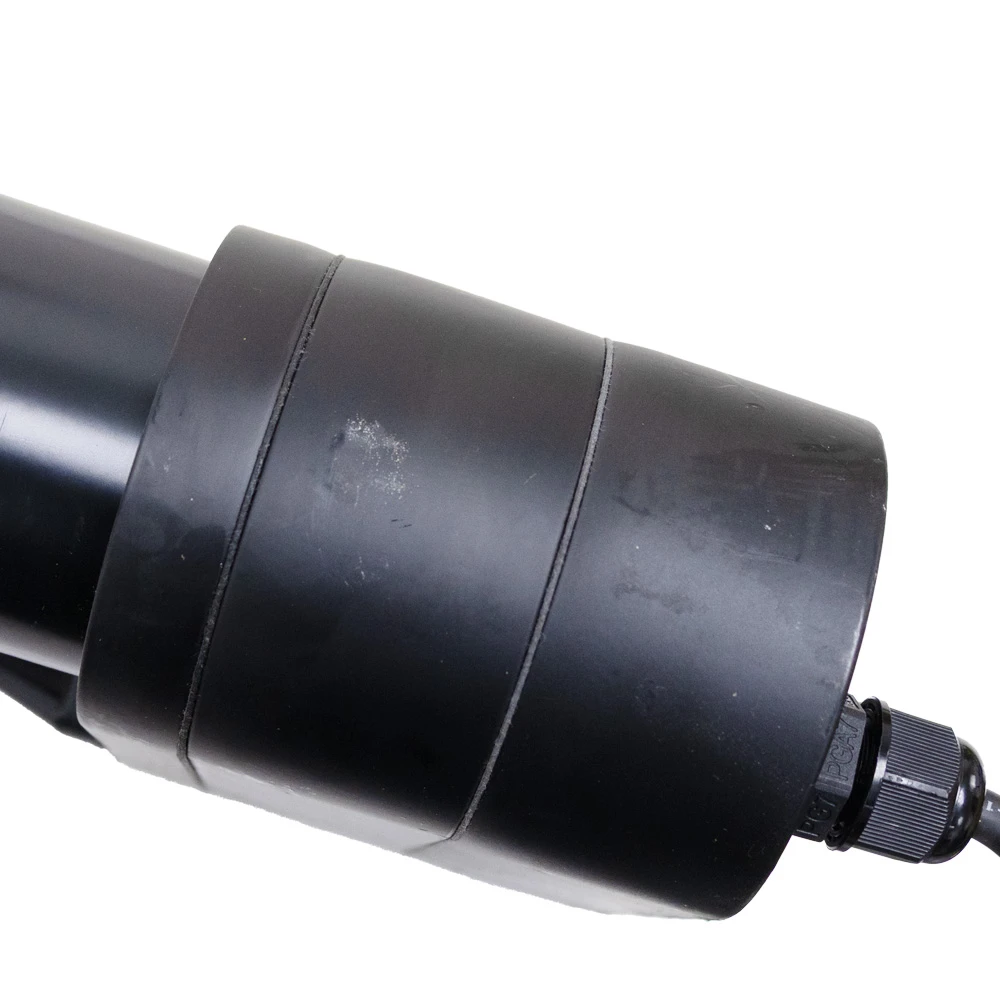

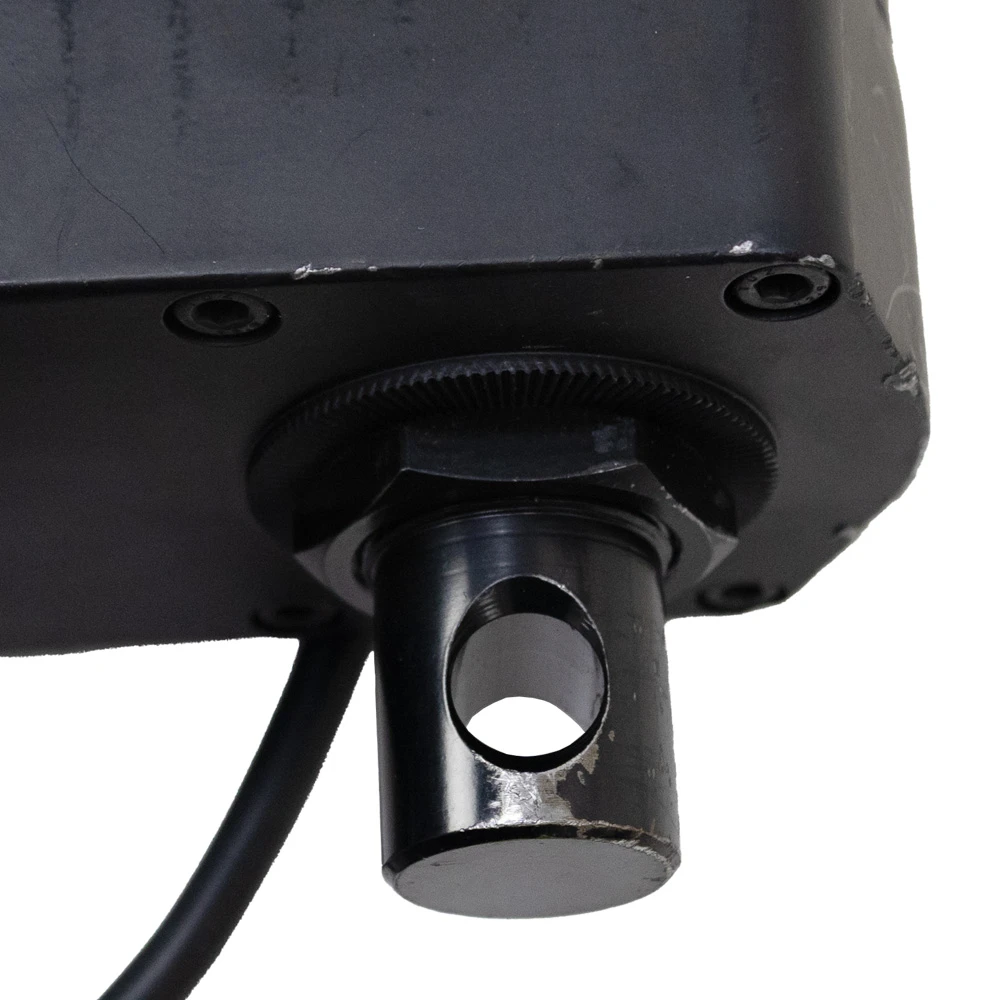

Returned Item: This actuator has marks from installation. Sold as is.
24" STROKE 12 VOLT DC 500 LB. LINEAR ACTUATOR with LIMIT SWITCHES
GLIDEFORCE model 10A122024.1 heavy duty linear actuator. ACME screw drive with built-in overload clutch. Metal housing is water resistant and sealed against dust. Permanent magnet motor. Limit switches at each end of travel.
SPECIFICATIONS
- Brand Glideforce
- Model Number 10A122024.1
- Stroke 24"
- Voltage 12 Volt DC
- Push/Pull Rating
Dynamic 500 lbs. max - Extension Speed
No Load 0.66 in/sec
Max Load 0.56 in/sec - Amps
No Load 2.6
Full Load 13.2 - Gear Ratio 20:1
- Duty 25%
- Operational Temperature Range
-13° F to +149° F - Enclosure IP65
- Pin Holes 1/2"
- Retracted Length 36.1"
- Shaft Dia. 1-1/8"
- Size 37.14" x 3.04" x 5.97"
- Shpg. 20 lbs.
| Mounting Brackets | |
|---|---|
| ID Series Linear Actuator Mounting Bracket - Aluminum GlideForce LA-ID-BRACKET | 500597 |
| ID Series Linear Actuator Mounting Bracket Steel GlideForce LA-ID-BRKT-S-PC | 501070 |
| Mounting Clevis for ID Series Linear Actuators Aluminum GlideForce LA-ID-CLEVIS | 501071 |
| Compatible Polarity Reversing Switches | |
|---|---|
| DPDT-CO 30 Amp Maintained Toggle Switch GlideForce SWT-TOG-4W | 500725 |
| DPDT-CO 30 Amp Momentary Toggle Switch GlideForce SWT-TOG-MOM-4W | 500726 |
| California Residents |
|
WARNING: Cancer and Reproductive Harm www.P65Warnings.ca.gov |
Product Videos
Custom Field
Prop65 true
Legacy Part Number 5-1916-24
Badges surplus-item,last-one
Load Rating 500 to 999 lbs.
Stroke 4
Voltage 12 Volt DC
PDF Page Catalog 299-145.pdf
Additional Information as10Aseries.pdf
