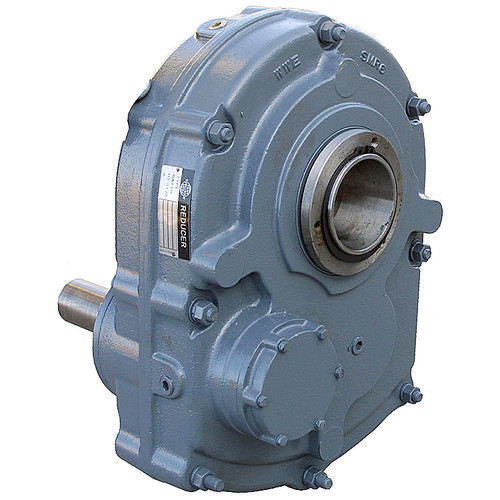

  • 25:1 SMR6 Shaft Mount Reducer Worldwide SMR6-25/1 [602608]
  • 25:1 SMR6 Shaft Mount Reducer Worldwide SMR6-25/1 [602608]

    • 25:1 SMR6 Shaft Mount Reducer Worldwide SMR6-25/1 [602608]

    Item Number: 602608

    Legacy Part Number: 13-6-SMR-25

    (No reviews yet) Write a Review

    2 In Stock

    Regular Stock Item
    $2,334.78
    Adding to cart… category.add_cart_announcement

    Must ship via Truck Freight

    Please contact us for a quote.

    Catalog Page This item is on page 112 of our current catalog

    Product Description

    25:1 SHAFT MOUNT REDUCER
    Brand new, WORLDWIDE ELECTRIC CORP shaft mount reducers. Cast iron housing, high grade case hardened steel gears and shafts. Double lip seals. Metal reinforced double lips, spring loaded oil seals. Premium quality ball and tapered bearings. Tapered bushing output (bushing not included). Torque arm included. Interchangeable with DODGE, HUB CITY, EDISON and BROWNING shaft mount reducers.

    SPECIFICATIONS

    • Brand WORLDWIDE ELECTRIC CORP
    • Model SMR6-25/1
    • Ratio 25:1
    • Input Power see table below
    • Output see table below
    • Torque see table below
    • Input Shaft 2-3/16" diam. x 6-1/16" w/ 1/2" keyway
    • Output Bore see table below
    • Size 15-1/8" x 21-5/16" x 9-5/8"
    • Shpg. 333 lbs.
    Service Class I Service Class II Service Class III
    HP RPM Torque HP RPM Torque HP RPM Torque
    3 4-5 45226-36181 in-lbs 2 4-5 30151-24121 in-lbs 1.5 4-5 22613-18091 in-lbs
    5 7-9 43073-33501 in-lbs 3 6-8 30151-22613 in-lbs 2 5-7 24121-17229 in-lbs
    7.5 10-15 45226-30151 in-lbs 5 9-14 33501-21536 in-lbs 3 8-12 22613-15075 in-lbs
    10 13-20 46386-30151 in-lbs 7.5 14-21 32304-21536 in-lbs 5 13-20 23193-15075 in-lbs
    15 20-32 45226-28266 in-lbs 10 19-29 31738-20794 in-lbs 7.5 20-32 22613-14133 in-lbs
    20 27-45 44668-26801 in-lbs 15 28-47 32304-19245 in-lbs 10 27-45 22334-13400 in-lbs
    25 34-59 44339-25552 in-lbs 20 39-68 30924-17736 in-lbs 15 42-75 21536-12060 in-lbs
    30 42-75 43073-24121 in-lbs 25 50-80 30151-18844 in-lbs 20 58-70 20794-17229 in-lbs
    40 58-81 41587-29779 in-lbs 30 61-76 29657-23803 in-lbs - - -



    OUTPUT BORE OPTIONS
     BORE  ITEM #  BORE  ITEM #
     2-1/2"  13-6-TBK-212  2-11/16"  13-6-TBK-21116
     2-7/8"  13-6-TBK-278  2-15/16"  13-6-TBK-21516
     3"  13-6-TBK-3  3-7/16"  13-6-TBK-3716



    OTHER OPTIONS
     MOTOR MOUNT  13-6-MM
     BACKSTOP ASSEMBLY  13-6-BSK
     BELT GUARD  13-6-BG
