25 Gal Hydraulic Reservoir w/10 Micron Return Line Filter Buyers Products SMR25SF10 [903633]

Product Description

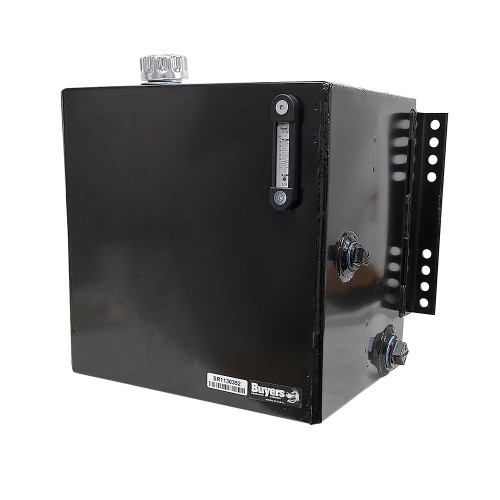

25 GAL STEEL HYDRAULIC RESERVOIR W/ 10 MICRON RETURN LINE FILTER
Brand new, BUYERS model# SMR25S hydraulic reservoir with BUYERS model# HFA91025 10 micron, 26 GPM capacity return line filter assembly. Reservoir is constructed of 13 gauge black, powder-coated steel. Features a magnetic drain plug, chrome breather cap with filler basket, oil level gauge with temperature indicator, and an interior baffle between suction and return ports. One suction and one return port on each side.

SPECIFICATIONS

• Brand Buyers Products
• Model Number SMR25S
• Nominal Oil Capacity 25 Gallon
• Usable Oil Capacity 18 Gallon
• Ports:
   Two 2" NPT suction ports

   One 1" NPT return port thru filter

   One 3/4" NPT drain port

• Mount Welded mounting angles
• Mounting Holes Two sets of four 11/16" mntg. holes on 1-1/4" centers per side
• Size 24-3/8" x 24" x 17"
• Shpg. 76 lbs.
