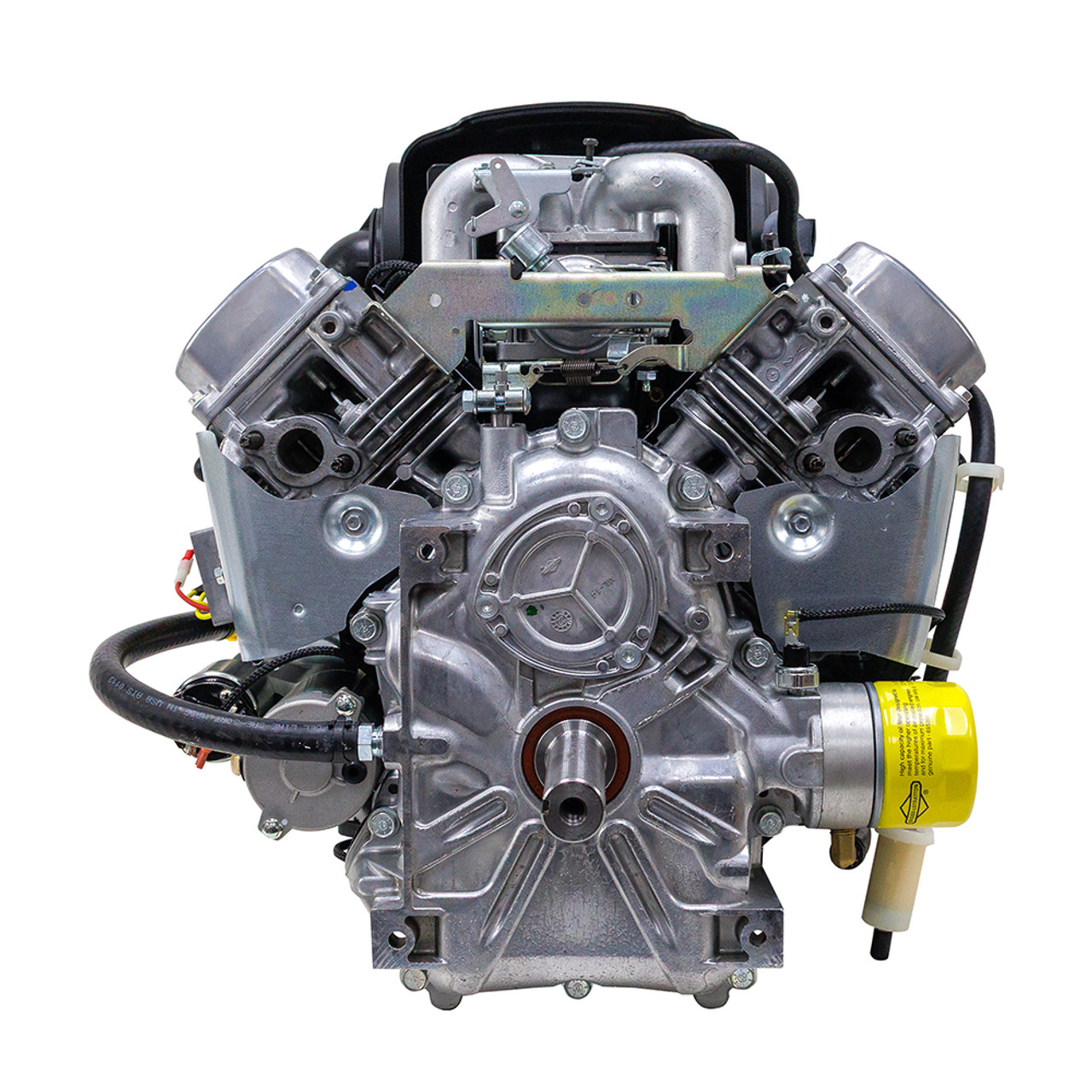

26 HP Vertical Shaft Engine Briggs & Stratton Vanguard 49R9770013G1 [300398]

Product Description

26 HP VANGUARD VERTICAL ENGINE
New, Briggs & Stratton 49R9 Vanguard mid-block V-twin(OHV) vertical shaft engine. Designed for zero turn mowers. Features heavy-duty cylinder and sump, forged connecting rods, fire ring head gaskets, cast aluminum valve covers, forged crankshaft and a 5" cyclonic air cleaner.

SPECIFICATIONS

• Brand Briggs & Stratton
• Series Vanguard
• Model 49R9770013G1
• Power 26 HP @ 3600 RPM
• Torque Unknown
• Bore/Stoke 3.3"(84mm)/2.89"(73mm)
• Disp. 49.4 cu in (810 cc)
• Oil Capacity 67 oz
• Speed 3600 RPM max.
• Start Electric Start
• Fuel Tank None
• Shaft Orientation Vertical
• Shaft 1.125" dia. x 4.3125" w/ 0.25" Keyway tapped 7/16"-20 TPI
• Mount Four 0.34" dia.
• Size 22.89"(581.4mm) x 19.94"(506.5mm) x 18.53"(470.7mm)
• Shpg 140 lbs.
