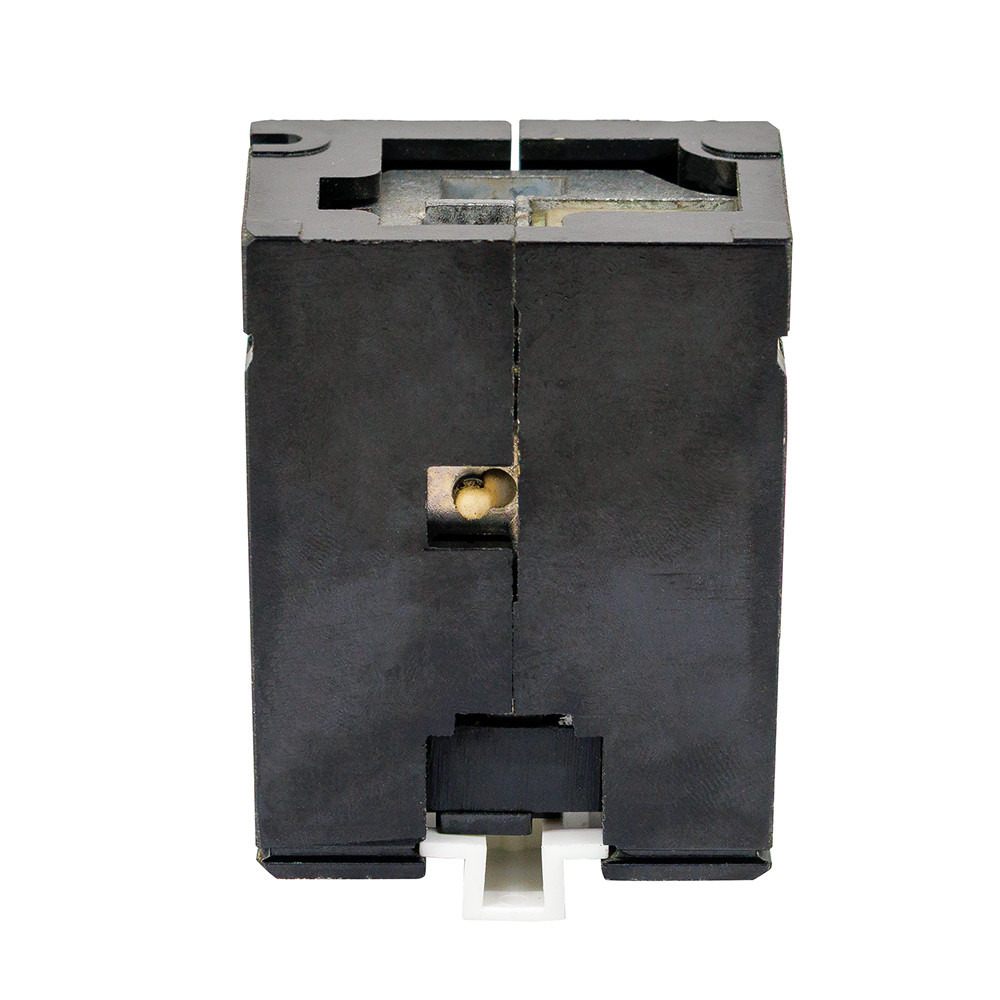

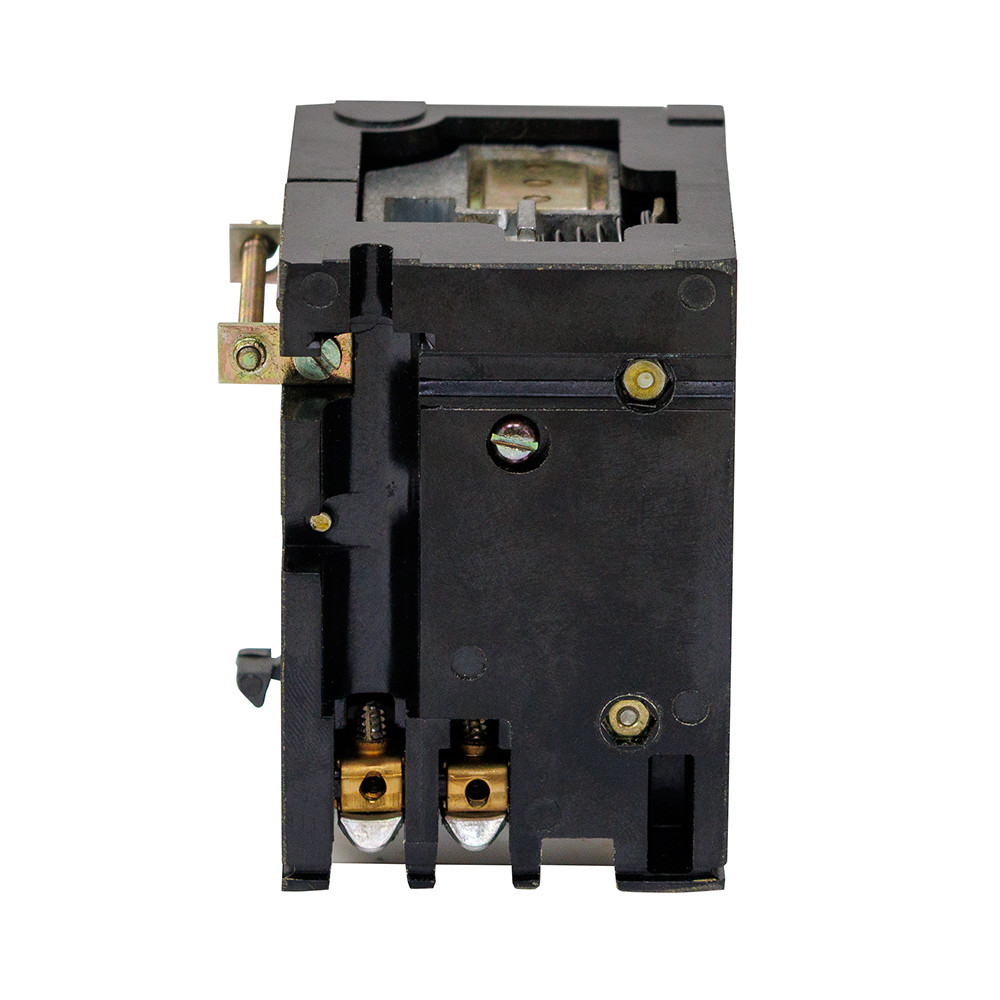

300 Volt AC Pneumatic Time Delay Relay General Electric CR122A01100AA [500239]

Product Description

PNEUMATIC TIME DELAY RELAY
New, General Electric CR122A01100AA 300 volt AC pneumatic time delay relay. Designed for use in control circuits, to introduce at time interval between the operation of an electrical contact and the actual initiation of the controlled function. Typical applications are machine tool and automation circuits where and adjustable time delay of from 1/5 to 60 seconds is desired. For use with 2 or 4 pole relays.

SPECIFICATIONS

• Brand General Electric
• Model Number CR122A01100AA
• Series A
• Max. Voltage Rating 300 Volt AC
• Continuous AC Current Rating 10 Amps max.
• Terminals Clamp
• Size 3.03" x 2.28" x 2.14"
• Shpg 0.8 lbs.
