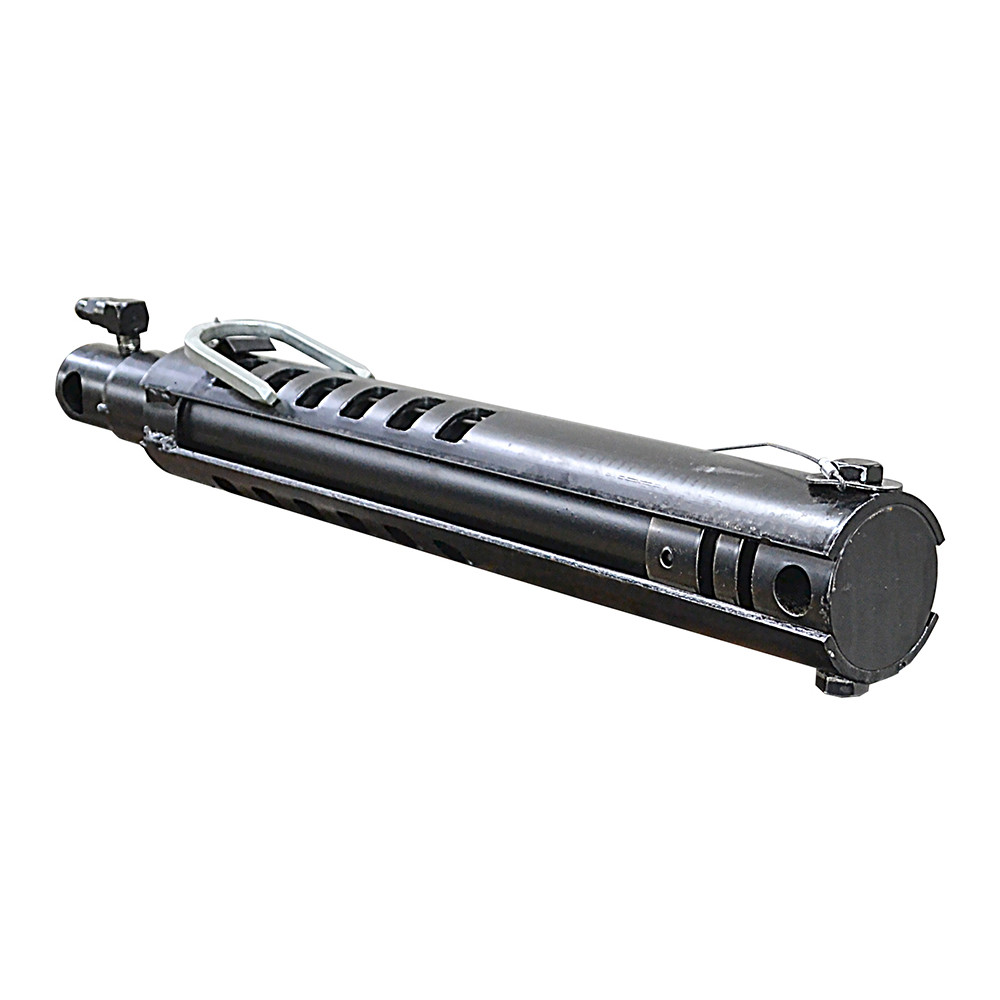

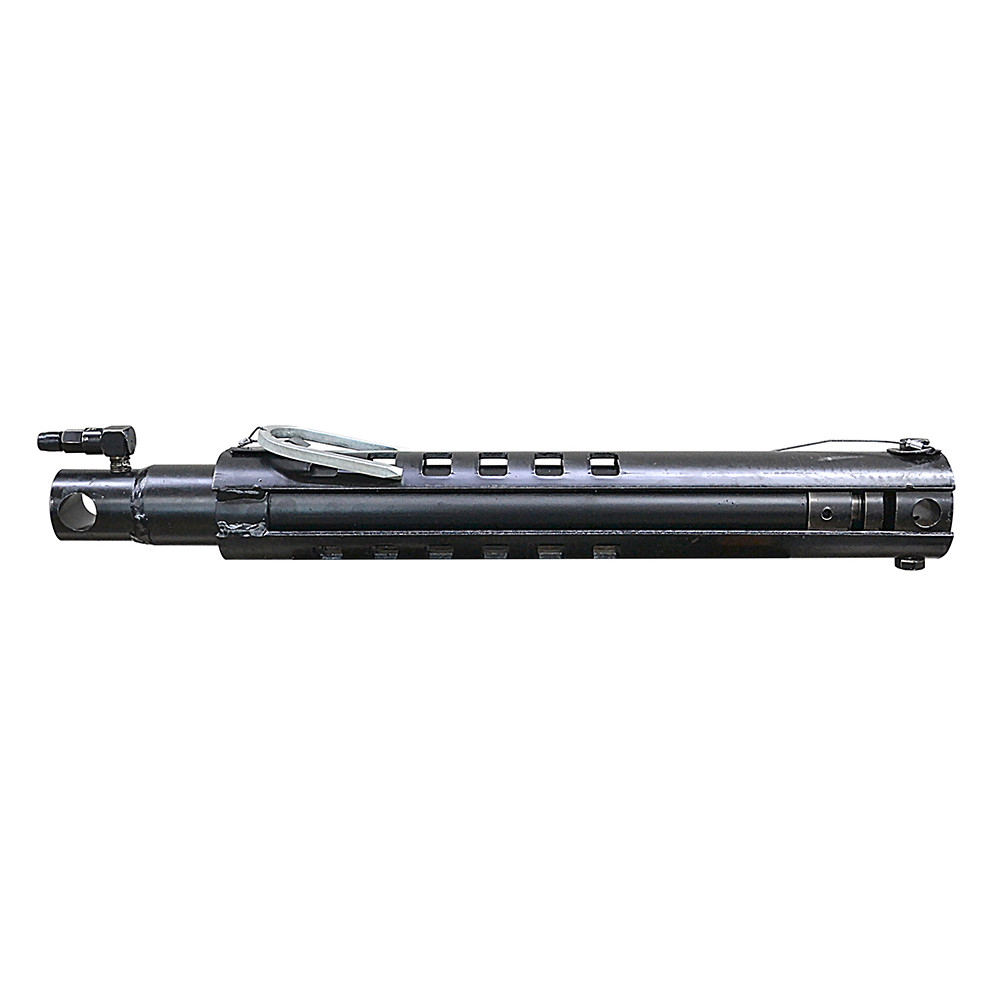

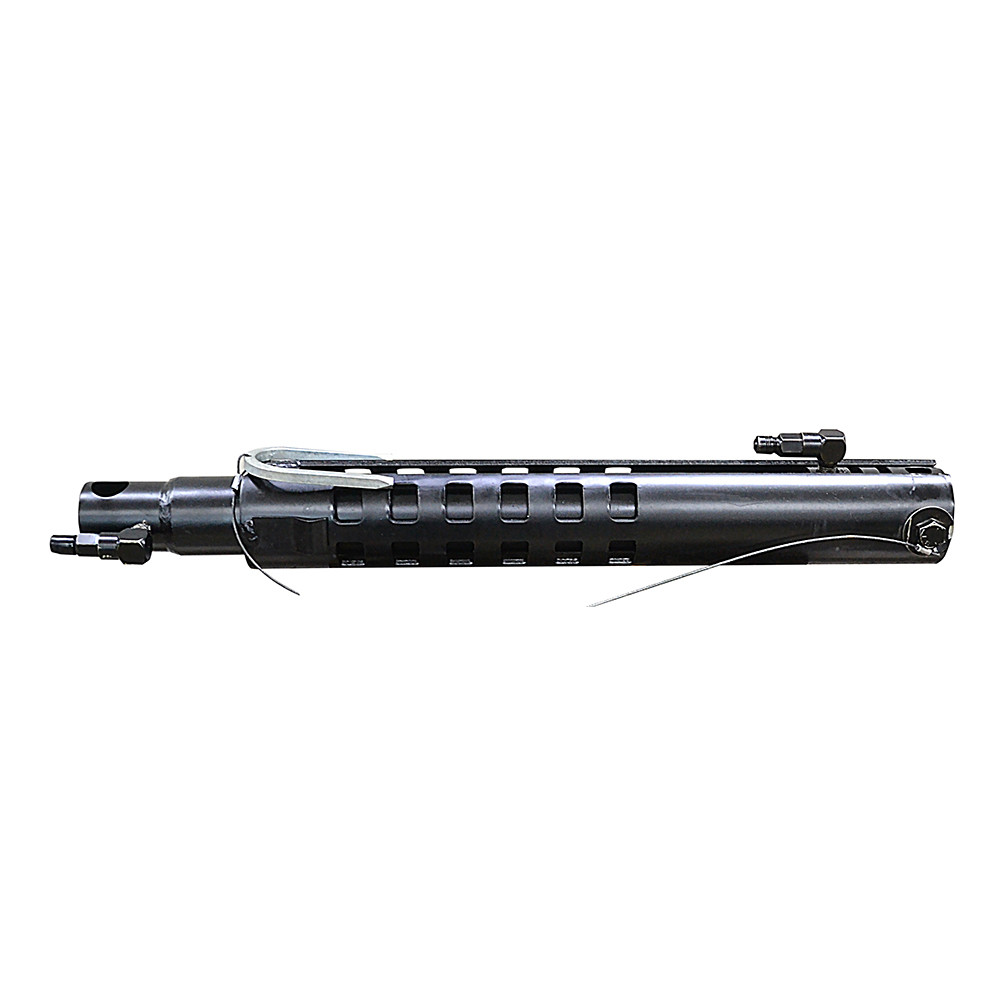

2x14.5x1 Double Acting Hydraulic Cylinder Volvo Heavy Truck mfg. G2071792 [906324]

Product Description

2" x 14.5" x 1" HYDRAULIC CYLINDER
Unused old inventory. Volvo Heavy Truck mfg. G2071792, welded, double acting hydraulic cylinder. Rod end has a manual six position extension lock with an adjustable range between 7" to 14.5" at 1.5" increments. Locking pin included. Extend port has a JIC 5 male adaptor fitting installed and the retract port has a JIC 4 male adaptor fitting installed.

SPECIFICATIONS
Double Acting Bore x Stroke 2" x 14.5" Gland Retainer Welded Pressure 2500 PSI max. Rod Dia. 1"	Ports 1/4" NPT Retracted Length 22.75" Gland Face to Rod Pin Center 0.75" Shpg. 26 lbs.

END MOUNTINGS
Rod End Thru-Hole Width 2.625" Pin Center to Base End 0.778" Pin Hole 0.75"	Base End Thru-Hole Width 1.875" Pin Center to Base End 0.759" Pin Hole 1"
