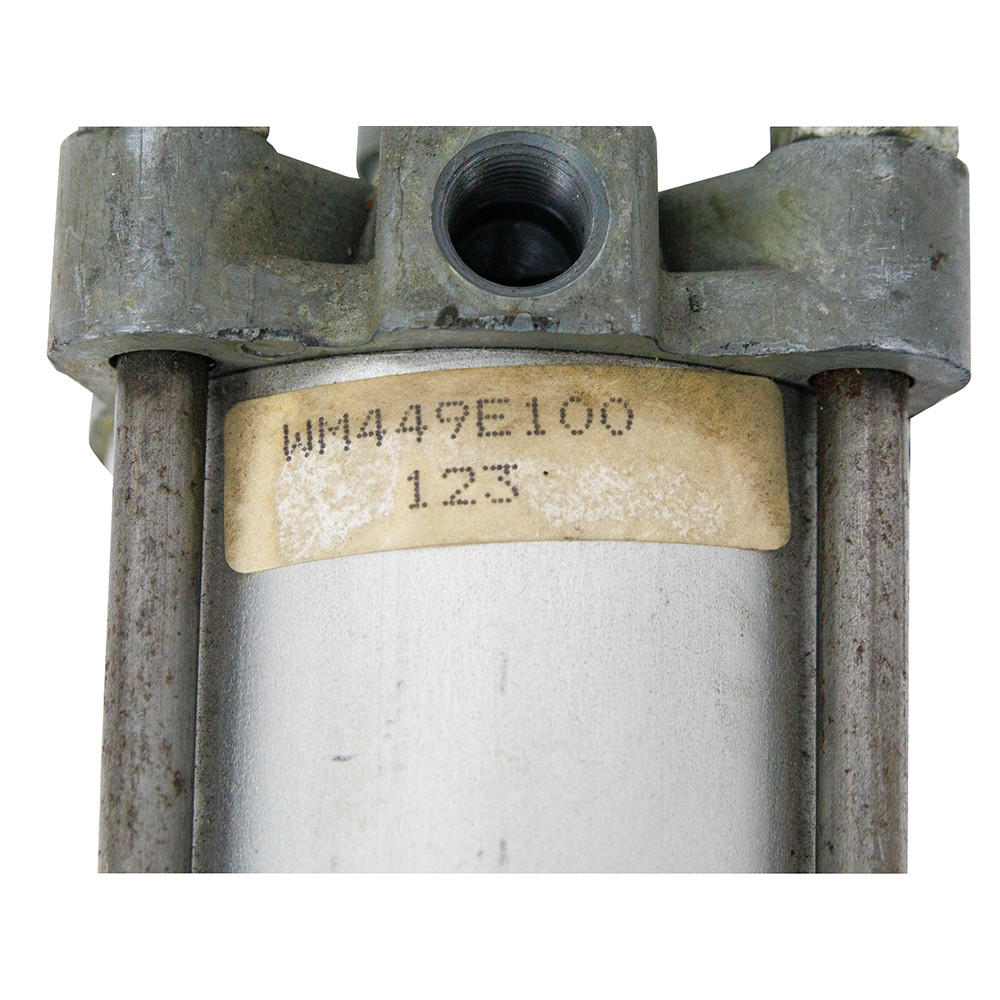

2x5x.0375 Double Acting Air Cylinder Williams Air Cylinders WM499E1 [400522]

Product Description

2" x 5" x 0.375" DOUBLE ACTING PNEUMATIC CYLINDER
Old unused inventory, Williams Air Cylinders WM449E1 double acting air cylinder. The WM449 cylinders are frequently used as pneumatic control devices for power take-off units, transmission shift systems, or latching/unlatching functions. These cylinders are NOT designed for modulating or “feathering” applications.

SPECIFICATIONS
Double Acting Bore x Stroke 5" x 1" Gland Retainer Tie-Rod Pressure 150 PSI max. Rod Dia. 0.375"	Ports 1/8" NPT Retracted Length 12" Gland Face to Rod Pin Center 2.125" Shpg. 4 lbs.

END MOUNTINGS
Rod End Clevis Outside Width 1.125" Inside Width 0.5" Throat Depth 1.125" Pin Hole 0.5"	Base End Tang Width 0.57" Pin-Center-To-Tang-End 0.5" Pin Hole 0.5"
