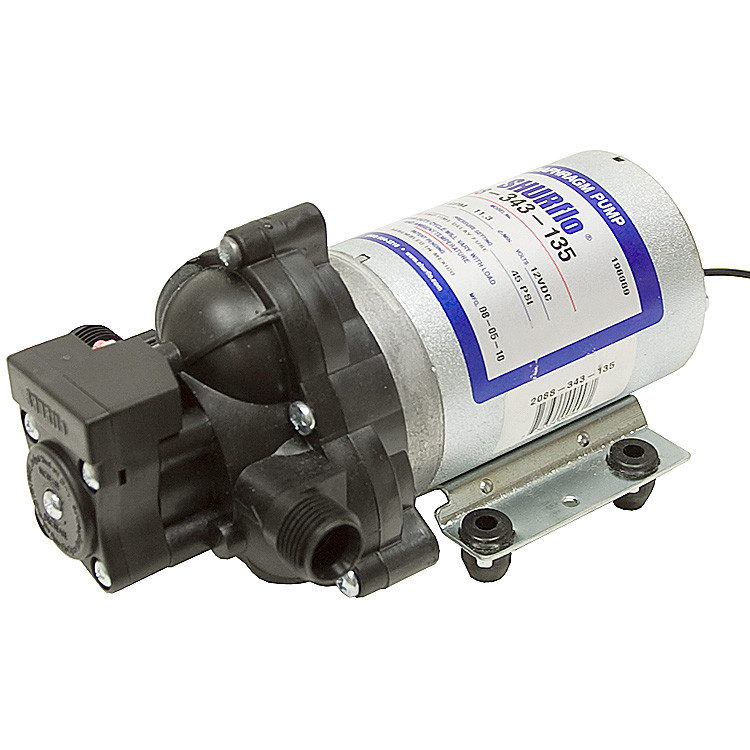

3.0 GPM 40 PSI 12 Volt DC Auto-Demand Diaphragm Pump Shurflo 2088-343-135 [200508]

Product Description

12 VDC DIAPHRAGM PUMP
Brand new, SHURFLO model 2088-343-135 automatic demand diaphragm pump. Ideal for spot sprayers, multiple tip sprayers, fertilizer drip applications or as replacement on existing equipment. Santoprene diaphragm and Viton valves. Automatic shut off switch set to 45 PSI. Pump turns on between 15 and 20 PSI less than the set shut off pressure. Self priming to 12 ft. Can run dry intermittently without damage. Wire leads. Rubber vibration damper mounting feet. Metal fittings or rigid pipe are not recommended for plumbing.

SPECIFICATIONS

• Voltage 12 VDC
• Amperage 7.7 Amps
• Shut-Off Pressure 45 PSI
• Flow Rates
    3.0 GPM @ open flow
    2.8 GPM @ 10 PSI
    2.69 GPM @ 20 PSI
    2.36 GPM @ 30 PSI
    2.05 GPM @ 40 PSI
• Ports 1/2" MSPT (Male Straight Pipe Thread)
• Duty Intermittent
• Mount
    Four bolt on 3-1/8" x 2-1/4" centers
• Size 8-3/4" x 6" x 4-1/2"
• Shpg. 6 lbs.
