Product Description

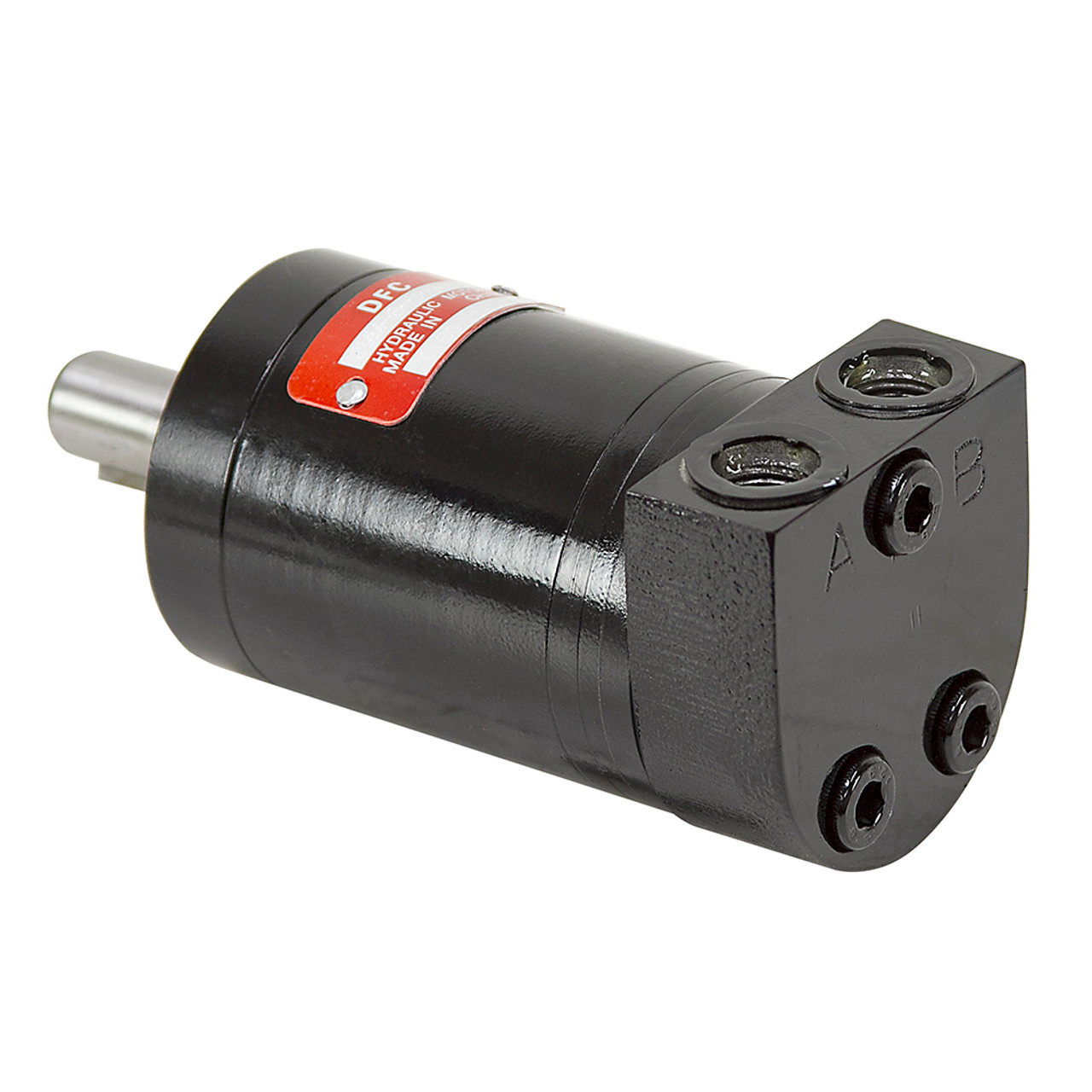

3.07 cu in Dynamic BMM-50-U-B-U HYDRAULIC MOTORBrand new, DYNAMIC BMM series hydraulic motor. Compact frame with Rototorc gear set to provide highly efficient low speed high torque output for limited space applications. Can be used in parallel or series hydraulic systems.
SPECIFICATIONS
- Brand Dynamic
- Model Number 61525
- Build Number BMM-50-U-B-U
- Family BMM Series
- Displacement 3.07 cu. in. / rev.
- Motor Type Rototorc
- Rotation Reversible
- Pressure:
1015 PSI cont.
1450 PSI int. - Torque:
407 in-lbs. cont.
779 in-lbs. int. - Speed:
400 RPM cont.
500 RPM int. - Flow:
5.28 GPM cont.
6.6 GPM int. - Mount 3 bolt tapped with 1/4"-28 on 1.77" bolt circle
- Pilot Mount Size 1.24"
- Shaft 5/8" dia. x 1.44" long w/ 3/16" keyway
- Ports SAE 6
- Case Drain SAE 3
- Size 4.80" x 2.36" x 2.52"
- Shpg. 9 lbs.
| California Residents |
|
WARNING: Cancer and Reproductive Harm www.P65Warnings.ca.gov |
Product Videos
Custom Field
Prop65 true
Legacy Part Number 9-12221-50
PDF Page Catalog298-73.pdf
Badges regular-stock
Displacement 3.07
Displacement Range Up to 4.9 cu in/rev
Mount1 3 bolt round 1.77 dia.
Ports SAE
Shaft Keyed
