Product Description

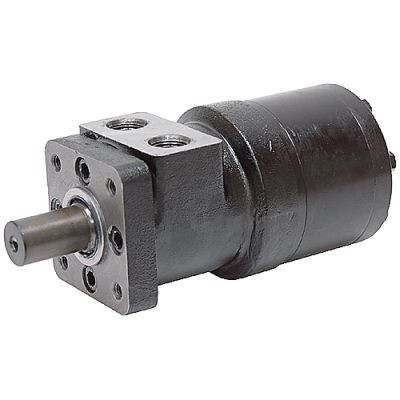

3.15 cu in DYNAMIC BMRS50H4KS HYDRAULIC MOTORBrand new. DYNAMIC BMRS series hydraulic motors. Gerolor power element. Interchangeable with the following motor lines: CHAR-LYNN S, DANFOSS DS, WHITE RS, PARKER - ROSS MG/TB.
SPECIFICATIONS
- Brand Dynamic
- Model Number 61301
- Build Number BMRS50H4KS
- Family BMRS
- Displacement 3.15 cu. in. / rev.
- Motor Type Gerolor
- Rotation Reversible
- Pressure:
2031 PSI cont.
2538 PSI int. - Torque:
885 in-lbs cont.
1115 in-lbs. int. - Speed:
960 RPM cont.
1150 RPM int. - Flow:
13.21 GPM cont.
15.85 GPM int. - Mount 4 bolt 3.25" bolt circle
- Shaft 1" dia. x 1.57" long w/ 1/4" key, tapped 1/4"-20
- Ports SAE 10
- Case Drain SAE 4
- Size 5.6875" x 5.18" x 3.75"
- Shpg. 19 lbs.
| California Residents |
|
WARNING: Cancer and Reproductive Harm www.P65Warnings.ca.gov |
Product Videos
Custom Field
Prop65 true
Legacy Part Number 9-7078-50
PDF Page Catalog298-76.pdf
Badges regular-stock
Displacement 3.15
Displacement Range Up to 4.9 cu in/rev
Mount1 4 bolt
Ports SAE
Shaft Keyed
