3/4" Bore Coupler Sprocket 40P 16T [602833]

Product Description

DOUBLE ROLLER CHAIN COUPLER SPROCKET HALF

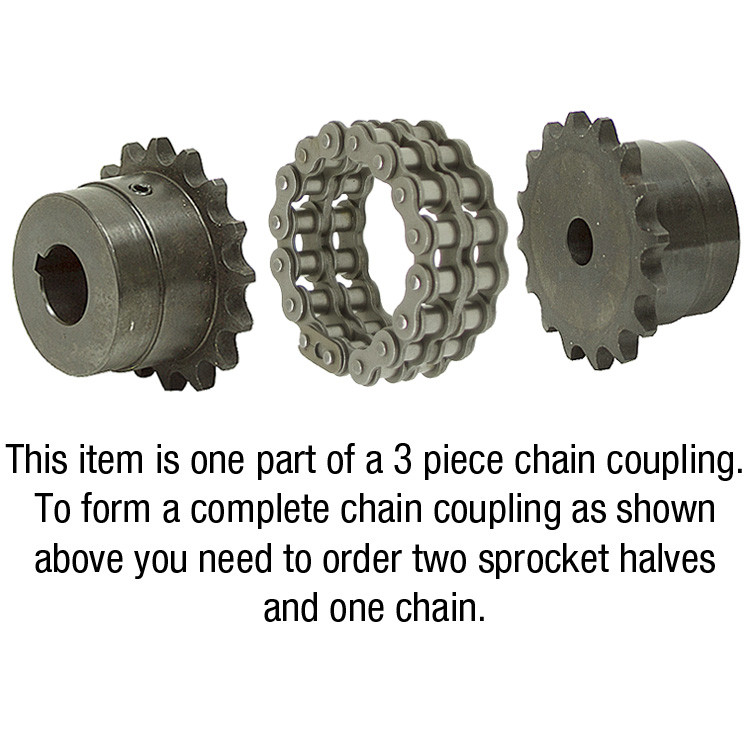

Brand new. Double roller chain coupler sprocket half. Three piece chain coupler consist of two sprockets connected together with double roller chain. Sold as individual halves and chain. Purchase two halves and one coupler chain to make a complete coupling. For reversing operation, shock, pulsating loads or other severe operating conditions select the next larger coupling size. Furnished with standard keyway and setscrew.

SPECIFICATIONS

• Pitch 40
• Sprocket Teeth 16
• Bore 3/4" dia. w/ 3/16" keyway
• Max. Speed 5000 RPM
• Max. Torque 80.5 ft.-lbs.
• Max. HP @ Speed 73.6 HP @ 4800 RPM
• Size 3.03" dia. x 1.58"
• Shpg. 2 lbs.
