Product Description

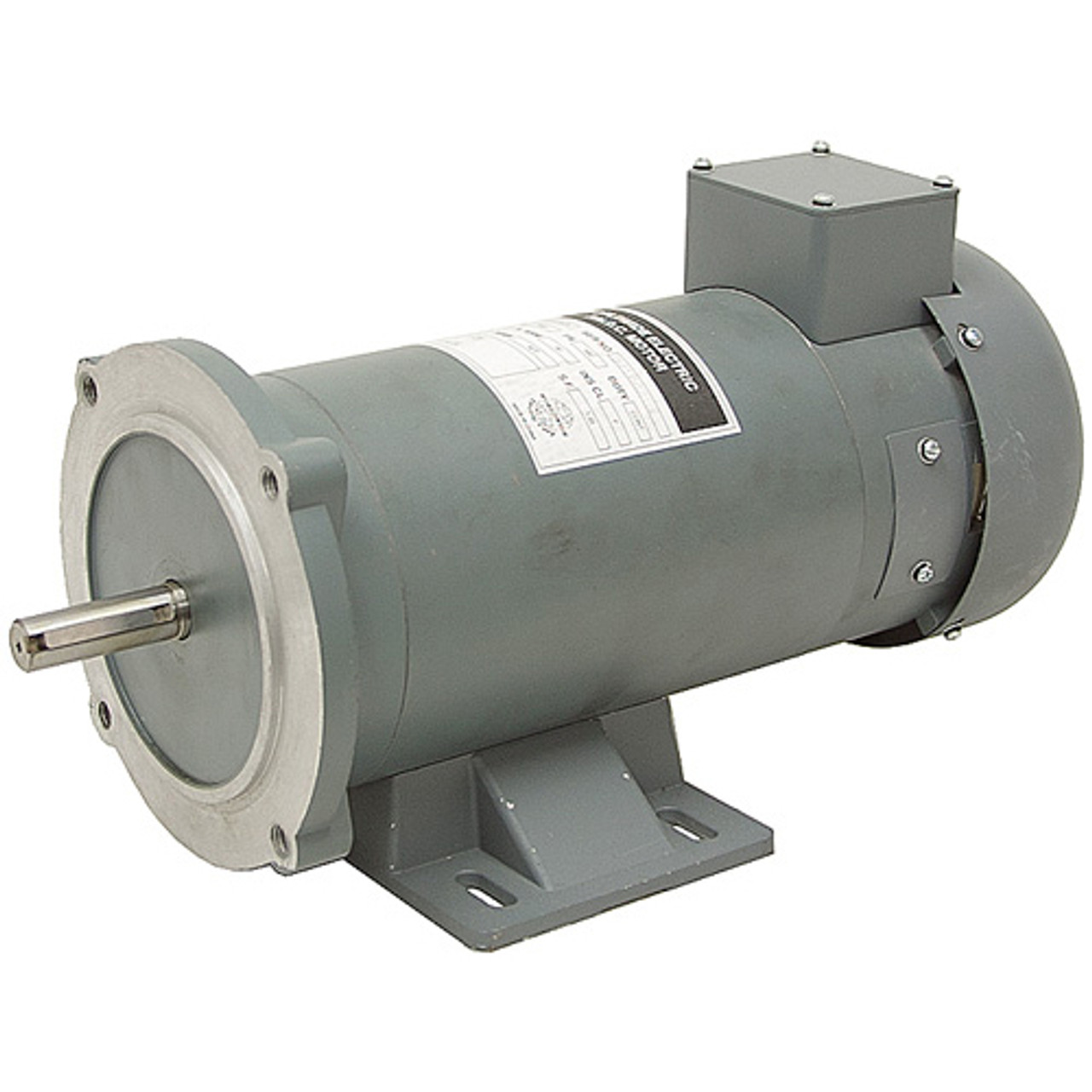

3/4 HP 12 VDC 1800 RPM MOTORBrand new, Worldwide Electric model WPMDC34-18-12V-56CB permanent magnet motor. Bolt on/off steel base. Class F insulation. 20:1 speed range at constant torque.
SPECIFICATIONS
- Power 3/4 HP
- Voltage 12 DC
- Amperage 61.2 Amps
- Service Factor 1.0
- Speed 1800 RPM
- Torque 2.19 lb.ft.
- Rotation Reversible
- Bearings Ball
- Enclosure TEFC
- Duty Continuous
- Frame 56C
- Mount Face & base
- Shaft 5/8" x 1-7/8", 3/16" keyway
- Size 5.87"x 11.4" x 7.63"
- Shpg. 30 lbs.
| California Residents |
|
WARNING: Cancer and Reproductive Harm www.P65Warnings.ca.gov |
Product Videos
Custom Field
Prop65 true
Legacy Part Number 10-2573
PDF Page Catalog298-140.pdf
Dimensional Diagram dr10-2573.pdf
Badges regular-stock
Frame 56C
RPM 1750
Rotation Reversible
Voltage 12 Volt DC
