Product Description

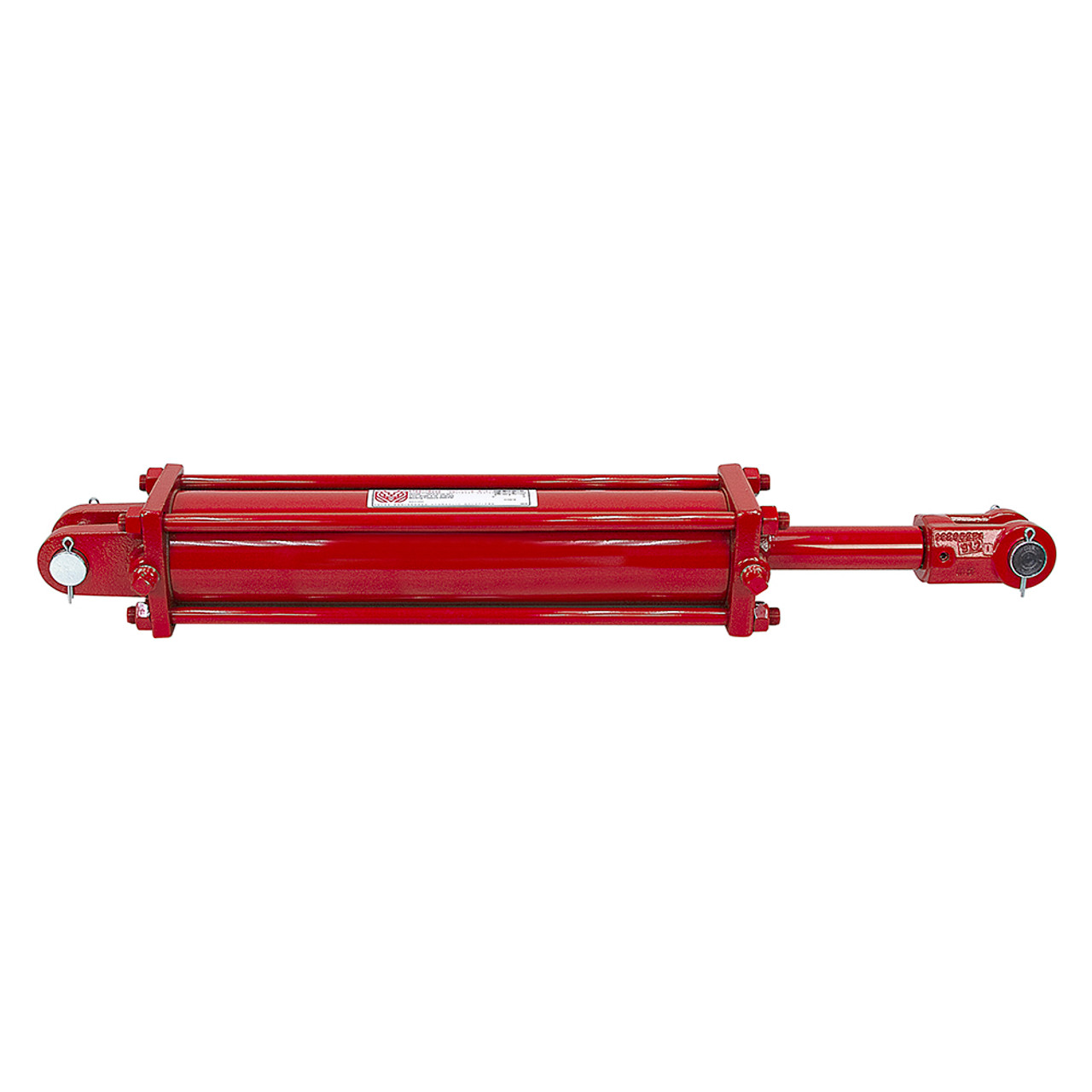

3.5" x 16" x 1.5" DA HYD CYLNew. Double acting hydraulic cylinder. Bailey numbers on cylinder 661288.
| SPECIFICATIONS | |
|
|
| END MOUNTINGS | |
|
|
Product Videos
Custom Field
Legacy Part Number 9-12440
PDF Page Catalog298-62.pdf
Badges surplus-item,last-one

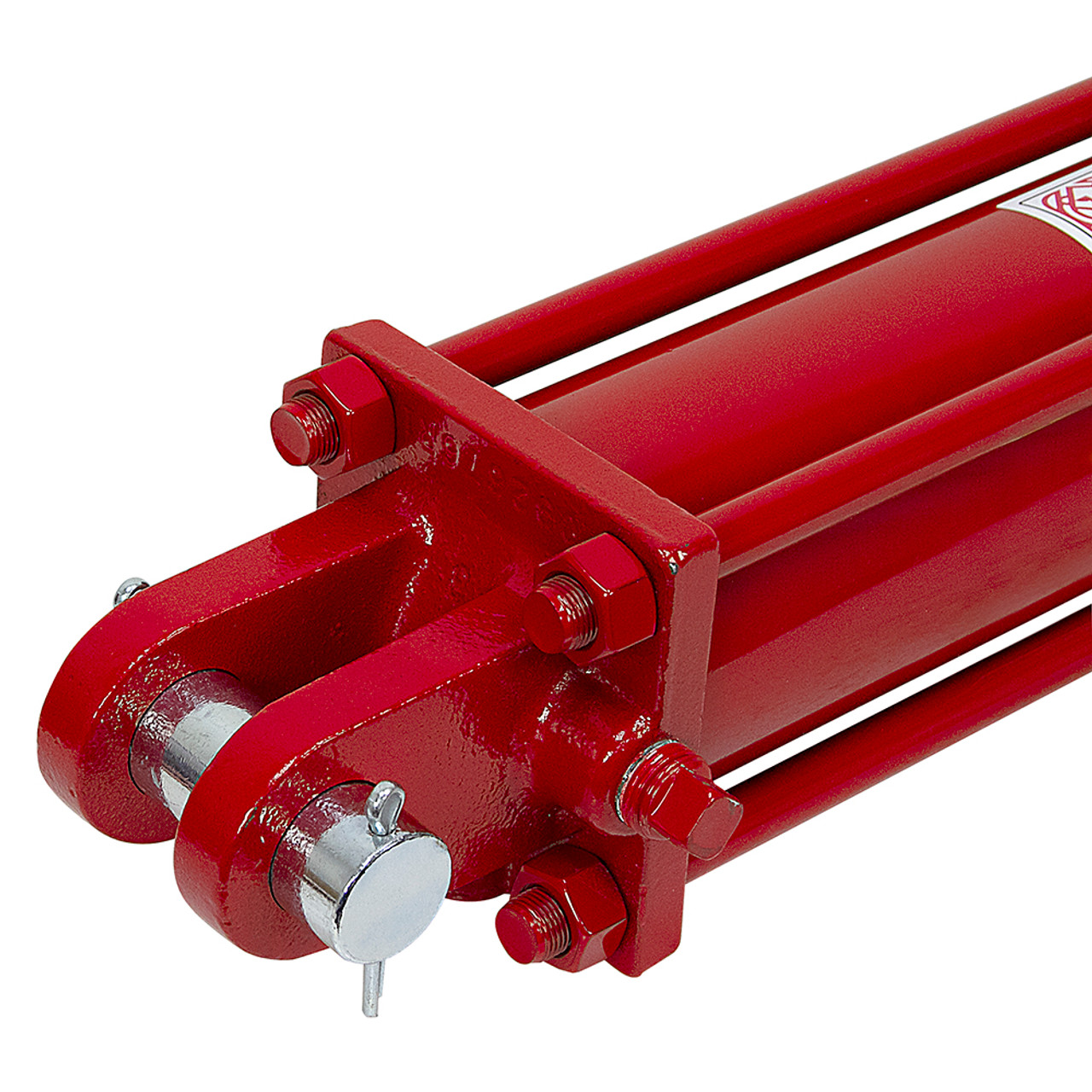

Base End Clevis
Base End Pin Size 1-1/4''
Bore Range1 3'' - 3.9''
Construction Type Tie-Rod
Max PSI Up to 2500 PSI
Ports NPT
Retracted Length 30'' - 35.9''
Rod Dia 1.5''
Rod End Clevis
Rod End Pin Size 1-1/4''
Stroke 16
Stroke Range1 12'' - 17.9''
