Product Description

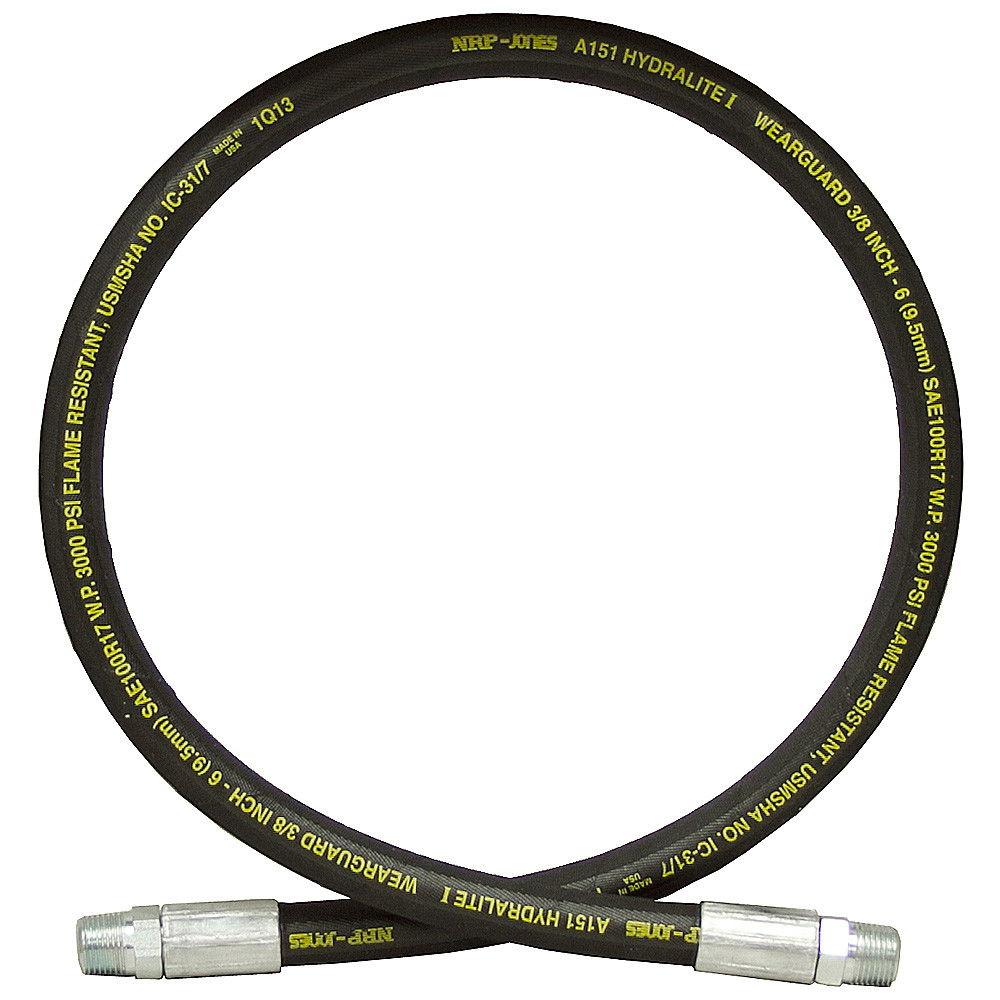

3/8" X 72" 3/8 NPTM X 3/8 NPTM 3000 PSI HYD HOSEBrand new, one-wire braided SAE 100R17 hydraulic hose assembly. Assembled in USA from NRP JONES hose stock and USA-made plated steel fittings. Oil and abrasion resistant Wearguard® neoprene jacket, MSHA approved. Oil resistant nitrile tube. Length measured from end to end.
SPECIFICATIONS
- Hose Type SAE 100R17 HydraLite I, One-Wire Braided
- Overall Length 72"
- Inside Hose Diameter 3/8"
- Outside Jacket Diameter 0.68"
- Fittings 3/8" NPTM
- Minimum Bend Radius 2.50"
- Temperature Range -40° to 250°F
- Working Pressure 3000 PSI
- Burst Pressure 12000 PSI
- Shpg. 2 Lbs.
| California Residents |
|
WARNING: Cancer and Reproductive Harm www.P65Warnings.ca.gov |
Product Videos
Custom Field
Prop65 true
Legacy Part Number 903-3872
PDF Page Catalog298-88.pdf
Badges made-in-usa,regular-stock
Construction One Wire
Diameter1 3/8''
Ends NPT
Length 72''
Length Range 49'' to 84''
