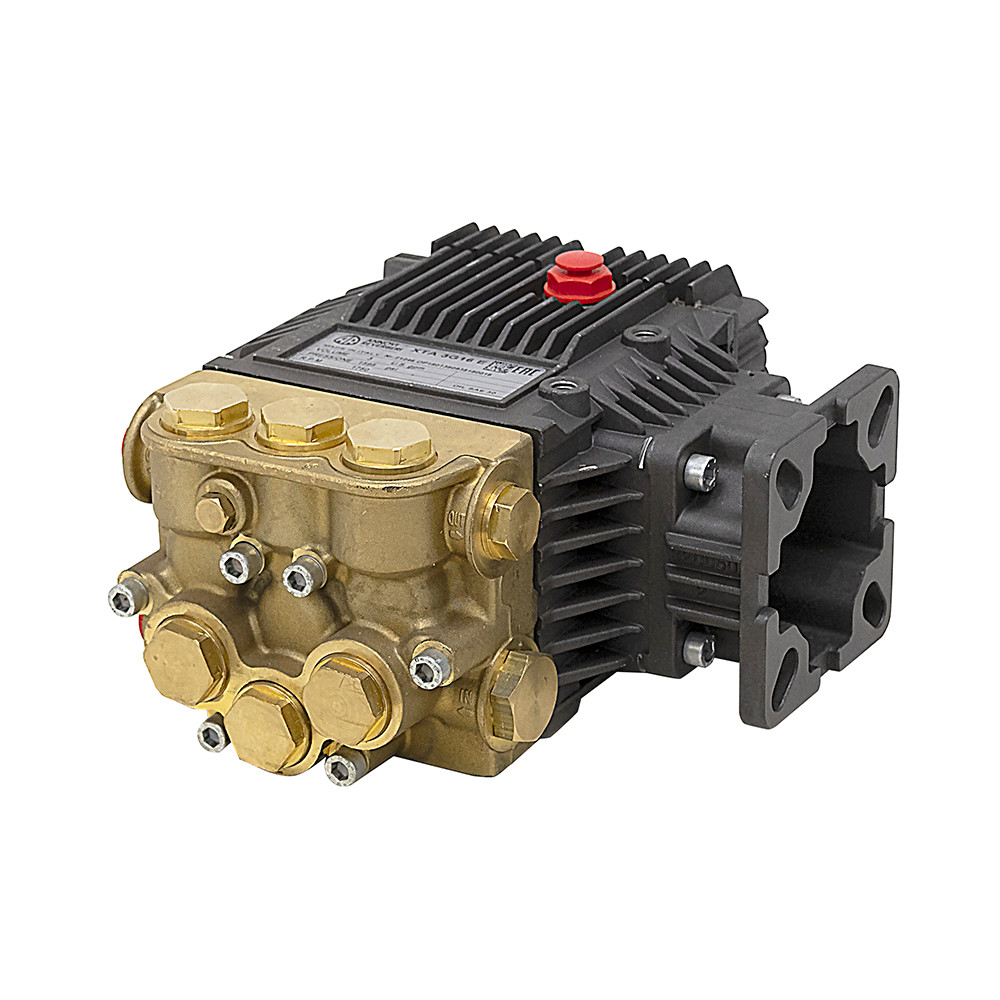

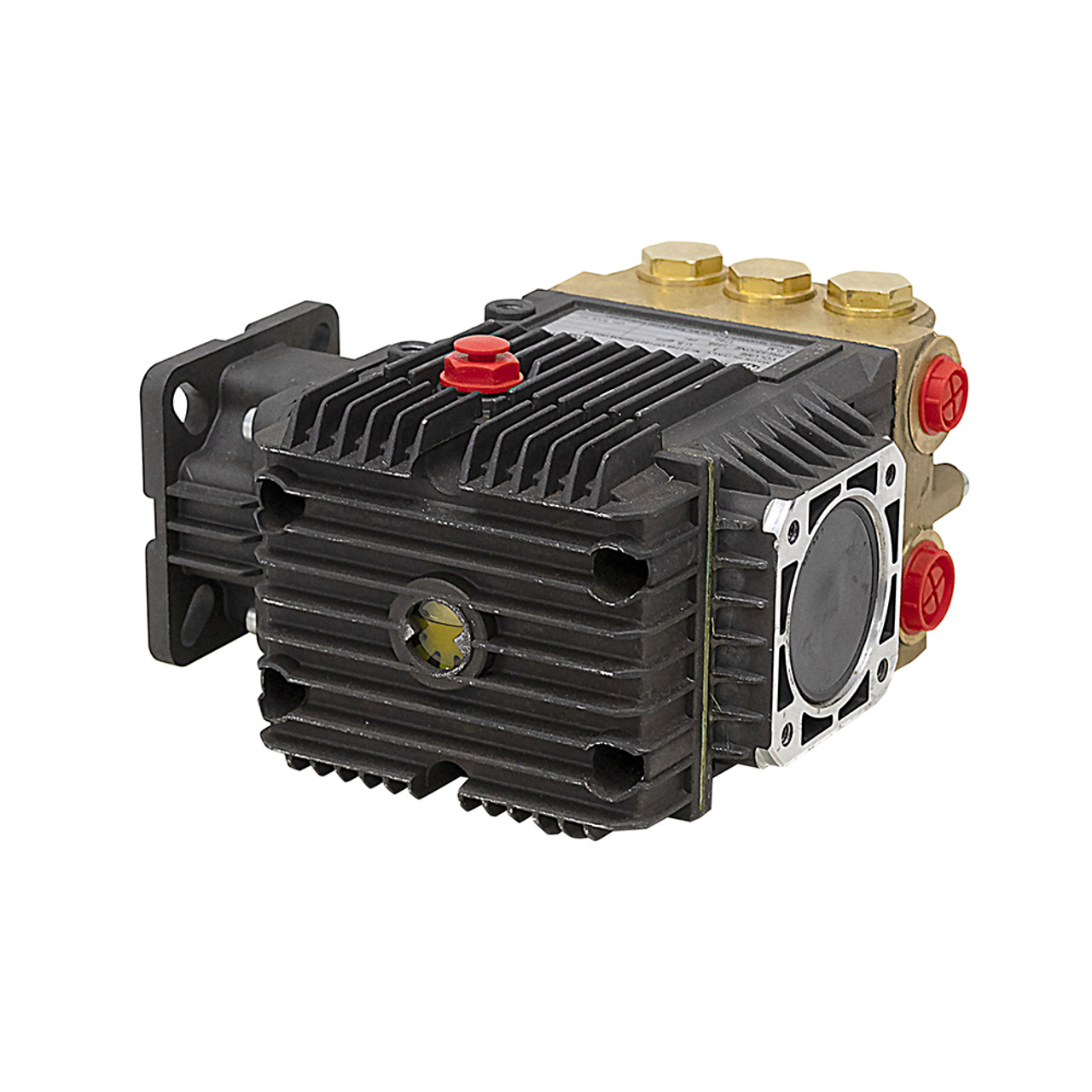

3 GPM 1595 PSI Plunger Pump Annovi Reverberi XTA 3G16 E [200820]

Product Description

3 GPM PLUNGER PUMP
New, Annovi Reverberi XTA 3G16 E plunger pump. Designed for a wide variety of moderate pressure washing applications. They are constructed with die-cast bodies and feature a brass head. Internal components include special thick solid ceramic plungers for long life and durability. Precision cast cooling fins are anodized for maximum heat dissipation. For use with gas engines with 5/8" hollow shaft and flange mount.

SPECIFICATIONS

• ManufacturerAnnovi Reverberi
• Model Number XTA 3G16 E
• Flow 3 GPM
• Pressure 1595 PSI
• RPM 1750
• Required HP 4.5 HP
• Rotation Reversible
• Shaft 5/8" hollow w/keyway
• Flange Mount Four 0.405" slotted holes on 2-1/4" x 2-1/4" centers
• Body Mount Two M8-1.25 tapped holes on 1-7/8" centers and Four M8-1.25 tapped holes on 3-1/8" x 1-7/8" centers
• Inlet Ports 1/2" NPT
• Outlet Ports 3/8" NPT
• Size 7-7/8" x 7-3/8" x 4.5"
• Shpg 17 lbs.
