3 GPM 2200 PSI Plunger Pump Annovi Reverberi XTV 3G22 D [200861]

Product Description

3 GPM PLUNGER PUMP

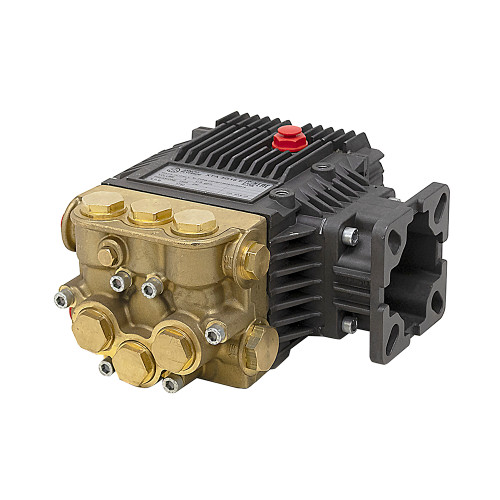

New, Annovi Reverberi XTV 3G22 D plunger pump. Designed for a wide variety of moderate pressure washing applications. They are constructed with die-cast bodies and feature a brass head. Internal components include special thick solid ceramic plungers for long life and durability. Precision cast cooling fins are anodized for maximum heat dissipation. For use with gas engines with 3/4" hollow shaft and flange mount.

SPECIFICATIONS

• Manufacturer Annovi Reverberi
• Model Number XTV 3G22 D
• Flow 3 GPM
• Pressure 2200 PSI
• RPM 3400
• Required HP 4.5 HP
• Rotation Reversible
• Shaft 3/4" hollow w/keyway
• Flange Mount Four 0.405" slotted holes on 2-1/4" x 2-1/4" centers
• Body Mount Two M8-1.25 tapped holes on 1-7/8" centers and Four M8-1.25 tapped holes on 3-1/8" x 1-7/8" centers
• Inlet Ports 1/2" NPT
• Outlet Ports 3/8" NPT
• Size 7-3/8" x 7-5/8" x 4.5"
• Shpg 16 lbs.
