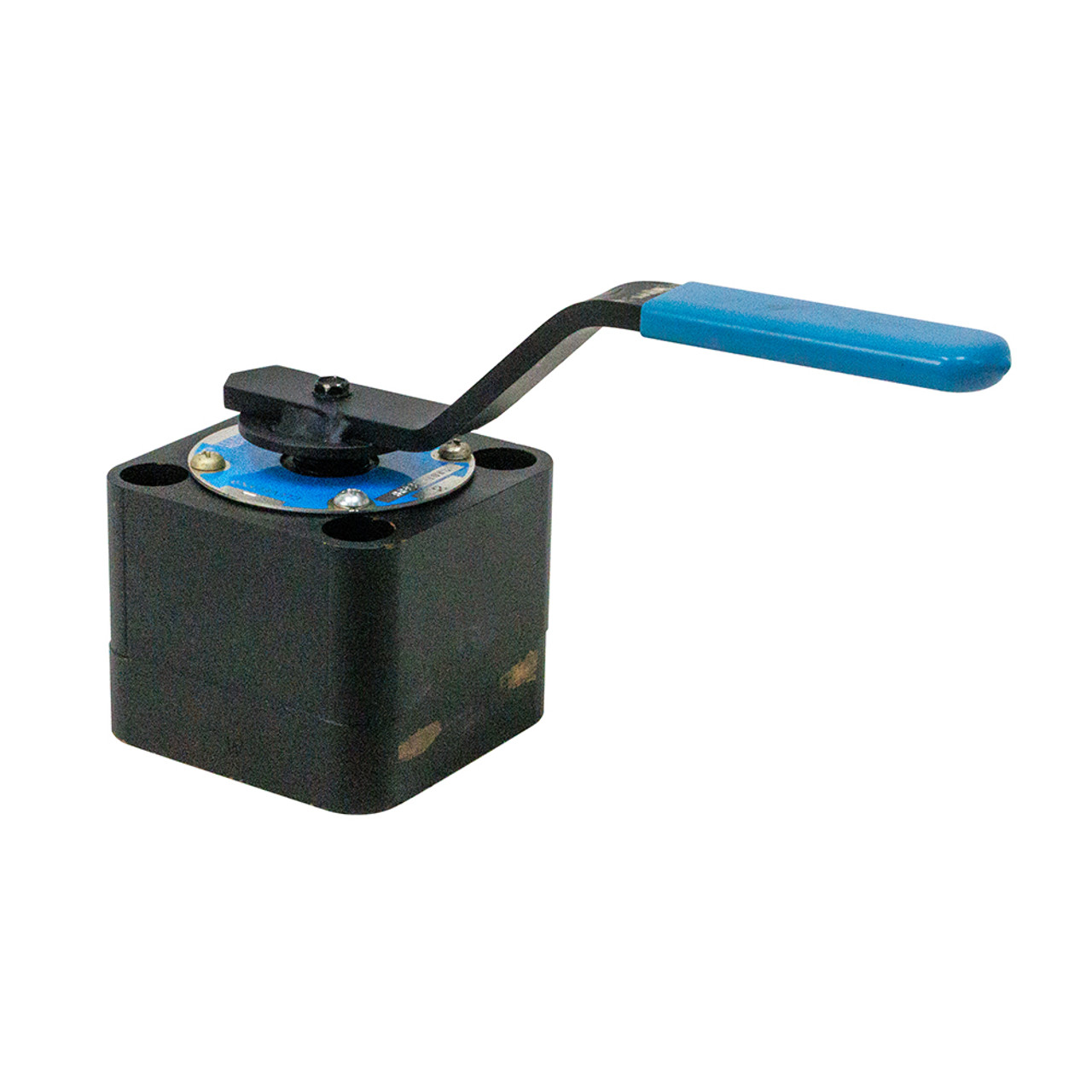

3-Way Manual Directional Control Valve with Sub-Plate Teledyne Republic Manufacturing 8093E-10WS2 [200891]

Product Description

DIRECTIONAL CONTROL VALVE
Old unused inventory, Teledyne Republic Manufacturing 8093E-10WS2 LO-TORQ 3-way manual directional control valve with sub-plate. Designed for accumulator applications. Full flow, noninterflow characteristics, which makes the valve perfect for boom or back-loaded applications. Features low turning torque and high tolerance to contamination.(Surface rust from warehouse storage).

SPECIFICATIONS

• Brand Teledyne Republic Manufacturing
• Valve Model Number 8093E-10WS2
• Series 8000E
• Sub-plate Model Number 822-3-10
• Pressure Rating 3000 PSI
• Porting Sub-plate
• Sub-plate Ports SAE 10
• Body Material Steel
• Temperature Range -65°F to 160°F
• Mounting Four 0.38" dia. thru-holes on 4-3/16" x 2-1/2" centers
• Size 9" x 5-1/2" x 4"
• Shpg 18 lbs.
