3" x 1-1/4" Rigid Plate Caster w/ Cast Iron Wheel WC5030R-01-STL [700569]

Product Description

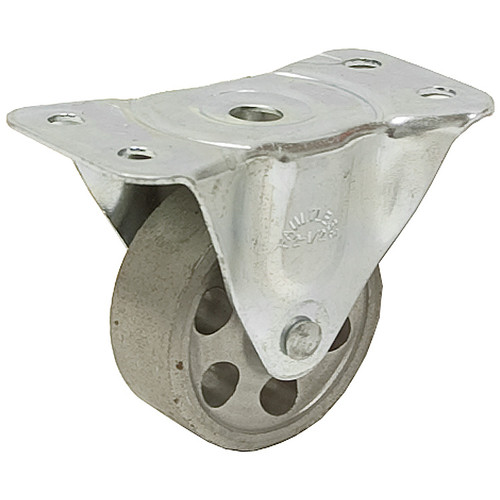

3" x 1-1/4" RIGID PLATE CASTER
Brand new, WC5030R-01-STL rigid plate caster with cast iron wheel. Yoke is stamped and drawn from heavily embossed steel. Case hardened double ball raceways provide extra capacity and durability. 1/2" king pin is hydraulically upset to increase shock absorbing capacity. Wheel made from premium cast iron or otherwise know as semi-steel. Resistant to abrasions or applications that may tear up soft tread wheels. Made for light to medium duty applications.

SPECIFICATIONS

• Model Number WC5030R-01-STL
• Wheel Diameter 3"
• Wheel Width 1-1/4"
• Load Capacity 300 lbs.
• Mounting Height 4"
• Top Plate 3-5/8" x 2-1/2" x 1/8" thick
• Mount Four holes on 1-3/4" x 2-7/8" to 3' centers
• Bolt Holes 5/16" dia.
• Wheel Tread Material Cast iron
• Wheel Tread Color Gray
• Wheel Tread Durometer 130-150 Brinell
• Caster Wheel Bearing Plain
• Wheel Temperature Rating -40ºF to 800ºF
• Shpg. 3 lbs.
