Product Description

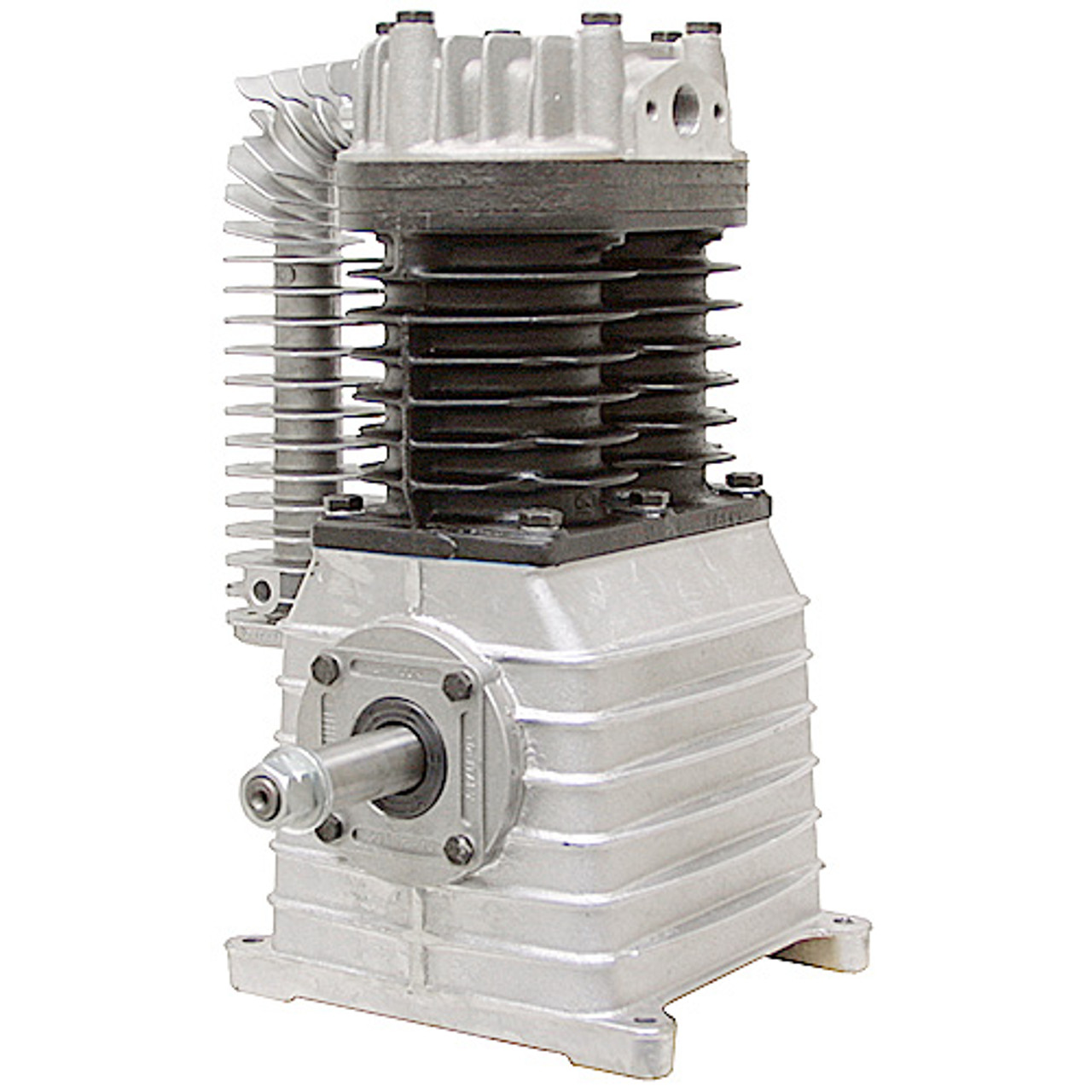

30.16 CFM AIR COMPRESSOR SINGLE STAGE 5 HPBrand new ROL-AIR model K35. Single stage compressor, ideal replacement on portable compressors. Aluminum head and crankcase give good heat dissipation while cast iron cylinder sleeves provide long life.
SPECIFICATIONS
- Cylinders Two
- Stages One
- Flow 30.16 CFM max.
- Pressure 140 PSI max.
- Power Reqd. 5 HP max.
- Speed 800 RPM max.
- Rotation CCW
- Flywheel 15.16" dia.
- Port 3/4" NPT
- Bore/Stroke 3.54" x 2/3.31"
- Oil Capacity 48 oz.
- Mount Base 7.48" x 8.97" centers
- Size 15-3/16" x 14-3/16" x 18-1/2"
- Shpg. 86 lbs.
| California Residents |
|
WARNING: Cancer and Reproductive Harm www.P65Warnings.ca.gov |
Product Videos
Custom Field
Prop65 true
Legacy Part Number 4-1473
PDF Page Catalog298-157.pdf
Dimensional Diagram dr4-1473.pdf
