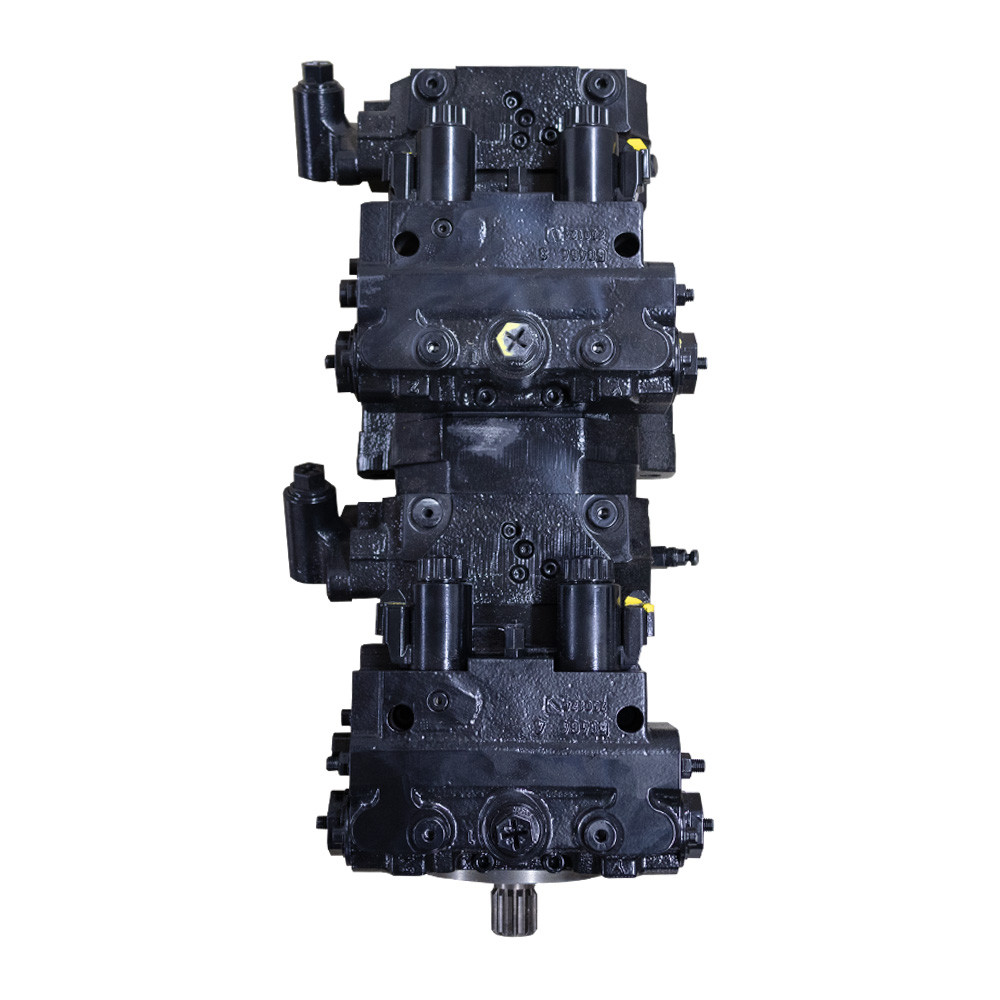

33.38/33.38 cu in Linde HPV55T-02R 2518 Tandem Piston Pump

Product Description

(33.38/33.38) CU IN LINDLE HPV-02 TANDEM VARIABLE DISPLACEMENT AXIAL PISTON PUMP
New Linde HVP55T-02R 2518 tandem variable displacement piston pump with swashplate design for high pressure closed loop systems. Features compact design with high power density, reliability and durability, low noise, and high efficiency. 3/4" 11T to 1" 15T Coupler for rear pump included.

SPECIFICATIONS

• Brand Linde
• Model Number HPV55T-02R 2518 (Tandem Pump Number)

• Front Piston Pump
• Model Number HPV 55-02R 2645
• Series HPV-02
• Displacement 33.38 cu. in./rev. (54.8 cc)
• Pressure
     6526 PSI nominal pressure
     7251 PSI max. pressure
• Speed
     500 RPM min.
     3900 RPM cont.
     4150 RPM max.
• Torque
     162.26 ft-lbs cont. input
     258.15 ft-lbs max. input
• Main Ports (P1,S1) SAE 8
• Feed Port (F1) SAE 16
• Test Port, Pilot Pressure (X1) M14 x 1.5
• Test Ports, High Pressure (Ms1,Mp1) M14 x 1.5
• Drain Ports (L1,U1) M22 x 1.5
• Vent Port (T1) M22 x 1.5
• Pilot Pressure Port (Y1,Z1) M14 x 1.5
• Electric-Hydraulic Control with PCO (Pressure Cut Off)
• Solenoid Voltage 12 volt DC
• Connector Deutsch DT04-2P-EP04

• Rear Piston Pump
• Model Number HPV 55-02R 2646
• Series HPV-02
• Displacement 33.38 cu. in./rev. (54.8 cc)
• Pressure
     6526 PSI nominal pressure
     7251 PSI max. pressure
• Speed
     500 RPM min.
     3900 RPM cont.
     4150 RPM max.
• Torque
     162.26 ft-lbs cont. input
     258.15 ft-lbs max. input
• Main Ports (P2,S2) SAE 8
• Feed Port (F2) SAE 16
• Test Port, Pilot Pressure (X2) M14 x 1.5
• Test Ports, High Pressure (Ms2,Mp2) M14 x 1.5
• Drain Ports (L2,U2) M22 x 1.5
• Vent Port (T2) M22 x 1.5
• Pilot Pressure Port (Y2,Z2) M14 x 1.5
• Electric-Hydraulic Control with PCO (Pressure Cut Off)
• Solenoid Voltage 12 volt DC
• Connector Deutsch DT04-2P-EP04

• Rotation CW
• Mount SAE C, two hole
• Shaft 1.25" dia. 14T splined
• Size 21.92" x 11.14" x 7.95"
• Shpg. 246 lbs.
