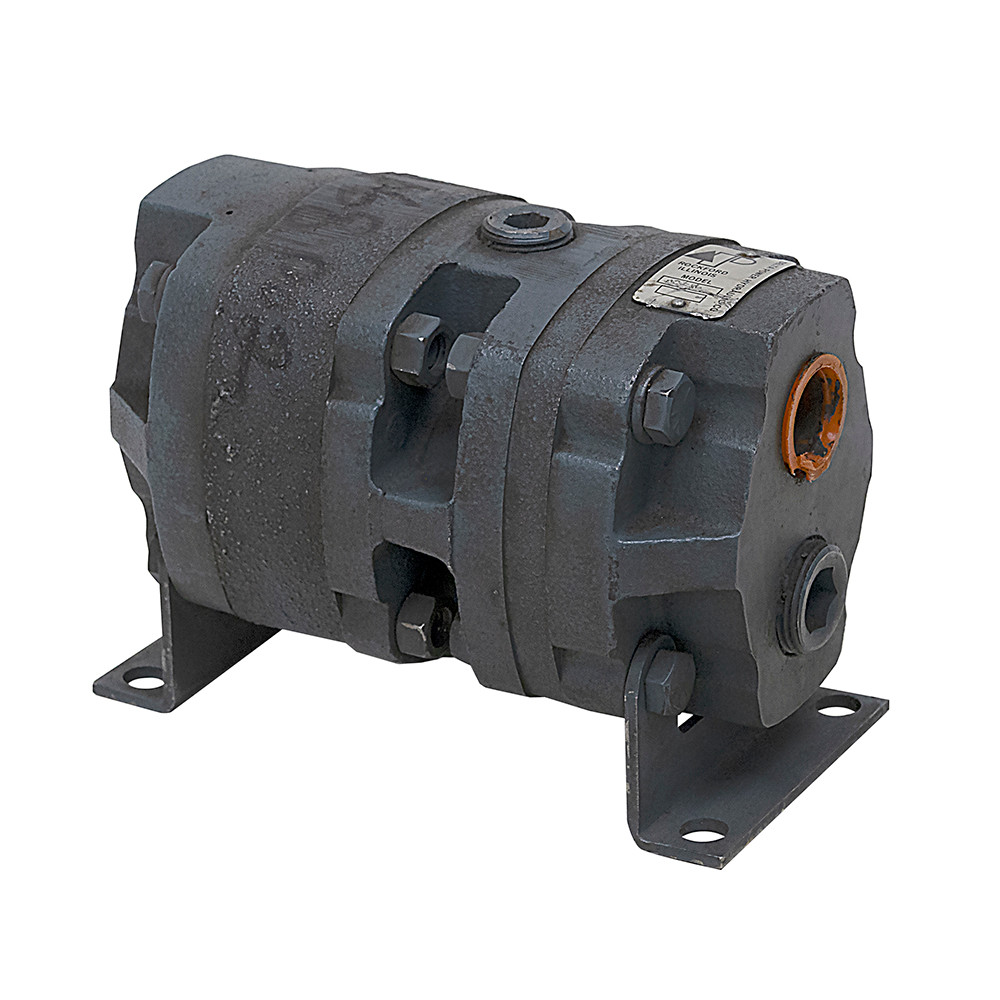

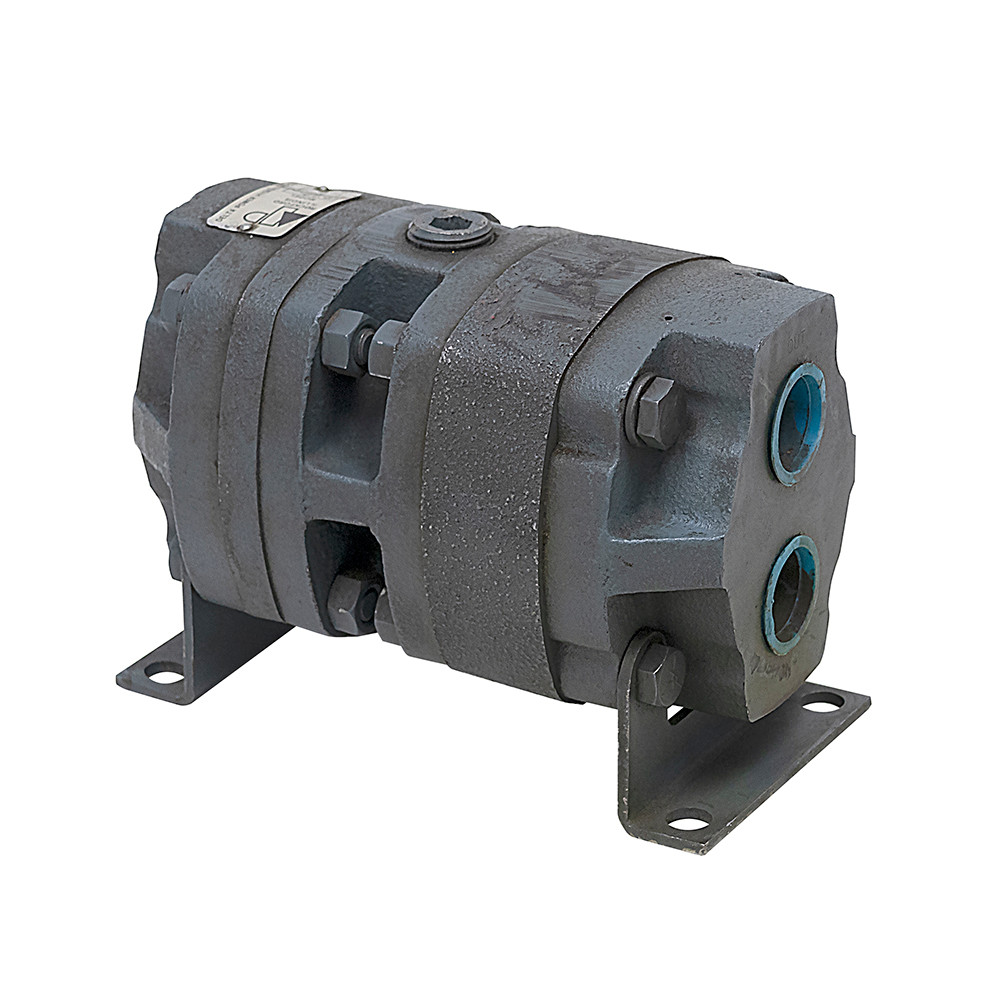

18.5 GPM 2 Section Rotary Flow Divider Delta Power Hydraulic P216 [902709]

Product Description

33:67 ROTARY FLOW DIVIDER
Unused old inventory. Delta Power Hydraulic P216 rotary flow divider. It will divide the flow from one source into two proportionate circuits, and intensify or reduce the pressure level as required. Note that these flow dividers will operate in reverse in a combine mode, but in that mode, the accuracy likely would be significantly reduced.

SPECIFICATIONS

• Brand Delta Power Hydraulic
• Model Number P216
• Flow Division 33:67
• Max. Inlet Flow 18.5 GPM
• Max. Intermittent Pressure 2000 PSI
• Max. Continuous Pressure 1500 PSI
• Max. Speed 3500 RPM
• Min. Speed 500 RPM
• In Port 3/4" NPT
• Out Port 1/2" NPT
• Mount Four 0.44" holes on 2-3/4" x 6" centers
• Size 6-3/4" x 3-1/2" x 5"
• Shpg 21 lbs.
