30 Gallon Hydraulic Reservoir Buyers Products SMR30S [902362]

Product Description

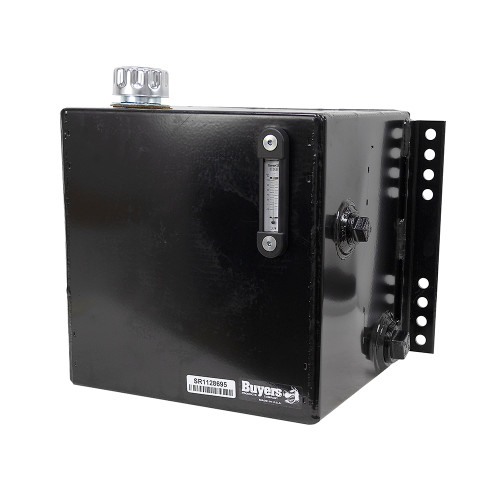

STEEL HYDRAULIC RESERVOIR
Brand new, BUYERS model SMR30S hydraulic reservoir. Constructed of 13 gauge black powder coated steel. 3/4" NPT magnetic drain plug. Quarter-turn chrome breather cap with filler basket. Oil level gauge with temperature indicator. Internally baffled to reduce sloshing and help aid in oil cooling and proper flow. One suction and return port on each side. 3/4" NPT drain on bottom of tank. 1" NPT drain, filler, and 1/4" NPT accessory ports on top of tank. Welded mounting angles can be drilled for custom installation.

SPECIFICATIONS

• Brand Buyers Products
• Model Number SMR30S
• Usable Oil Capacity 30 Gallon
• Ports:
    Suction 2" NPT x two
    Return 1-1/4" NPT x two
    Drain 3/4" NPT x one
    Drain 1" NPT x one
    Accessory 1/4" NPT x one
• Mount
    Welded mounting angles
• Mounting Holes Two sets of four 11/16" mntg. holes on 1-1/4" centers per side
• Size 28-3/8" x 17" x 22"
• Shpg. 92 lbs.
