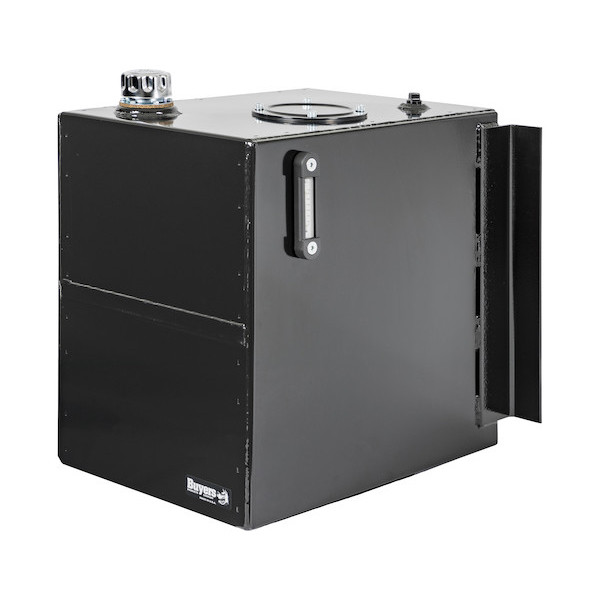

37 Gallon Hydraulic Reservoir Buyers Products SMR37SQ [905299]

Product Description

37 GALLON STEEL HYDRAULIC RESERVOIR

Brand new, BUYERS model SMR37SQ hydraulic reservoir. Constructed of 12 gauge corrosion resistant black powder coated steel. 1/2" NPT magnetic drain plug. Chrome filler breather cap with wire basket strainer. Oil level gauge with temperature indicator. Interior baffle between suction and return ports. Suction and return port on same side.

1/2" NPT magnetic drain plug on bottom, 3/4" NPT load-sensing pump drain port on top. Standard removable clean out cover on the top side. Welded mounting angles can be drilled for custom installation. The reservoir also accepts a tank-mounted HFA5 series return filter on top (filter sold separately), saving you space that would be taken by an external filter.

SPECIFICATIONS

• Manufacturer Buyers Products
• Model Number SMR37SQ
• Oil Capacity 37 Gallon
• Ports:
   Suction 2" NPT x one

   Return 1-1/4" NPT x one

   Load Sensing Drain 3/4" NPT x one (located on top)

   Drain 1/2" NPT x one

• Mount Welded mounting angles
• Mounting Holes None
• Size 24.1" x 22" x 25.94"
• Shpg. 107 lbs.
