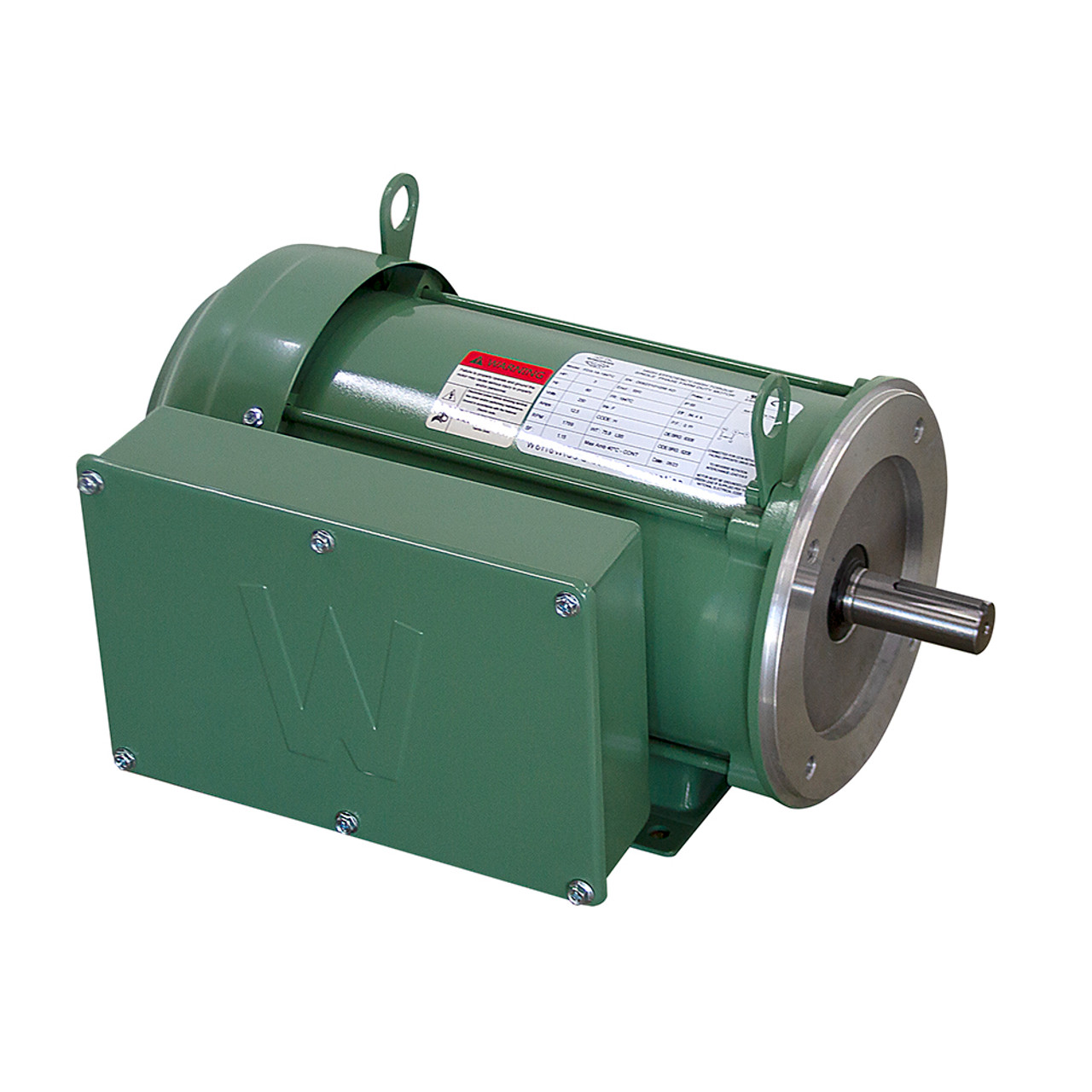

3 HP 208-230 Volt AC 1769 RPM WWE FD3-18-184TC Farm Duty Motor [501560]

Product Description

3 HP 1769 RPM 230 VAC BASE AND FACE MOUNT MOTOR
Brand new, WORLDWIDE FD3-18-184TC, farm duty heavy duty motor for agricultural and other industrial use. Totally Enclosed Fan Cooled (TEFC) enclosures suitable for indoor or outdoor protection. Capacitor start/capacitor run motor for reduced amperage and high torque. Manual thermal overload protection.

SPECIFICATIONS

• Power 3 HP
• Voltage 230 AC
• Phase 1
• Frequency 60 Hz
• Amperage 12.5 Amps
• Speed 1769 RPM
• Rotation Reversible
• Service Factor 1.15
• Bearings Ball
• Thermal Overload Protection Manual
• Enclosure TEFC
• Duty Continuous
• Frame 184TC
• Base Mount Eight 3/8" holes on 1" to 4" to 5" x 7-1/2" centers
• Face Mount Four 1/2"-13 TPI threaded holes in motor face on 7-1/4" B.C., 5-3/4" pilot
• Shaft 1-1/8" dia. x 2-7/8" overall length w/ 1/4" wide x 1-3/4" long keyway
• Size 18" x 12-1/2" x 10-3/4"
• Shpg. 126 lbs.
