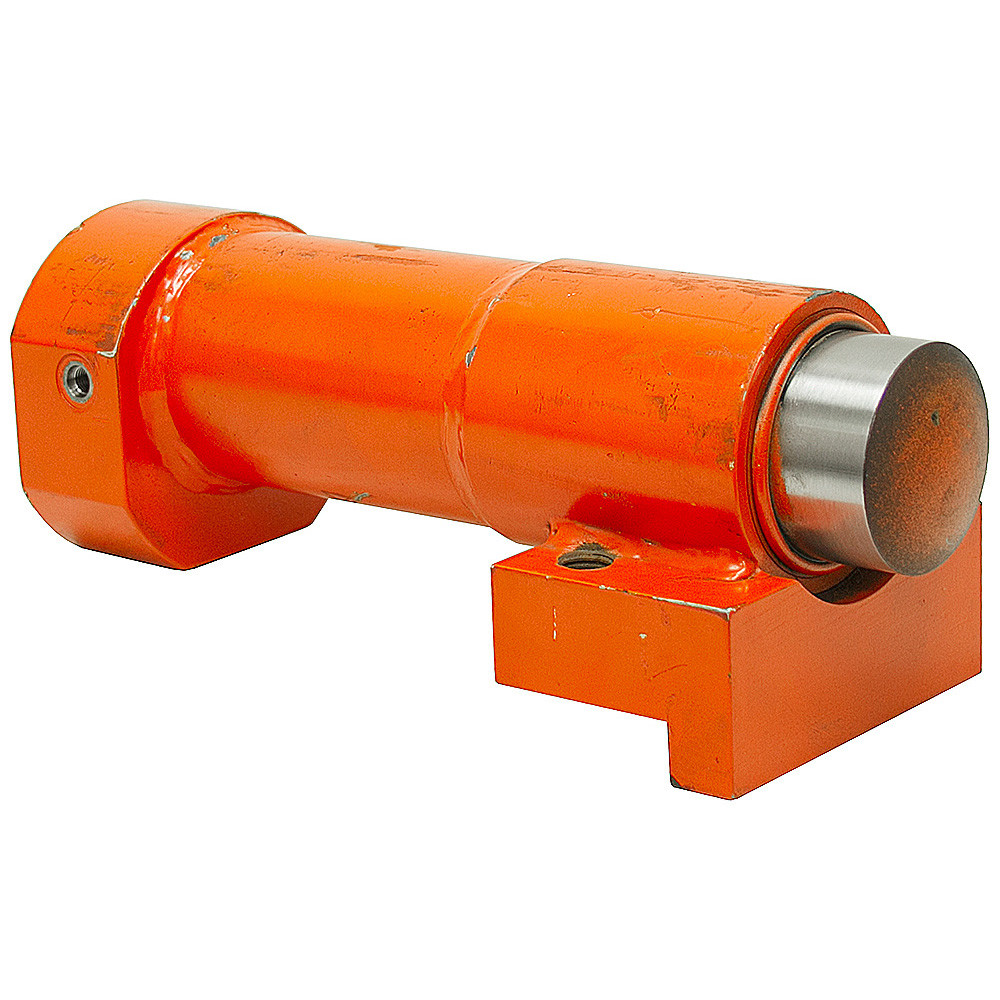

3x8x3 Single Acting Displacement Hydraulic Cylinder [902757]

Product Description

3" x 8" x 3" SA DISPLACEMENT HYDRAULIC CYLINDER
Unused, old inventory. Welded displacement cylinder. Cylinder has no mechanism for retaining rod; rod will extend completely out of the barrel. User must install this cylinder in such a way that the stroke is limited to 8".
Base end of cylinder has two ports, one SUN model CKCB-XCN pilot-to-open check valve and one 3/4"-10 tapped hole in underside. One port is extend/return, other port is pilot port to unlock check valve. Check valve has 3:1 pilot ratio, rated 15 GPM capacity.
L-shaped mounting block welded to rod end of barrel measures 3-7/8" long x 6" wide x 2-1/2" tall, has two 3/4"-10 tapped thru-holes on 4-1/2" centers.
Retracted length measured from end of check valve to end of rod.

SPECIFICATIONS
Single Acting Bore x Stroke 3" x 8" Barrel Thickness 1/4" Pressure 3000 PSI max. Rod Dia. 3"	Cylinder Tube I.D. 3" Ports SAE 4 Retracted Length 15" Shpg. 61 lbs.

END MOUNTINGS
Rod End Rounded Rod	L-Shaped Mounting Block Dimensions 3-7/8" x 6" x 2-1/2" Two Tapped Holes 3/4"-10
