Product Description

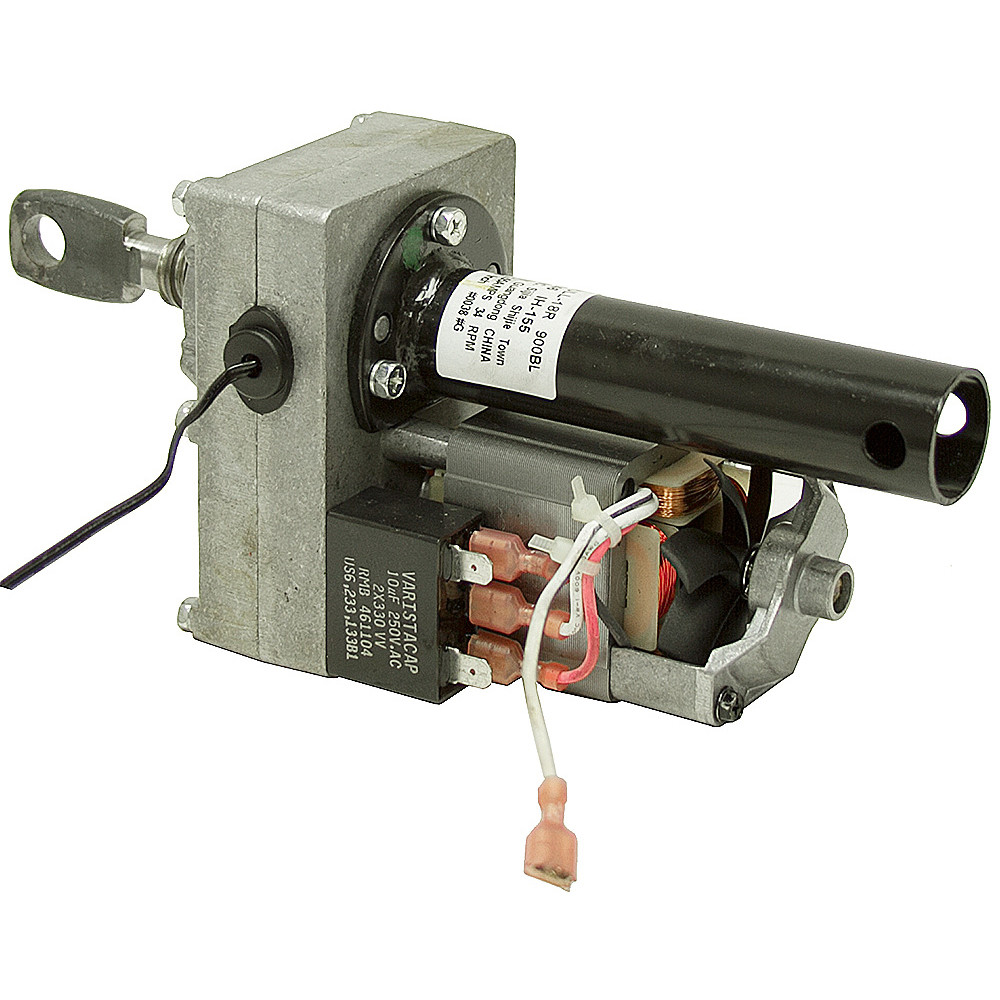

4.36" STROKE 900LB PULL 120 VAC LINEAR ACTUATORNew, Gentech Inc. model# 256411 PULL-18R 900LB linear actuator. Power extend and power retract. Rated to pull up to 900 pounds, extend under no load. Shaded pole motor with open construction and external fan. Hall-effect sensor connected to internal gearing allows for use with position-sensing circuits.
SPECIFICATIONS
- Stroke 4.36"
- Voltage 120 VAC, 60 Hz
- Amperage 1.55 Amps
- Push/Pull Rating
- Dynamic Rated to Pull 900 lb.
- Extension Speed
- No Load 0.09325 in./sec.
- RPM 34 RPM
- Thread 3/4"-6 Acme Thread
- Limit Switches No Limit Switches
- Direction Reversible
- Duty Intermittent
- Retracted length 7-7/8"
- Rod End Pin Hole 3/8"
- Base End Pin Hole 1/2"
- Size 8-3/4" x 4-1/4" x 3-1/8"
- Shpg. 6 lb.
| California Residents |
|
WARNING: Cancer and Reproductive Harm www.P65Warnings.ca.gov |
Product Videos
Custom Field
Prop65 true
Legacy Part Number 5-1853
PDF Page Catalog298-146.pdf
Wiring Diagram w5-1853.pdf
Badges surplus-item,last-one
Load Rating 500 to 999 lbs.
Stroke 4'' to 7.99''
Voltage 120 Volt AC
