Product Description

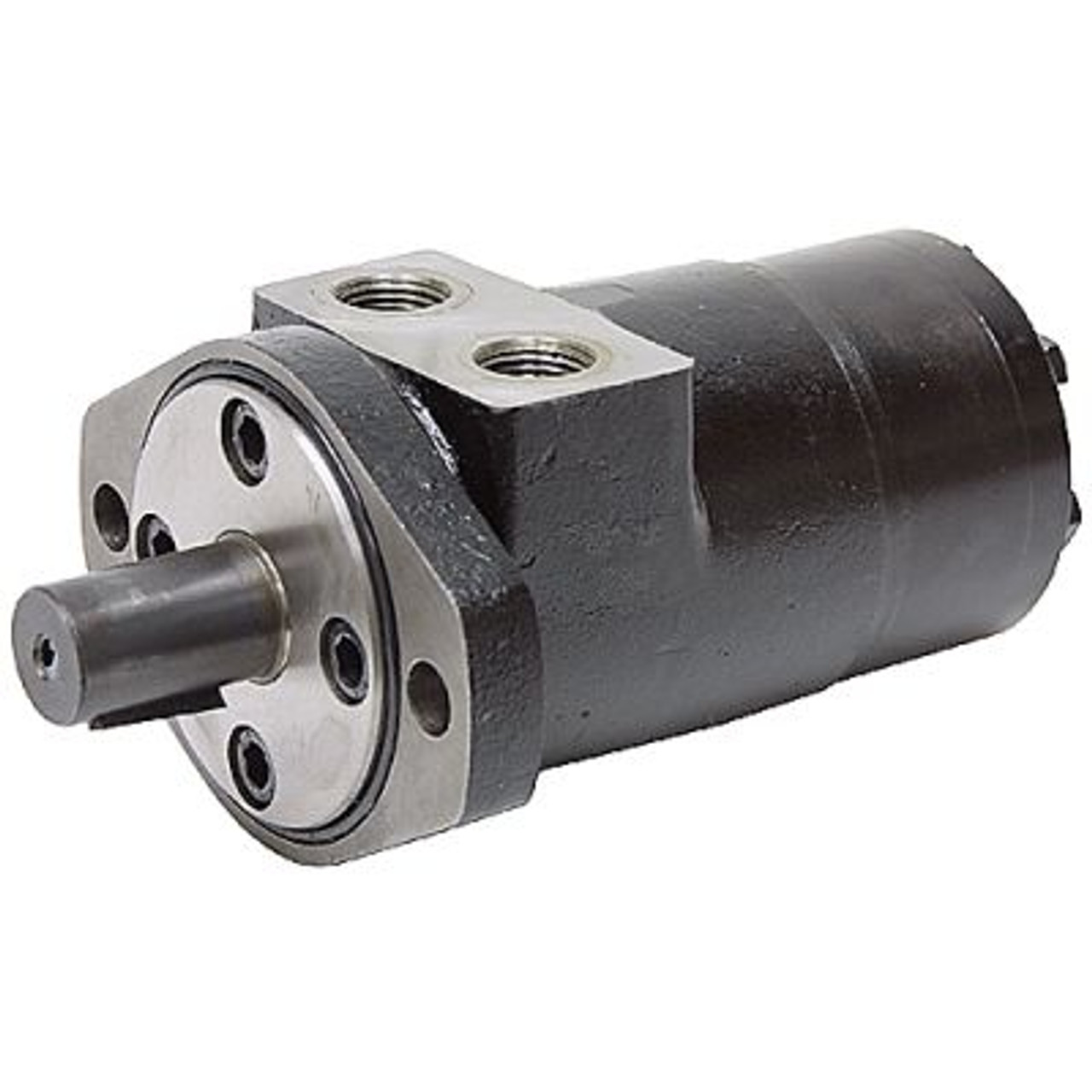

4.74 cu in DYNAMIC BMPH80H2KP HYD MOTORBrand new DYNAMIC BMPH series hydraulic motors. Gerotor power element. Interchangeable with the following motor lines: CHAR-LYNN H, DANFOSS DH, WHITE RS, PARKER - ROSS MG/TB.
SPECIFICATIONS
- Brand Dynamic
- Model Number 61001
- Build Number BMPH-80-H2-K-P
- Disp. 4.74 cu. in. / rev.
- Motor Type Gerotor
- Rotation Reversible
- Pressure:
2031 PSI cont.
2538 PSI int. - Torque:
1292 in-lbs. cont.
1646 in-lbs. int. - Speed:
770 RPM cont.
960 RPM int. - Flow:
15.8 GPM cont.
19.8 GPM int. - Mount 2 bolt SAE A
- Shaft 1" dia. x 1.57" w/1/4" Woodruff key, tapped 1/4-20
- Ports 1/2" NPT
- Case Drain SAE 4
- Size 5-5/8" x 5-3/16" x 3-1/4"
- Shpg. 17 lbs.
| California Residents |
|
WARNING: Cancer and Reproductive Harm www.P65Warnings.ca.gov |
Product Videos
Custom Field
Prop65 true
Legacy Part Number 9-7077-80
PDF Page Catalog298-76.pdf
Badges regular-stock
Displacement 4.75
Displacement Range Up to 4.9 cu in/rev
Mount1 2 bolt SAE A
Ports NPT
Shaft Keyed
