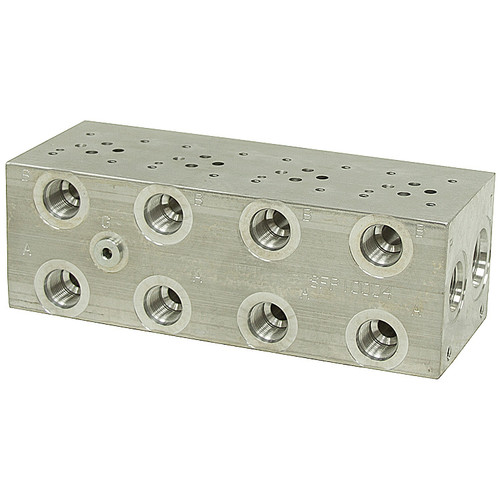

4 Station D03 Parallel Manifold Subplate Damon AD03P0425 [904467]

Product Description

4 STATION DO3 MANIFOLD
New, Daman AD03P042S manifold. Used for mounting directional control valves. Manifolds reduce plumbing, the number of leak points, and improve the appearance and maintenance of the hydraulic system by centralizing the location of the valves. Mounting brackets included.

SPECIFICATIONS

• Brand Daman
• Model Number AD03P042S
• Material 6061-T6 Aluminum
• Style D03
• Stations 4
• Section Spacing 2.13"
• Circuit Parallel
• Pressure Rating 3000 PSI
• In Ports SAE 10
• Work Ports SAE 8
• Gauge Port SAE 6
• Valve Mount Four holes tapped #10-24
• Subplate Mount Two threaded 5/16"-18 TPI holes on each side on 2-3/8" centers
• Size 8-1/2" x 3" x 3"
• Shpg 9 lbs.
