Product Description

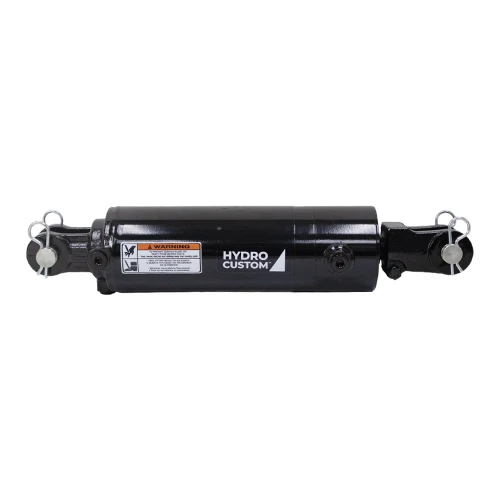

4" x 10" x 1.75" DOUBLE ACTING HYDRAULIC CYLINDER

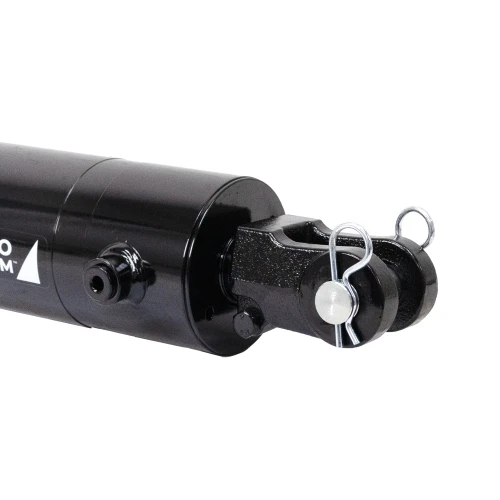

Brand new, Hydro Custom WC series welded cylinder. Combines the durability of a welded cylinder with the serviceability and versatility of a tie-rod. Designed to outperform traditional tie-rod cylinders, this innovative line features an adjustable ductile iron clevis and threaded rods, optional third port location on base-end (for 90-degree use), hard chrome-plated piston rod, larger rod diameters, and Hallite seals.
| SPECIFICATIONS | |
|
|
| END MOUNTINGS | |
|
|
| California Residents |
|
WARNING: Cancer and Reproductive Harm www.P65Warnings.ca.gov |
Product Videos
Custom Field
Prop65 true
Badges regular-stock
Dimensional Diagram dr907246.pdf
Bore Range 4" - 4.9"
Stroke Range 6" - 11.9"
Rod Dia Range 1" - 1.99"
Retracted Length 18" - 23.9"
Construction Type Welded
Max PSI 2500 PSI and Over
Rod End Clevis
Base End Clevis
Rod End Pin Size 1" - 1.99"
Base End Pin Size 1" - 1.99"
Stroke 10"
Ports SAE
