Product Description

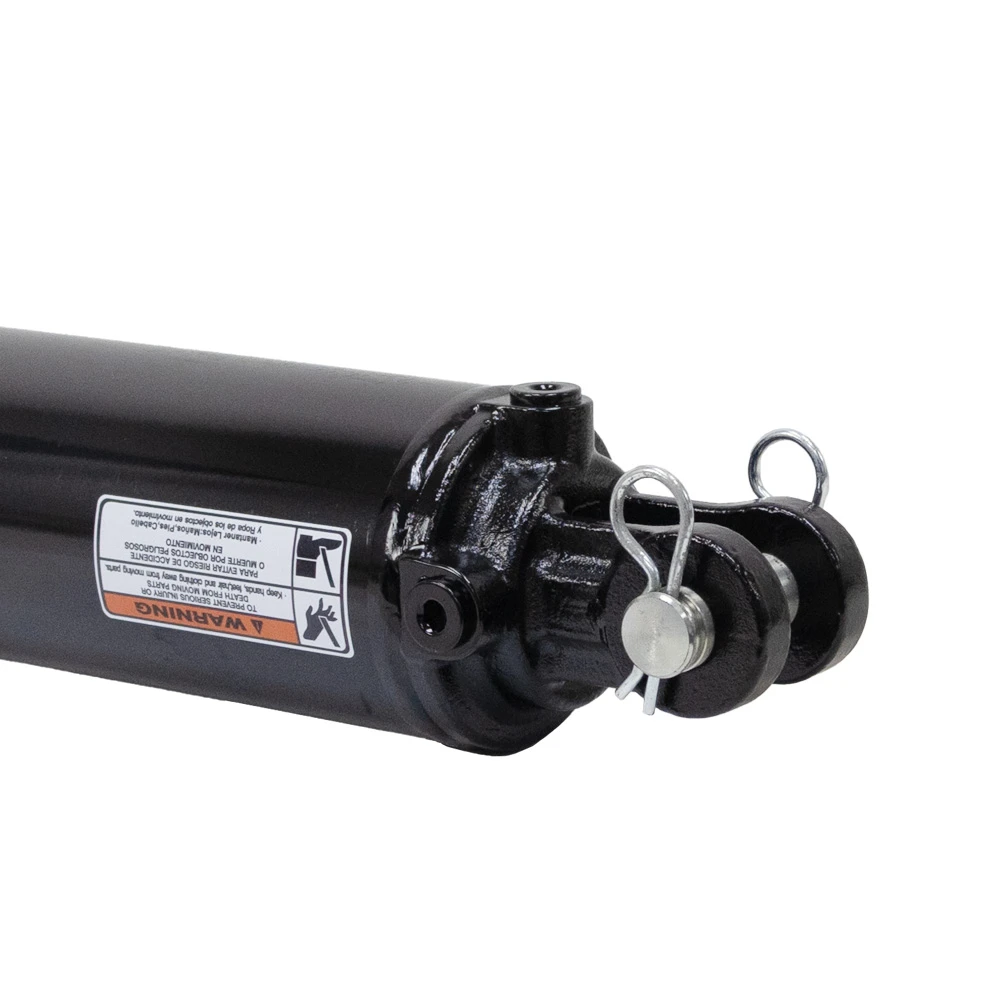

4" x 48" x 2" DOUBLE ACTING HYDRAULIC CYLINDER
Brand new, Hydro Custom WC series welded cylinder. Combines the durability of a welded cylinder with the serviceability and versatility of a tie-rod. Designed to outperform traditional tie-rod cylinders, this innovative line features an adjustable ductile iron clevis and threaded rods, optional third port location on base-end (for 90-degree use), hard chrome-plated piston rod, larger rod diameters, and Hallite seals.
| SPECIFICATIONS | |
|
|
| END MOUNTINGS | |
|
|
| California Residents |
|
WARNING: Cancer and Reproductive Harm www.P65Warnings.ca.gov |
Product Videos
Custom Field
Prop65 true
Badges regular-stock
Dimensional Diagram dr907259.pdf
Bore Range 4" - 4.9"
Stroke Range 48" - 59.9"
Rod Dia Range 2" - 2.99"
Retracted Length 48" - 59.9"
Construction Type Welded
Max PSI 2500 PSI and Over
Rod End Clevis
Base End Clevis
Rod End Pin Size 1" - 1.99"
Base End Pin Size 1" - 1.99"
Stroke 48"
Ports SAE
