Product Description

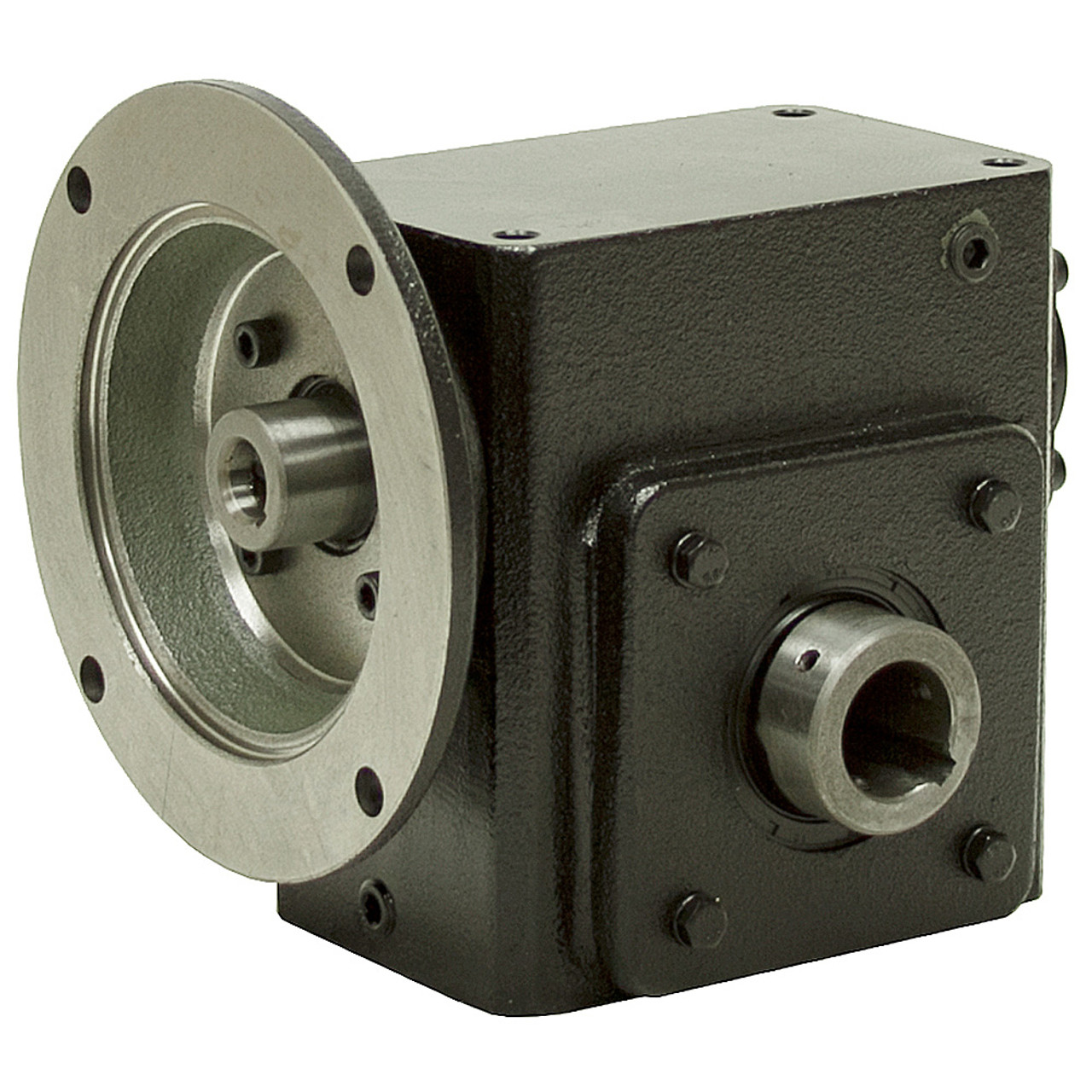

40:1 GEAR REDUCERBrand new, WORLDWIDE ELECTRIC right-angle worm gear reducer. Standard NEMA-C motor mounting flange. Cast iron housing. Four tapped mounting holes on top and bottom of case. Shipped filled with oil.
SPECIFICATIONS
- Ratio 40:1
- Input Power 1.45 HP max.
- Input Speed 1725 RPM max.
- Output Speed 44 RPM max.
- Output Torque 1483 in-lb. max.
- Output Centerline Height 2.5"
- Overhung Load 684 lbs.
- Motor Mount 56C
- Input Bore 5/8" keyed
- Output Type Hollow Bore
- Output Hollow Bore 1-1/4" dia. x 6-7/16" keyed thru-length
- Mount 5" x 2-7/8" centers
- Size 8-3/4" x 6-1/2" x 8-5/8"
- Shpg. 40 lbs.
| California Residents |
|
WARNING: Cancer and Reproductive Harm www.P65Warnings.ca.gov |
Product Videos
Custom Field
Prop65 true
Legacy Part Number 13-237-40-H-56C
PDF Page Catalog298-109.pdf
Badges regular-stock
Motor Mount 56C
Output Shaft Hollow
Ratio 40:1
